SH57BYG Stepper Motors - For Carving/Stage/Medical/Industrial Equipment

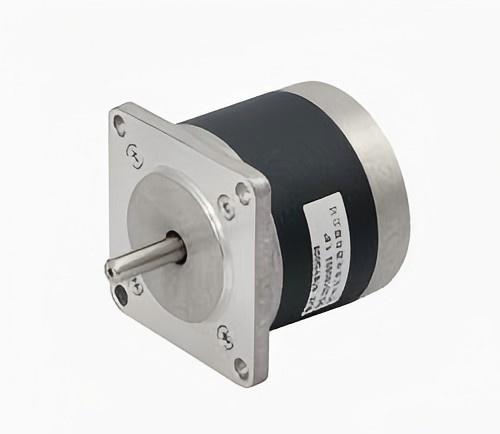

SH57BYG stepper motors (SH57BYG007-SH57BYG707) have 1.8° step angle, -20℃~+55℃ ambient temp, 500V DC 100MΩ MIN insulation (Class B). Voltage 2.4-12V, current 0.38-3A, holding torque 2.94-14 Kg.cm, length 41-76mm, weight 0.45-1.0Kg, ideal for multi-sector high-torque applications.

Model:
SH57BYG Stepper Motors
Brand:
SHINE
Code:
20221206


Availability:



Inquiry

Product Description

Key Attributes of SH57BYG Stepper Motors

SH57BYG series stepper motors (prefixed with "SH": SH57BYG007, SH57BYG061, SH57BYG008, SH57BYG060, SH57BYG009, SH57BYG096, SH57BYG070, SH57BYG707) are engineered for high torque and precision. All models have a 1.8° step angle, ensuring accurate positioning, which is vital for equipment requiring stable motion control.

With Class B insulation and 500V DC 100MΩ MIN insulation resistance, they safely operate in environments from -20℃ to +55℃, adapting to various working conditions. Their diverse specs (length 41-76mm, weight 0.45-1.0Kg) fit different installation needs. Below is the detailed parameter table:

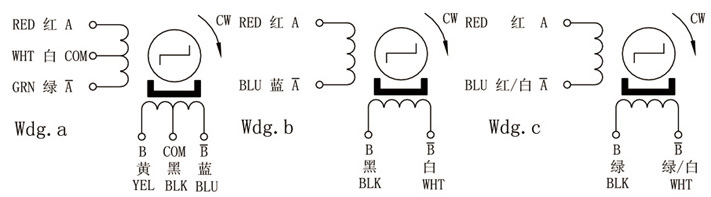

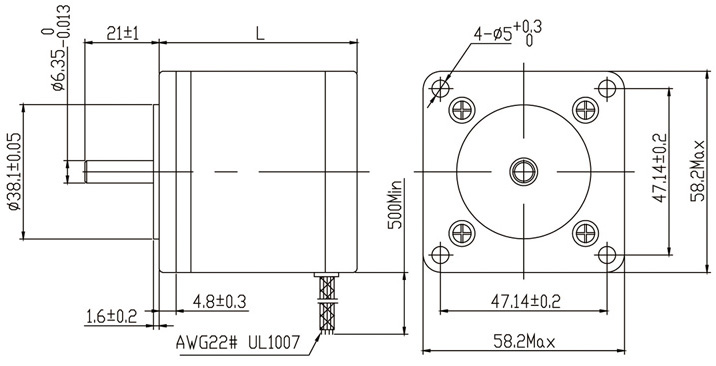

Model	Voltage (V)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding torque (Kg.cm)	Detent torque (Kg.cm)	Rotor Inetia (g.cm²)	Wdg	Length (mm)	Weight (Kg)
SH57BYG007	12	0.38	32	30	2.94	0.18	60	a	41	0.45
SH57BYG061	6	0.5	12	24	3.5	0.18	60	b	41	0.45
SH57BYG008	4	1.3	3.1	4.4	4.9	0.35	118	a	51	0.6
SH57BYG060	2.6	2	1.3	3	6.1	0.35	118	c	51	0.6
SH57BYG009	2.4	2.4	1	1.5	5.9	0.42	145	a	56	0.65
SH57BYG096	2.7	3	0.9	1.3	8.5	0.42	145	b	56	0.65
SH57BYG070	5.4	1.5	3.6	6	8.8	0.72	230	a	76	1.0
SH57BYG707	4.1	2.3	1.8	6.5	14	0.72	230	b	76	1.0

These motors combine high torque and durability, suitable for high-demand motion control systems.

Application

Practical Uses of SH57BYG Stepper Motors

SH57BYG series stepper motors are widely applied in four key fields: carving machines, stage illumination lamps, medical instruments, and industrial automation. In carving machines, their strong holding torque (2.94-14 Kg.cm) ensures stable cutting and engraving, delivering precise patterns.

For stage illumination lamps, the 1.8° step angle enables accurate angle adjustment of lights, creating diverse stage lighting effects. In medical instruments (such as large diagnostic equipment), their reliable insulation (Class B) and wide temperature adaptability (-20℃~+55℃) guarantee stable performance during long-term operations, critical for medical accuracy.

In industrial automation (e.g., heavy-duty robotic arms), the motors’ high current tolerance (0.38-3A) and appropriate electrical specs meet the demands of high-load, continuous operations. With varying sizes (41-76mm length), they fit different industrial setups, making them a versatile choice across sectors.
