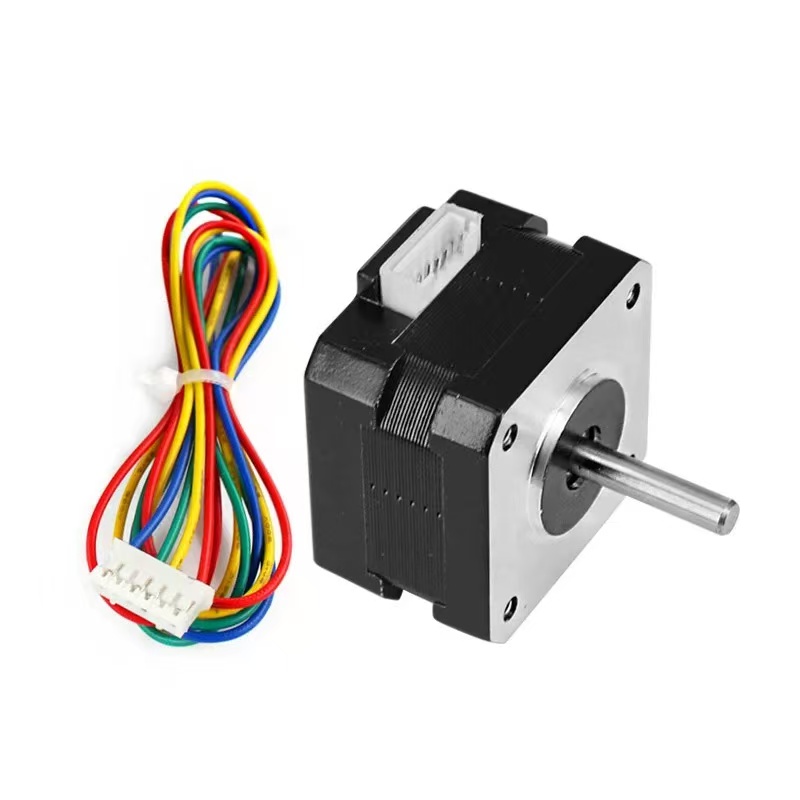

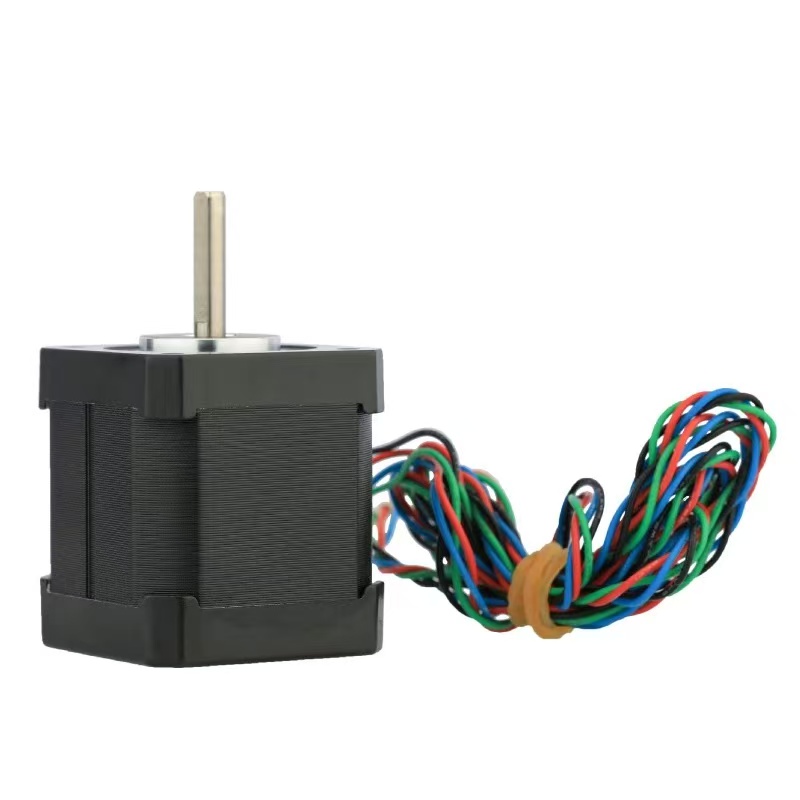

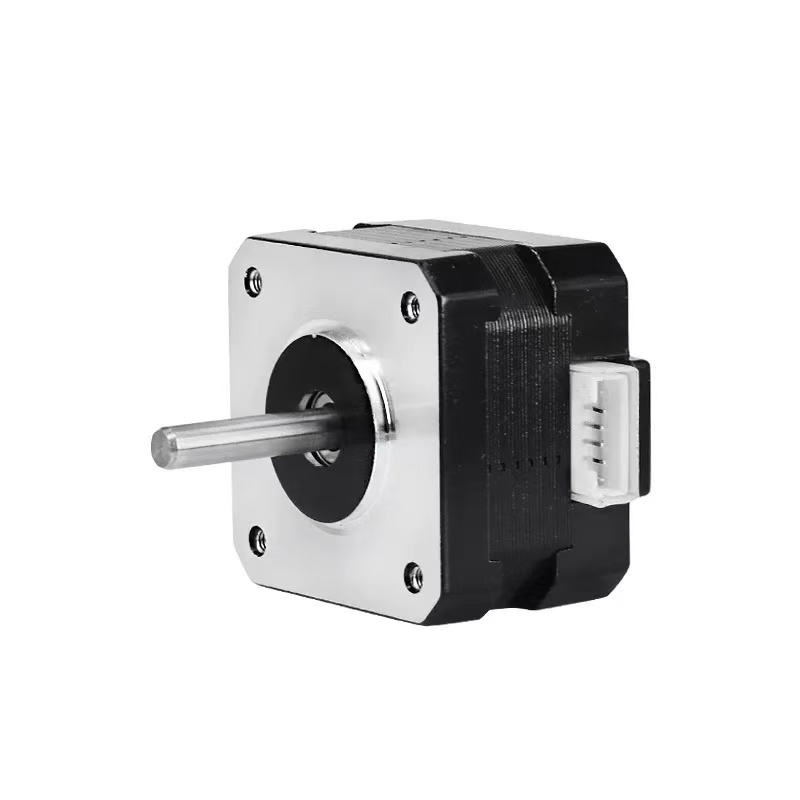

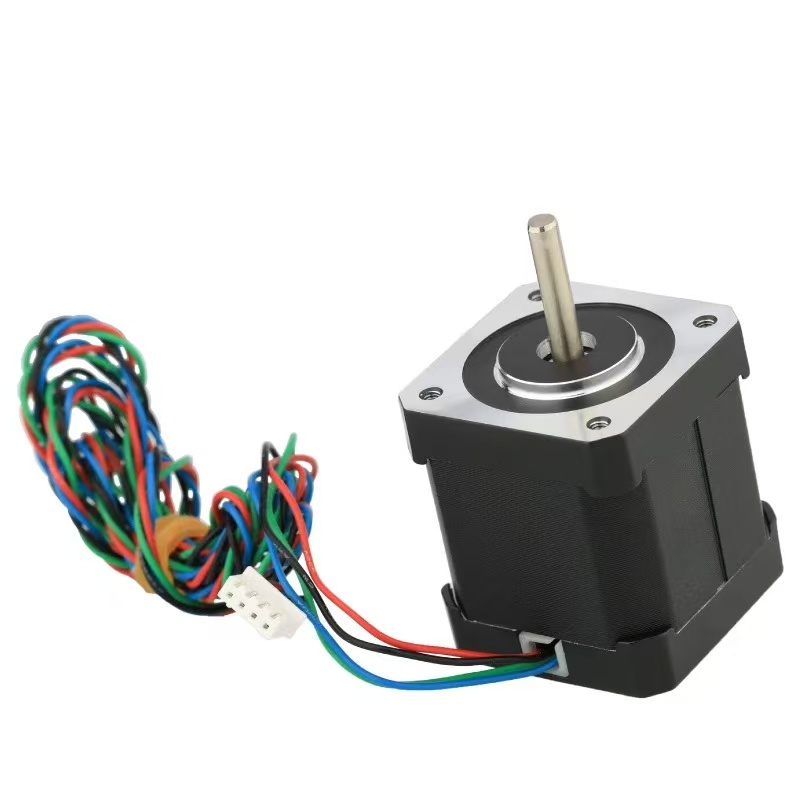

NEMA 17 42SHD Series Hybrid Stepper Motor - 1.8° Step Angle 0.25-2.1A Current

Motor Series: NEMA 17 42SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/6/8-pin leads, 28-61mm length, 0.18-0.5kg weight
Electrical Params: 0.25-2.1A rated current, 1.89-20V voltage, 0.9-80Ω phase resistance
Performance: 22-83N·cm holding torque, 23-115g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 42SH028DF250X-01/42SH034DF130X-01 (11 models total)

Model:
NEMA 17 42SHD
Brand:
SHINE
Code:
20221173


Availability:



Inquiry

Product Description

Overview of NEMA 17 42SHD Hybrid Stepper Motor

The 42SHD Series is an industrial-grade NEMA 17 hybrid stepper motor (42mm size matches NEMA 17 standard) designed for high-torque precision applications. With a 1.8° step angle ensuring stable positioning, it offers 11 length variants (28-61mm) and 22-83N·cm torque to handle light-to-heavy load demands.

Key Features & Adaptability

Constructed with high-grade permanent magnets and precision components, it supports 4/6/8-pin configurations for versatile driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 0.18-0.5kg design balances power and maneuverability. It adapts to 0.25-2.1A current and 1.89-20V voltage, maintaining consistent performance across -10°C~50°C temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
42SH028DF250X-01	28	1.8°	2.5	1.2	3	24	4	23	0.18
42SH034DF130X-01	34	1.8°	1.3	1.7	2.21	40	4	38	0.25
42SH040DF090X-01	40	1.8°	0.9	2.1	1.89	36	4	58	0.3
42SH044DF80JX-01	44	1.8°	80	0.25	20	40	4	75	0.34
42SH045DS650X-01	45	1.8°	6.5	0.5	3.25	25	6	79	0.34
42SH046DF330X-01	46	1.8°	3.3	1.7	5.61	50	4	82	0.36
42SH048DF120X-01	48	1.8°	1.2	1.7	2.04	22	4	85	0.38
42SH050DF230X-01	50	1.8°	2.3	1.2	2.76	40	4	88	0.4
42SH058DF220X-01	58	1.8°	2.2	1.7	3.74	67	4	112	0.48
42SH060DE840X-01	60	1.8°	8.4	1	8.4	70	8	115	0.5
42SH061DF460X-01	61	1.8°	4.6	1.3	5.98	83	4	115	0.5

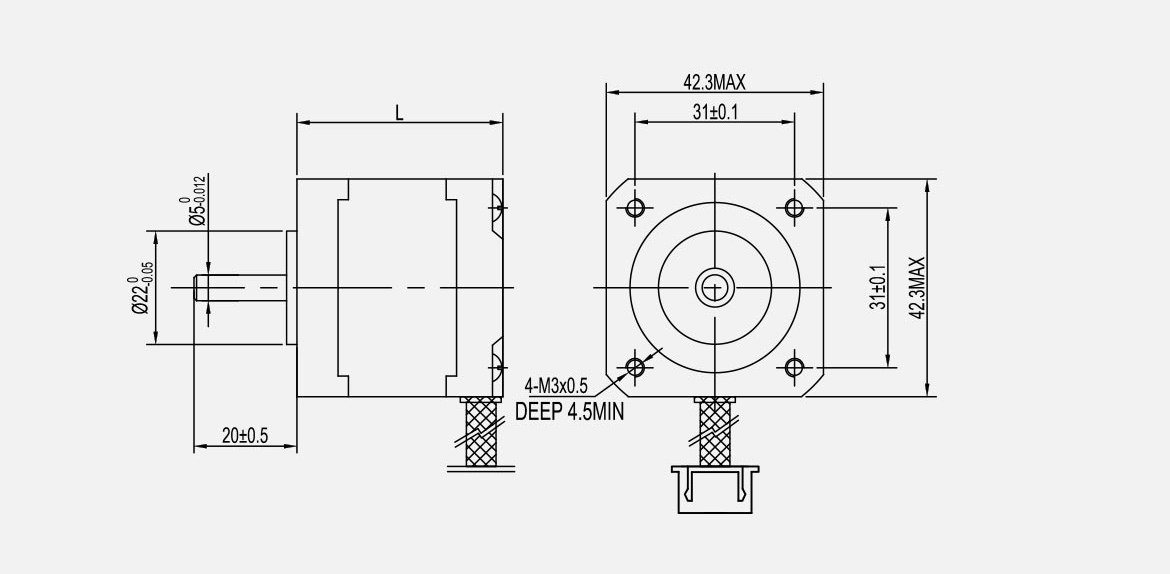

Drawing

42hsd

Application

Industrial Automation

Ideal for conveyors, automated assembly lines, and precision positioning systems. Its 22-83N·cm torque and NEMA 17 compatibility suit factory floors with heavy-load requirements.

Robotics & CNC Machinery

Fits medium robotic arms, small CNC routers, and 3D carving machines. 4/6/8-pin flexibility and high torque support smooth, powerful motion for intricate industrial tasks.

Heavy-Duty Electronics

Used in high-precision 3D printers, laser cutters, and automated testing equipment. IP40 protection and stable temp adaptability ensure reliability in continuous-operation scenarios.
