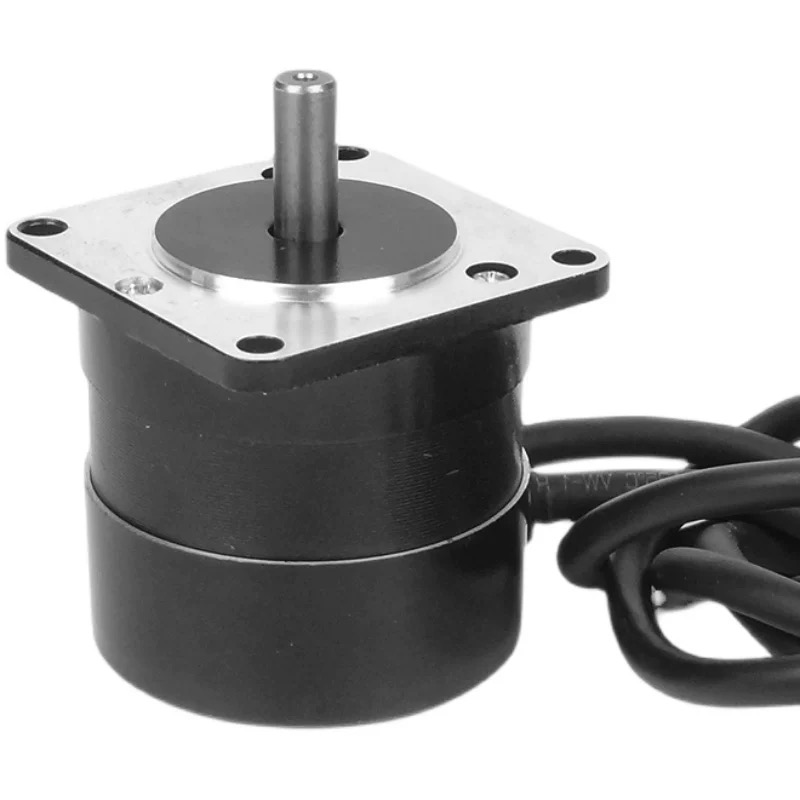

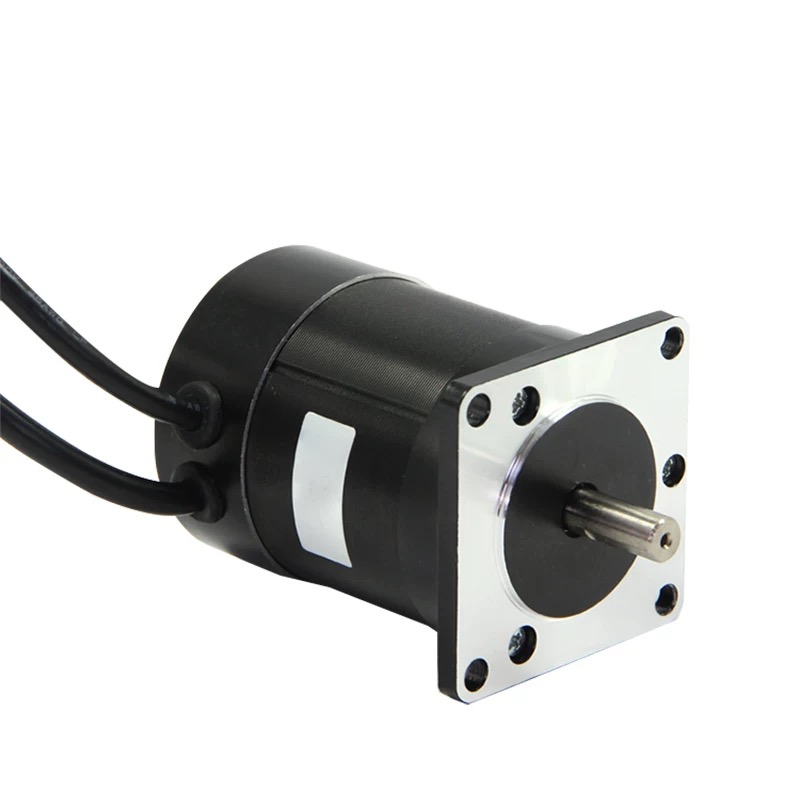

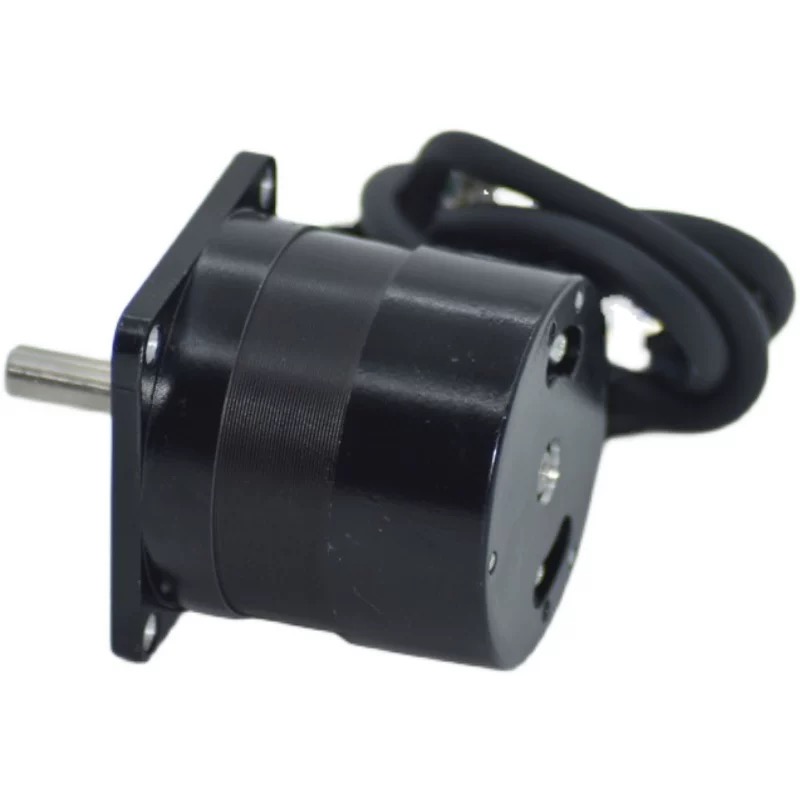

NEMA 34 86SHYD Series Hybrid Stepper Motor - 1.8° Step Angle 2-6.8A Current

Motor Series: NEMA 34 86SHYD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/8-pin leads, 64-129mm length, 1.5-3.6kg weight
Electrical Params: 2-6.8A rated current, 1.36-5.4V voltage, 0.2-2.7Ω phase resistance
Performance: 160-480N·cm holding torque, 570-2100g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 86SHY064DF100X-01/86SHY075DF020X-01 (5 models total)

Model:
NEMA 34 86SHYD
Brand:
SHINE
Code:
20221180


Availability:



Inquiry

Product Description

Overview of NEMA 34 86SHYD Hybrid Stepper Motor

The 86SHYD Series is a heavy-duty NEMA 34 hybrid stepper motor engineered for industrial-grade power and reliability. With a 1.8° step angle ensuring stable positioning, it offers 5 length variants (64-129mm) and 160-480N·cm torque to handle mid-to-heavy load demands, from CNC machining to large-scale automation equipment.

Key Features & Reliability

Constructed with high-strength permanent magnets and rugged precision components, it supports 4/8-pin configurations for versatile driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 1.5-3.6kg robust design ensures structural stability under high loads. It adapts to 2-6.8A current and 1.36-5.4V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
86SHY064DF100X-01	64	1.8°	1	2.5	2.5	180	4	570	1.5
86SHY075DF020X-01	75	1.8°	0.2	6.8	1.36	160	4	800	1.9
86SHY092DE270X-01	92	1.8°	2.7	2	5.4	350	8	1200	2.6
86SHY112DE080X-01	122	1.8°	0.8	4	3.2	450	8	1750	3.2
86SHY129DE070X-01	129	1.8°	0.7	5	3.5	480	8	2100	3.6

Drawing

86--hy

Application

Heavy-Duty CNC Machining

Ideal for medium-to-large CNC routers, milling machines, and lathes. Its 160-480N·cm torque and NEMA 34 compatibility ensure precise processing of heavy workpieces in industrial production.

Industrial Automation

Fits large conveyors, automated assembly lines, and material handling systems. 4/8-pin flexibility and stable positioning support continuous heavy-load operation in factory environments.

Industrial Robotics

Used in heavy robotic arms, automated guided vehicles (AGVs), and packaging machinery. IP40 protection and wide temp adaptability guarantee reliable performance in harsh industrial settings.
