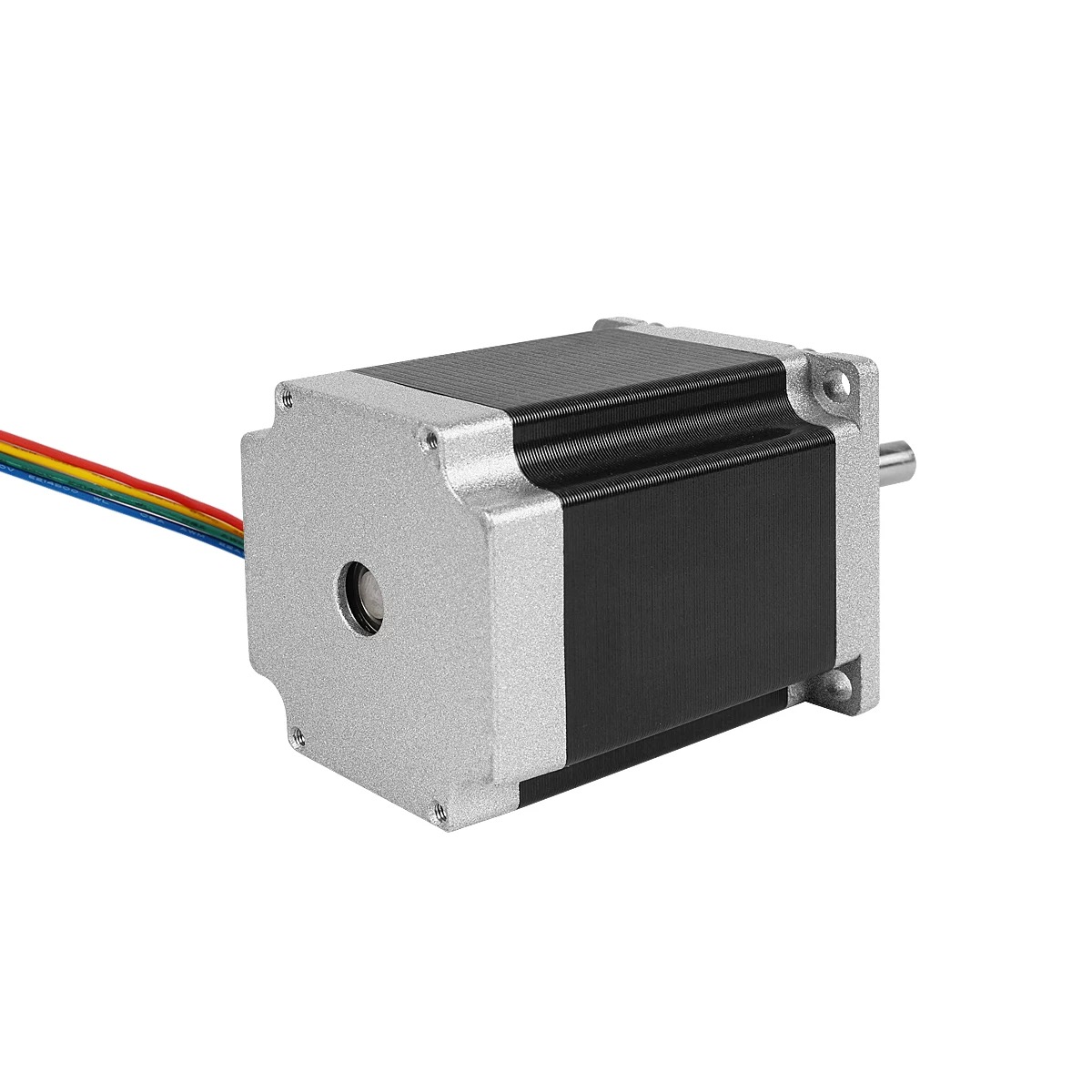

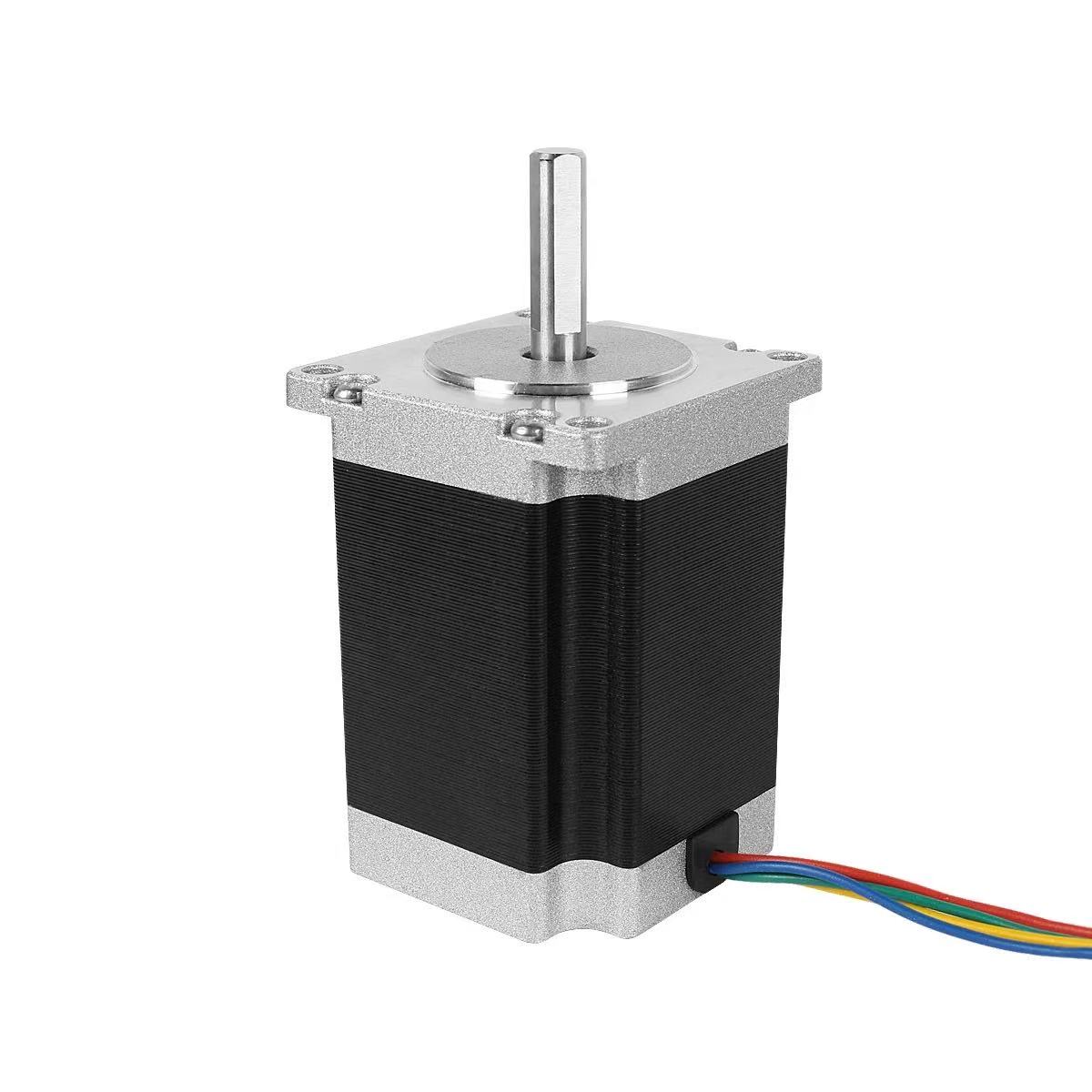

NEMA 36 90SHD Series Hybrid Stepper Motor - 1.8° Step Angle 5-6A Current

Motor Series: NEMA 36 90SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 8-pin leads, 65-150mm length, 1.2-4.8kg weight
Electrical Params: 5-6A rated current, 2.6-4.9V voltage, 0.52-0.82Ω phase resistance
Performance: 320-1300N·cm holding torque, 2200-5100g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 90SH065DE053X-01/90SH078DE062X-01 (5 models total)

Model:
NEMA 36 90SHD
Brand:
SHINE
Code:
20221181


Availability:



Inquiry

Product Description

Overview of NEMA 36 90SHD Hybrid Stepper Motor

The 90SHD Series is an industrial-grade NEMA 36 hybrid stepper motor engineered for extreme torque and stability. With a 1.8° step angle ensuring precise positioning, it offers 5 length variants (65-150mm) and 320-1300N·cm torque to handle heavy-to-extreme load demands, from large CNC machining centers to industrial-scale automation systems.

Key Features & Reliability

Constructed with high-strength permanent magnets and rugged precision components, it adopts a universal 8-pin design for seamless driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 1.2-4.8kg robust structure ensures stability under high loads. It adapts to 5-6A current and 2.6-4.9V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
90SH065DE053X-01	65	1.8°	0.53	5	2.6	320	8	2200	1.2
90SH078DE062X-01	78	1.8°	0.62	5	3.1	520	8	3200	1.8
90SH095DE052X-01	95	1.8°	0.52	6	3.1	700	8	3600	2.4
90SH114DE065X-01	114	1.8°	0.65	6	3.9	980	8	4200	3.5
90SH150DE082X-01	150	1.8°	0.82	6	4.9	1300	8	5100	4.8

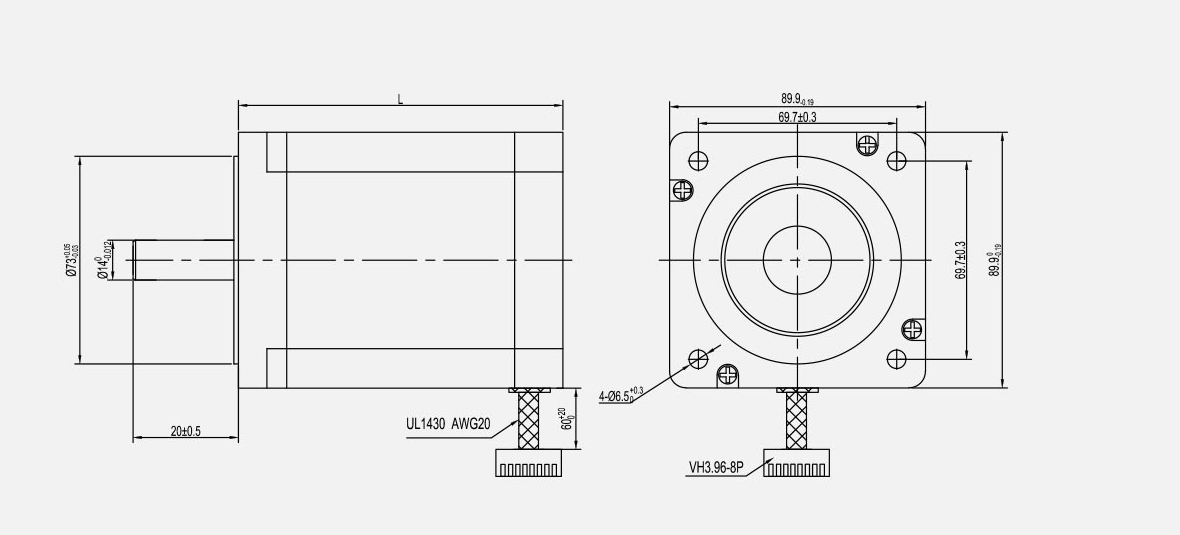

Drawing

Application

Heavy-Duty CNC Machining

Ideal for large CNC routers, milling machines, and lathes. Its 320-1300N·cm torque and NEMA 36 compatibility handle extreme loads for high-precision metal processing and heavy workpiece machining.

Industrial Automation

Fits large conveyors, automated assembly lines, and material handling systems. The 8-pin design and stable positioning support continuous heavy-load operation in factory production environments.

Industrial Robotics

Used in heavy robotic arms, automated guided vehicles (AGVs), and large packaging machinery. IP40 protection and wide temp adaptability ensure reliable performance in harsh industrial settings.
