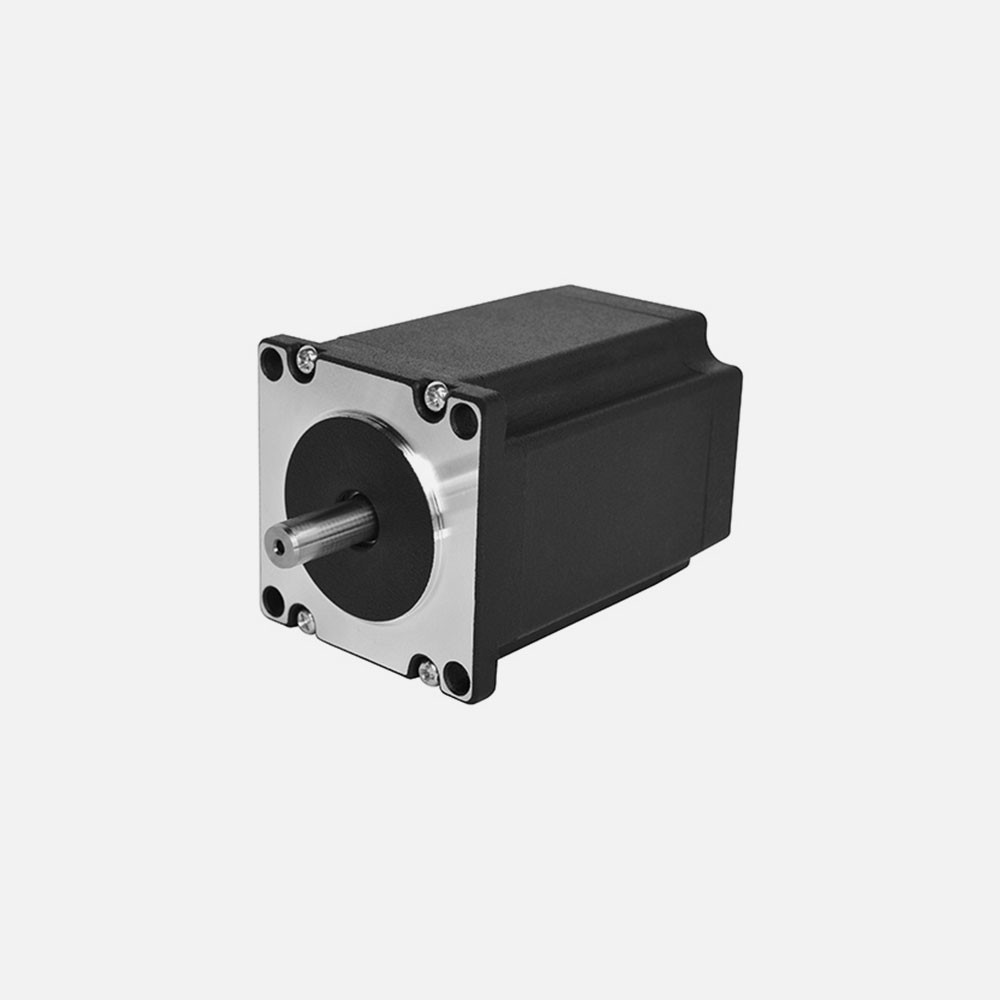

NEMA 23 57SHM Series Hybrid Stepper Motor - 0.9° Step Angle 0.5-5.4A Current

Motor Series: NEMA 23 57SHM Series Hybrid Stepper Motor
Core Specs: 0.9° step angle, 4/8-pin leads, 41-100mm length, 0.47-1.4kg weight
Electrical Params: 0.5-5.4A rated current, 2.1-13V voltage, 0.48-26Ω phase resistance
Performance: 28-200N·cm holding torque, 130-630g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 57SH041ME048X-01/57SH051MF600X-01 (7 models total)

Model:
NEMA 23 57SHM
Brand:
SHINE
Code:
20221176


Availability:



Inquiry

Product Description

Overview of NEMA 23 57SHM Hybrid Stepper Motor

The 57SHM Series is a high-precision NEMA 23 hybrid stepper motor engineered for ultra-fine industrial motion control. Its 0.9° step angle delivers double the accuracy of 1.8° motors, with 7 length variants (41-100mm) and 28-200N·cm torque to handle light-to-heavy load demands, from precision instruments to industrial machinery.

Key Features & Reliability

Constructed with premium permanent magnets and precision-machined rotors, it supports 4/8-pin configurations for flexible driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 0.47-1.4kg design balances power and stability. It adapts to 0.5-5.4A current and 2.1-13V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
57SH041ME048X-01	41	0.9°	0.48	5.4	2.592	28	8	130	0.47
57SH051MF600X-01	51	0.9°	6	0.88	5.28	100	4	220	0.57
57SH056MF160X-01	56	0.9°	1.6	2	3.2	100	4	270	0.65
57SH076MF200X-01	76	0.9°	2	2	4	150	4	450	1
57SH080ME182X-01	80	0.9°	1.82	2.1	3.822	130	8	490	1.1
57SH085MF26JX-01	85	0.9°	26	0.5	13	200	4	520	1.2
57SH100MF070X-01	100	0.9°	0.7	3	2.1	200	4	630	1.4

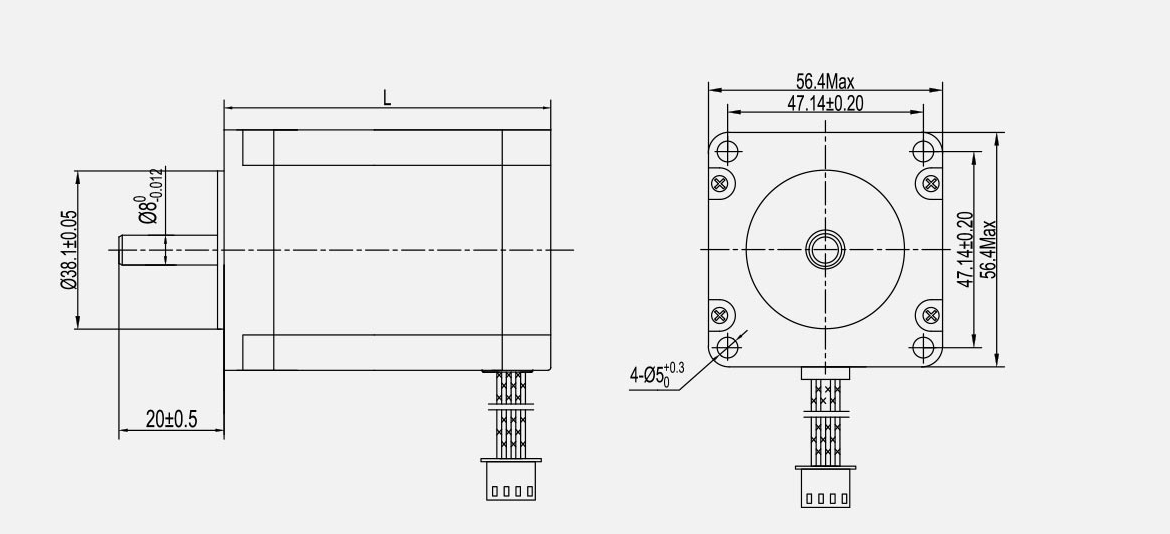

Drawing

57MM

Application

Precision CNC Machining

Ideal for small-to-medium CNC routers, milling machines, and engraving tools. Its 0.9° step angle ensures ultra-fine precision for intricate material processing and consistent machining quality.

Industrial Robotics

Fits heavy robotic arms, automated guided vehicles (AGVs), and material handling robots. 4/8-pin flexibility and 28-200N·cm torque support reliable motion in industrial automation scenarios.

High-Precision Industrial Equipment

Used in precision positioning systems, automated assembly lines, and test benches. IP40 protection and stable temp adaptability ensure durability in harsh industrial environments.
