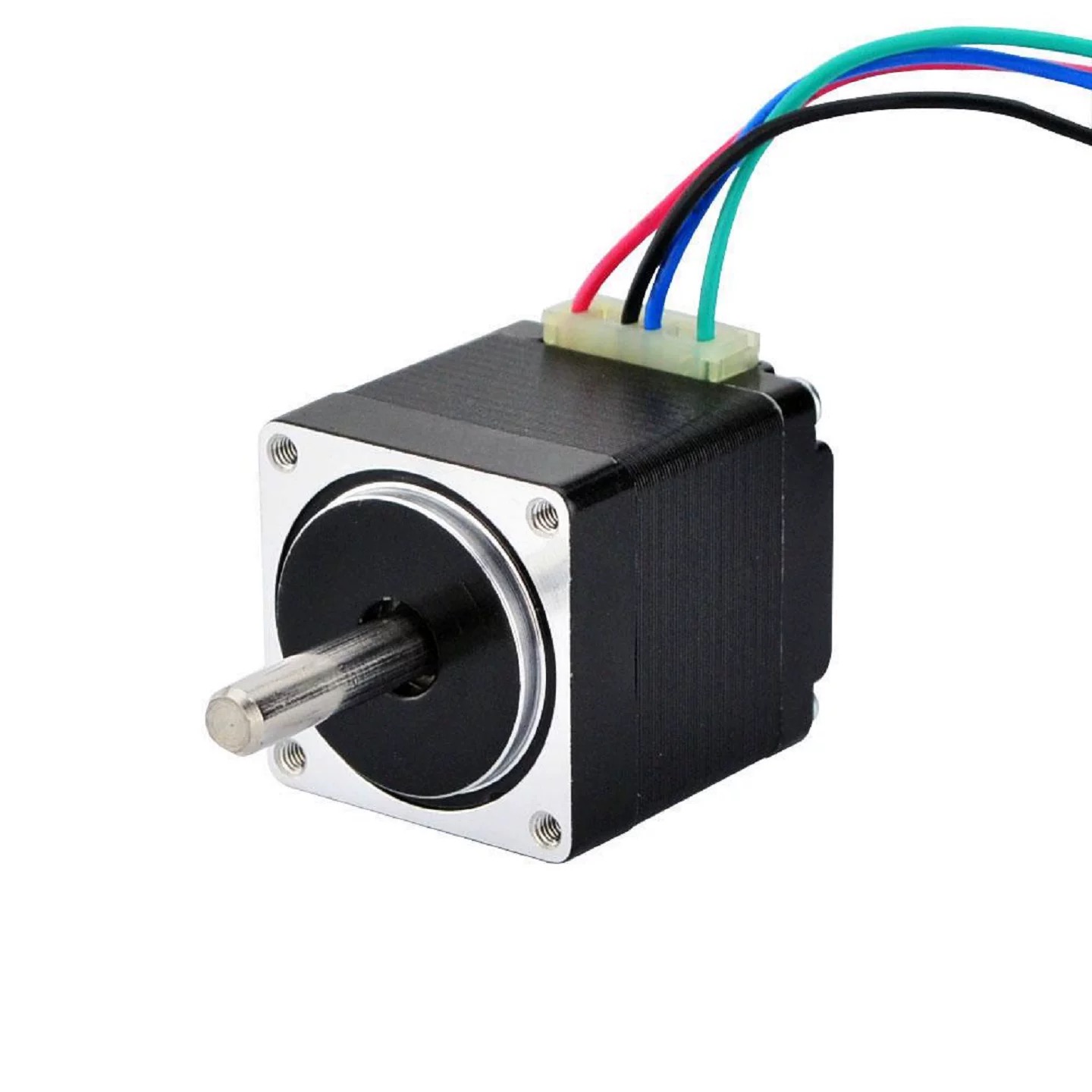

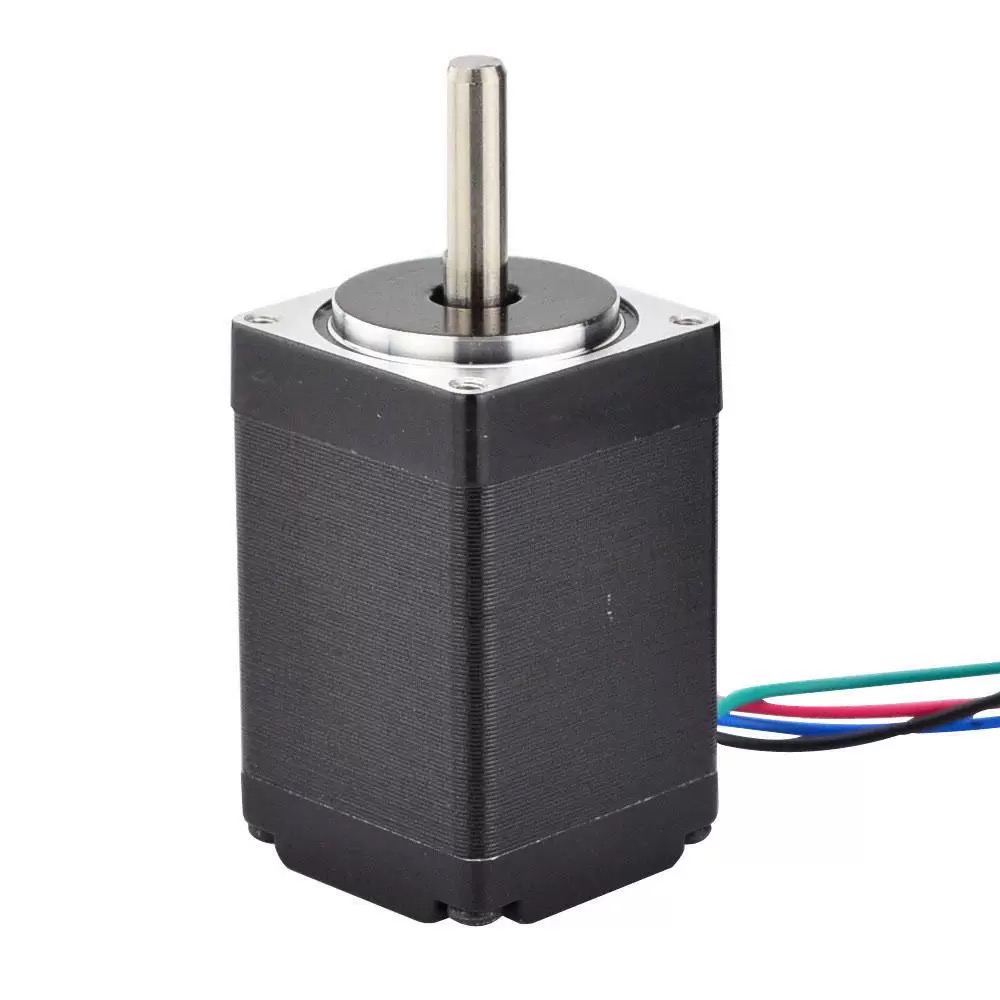

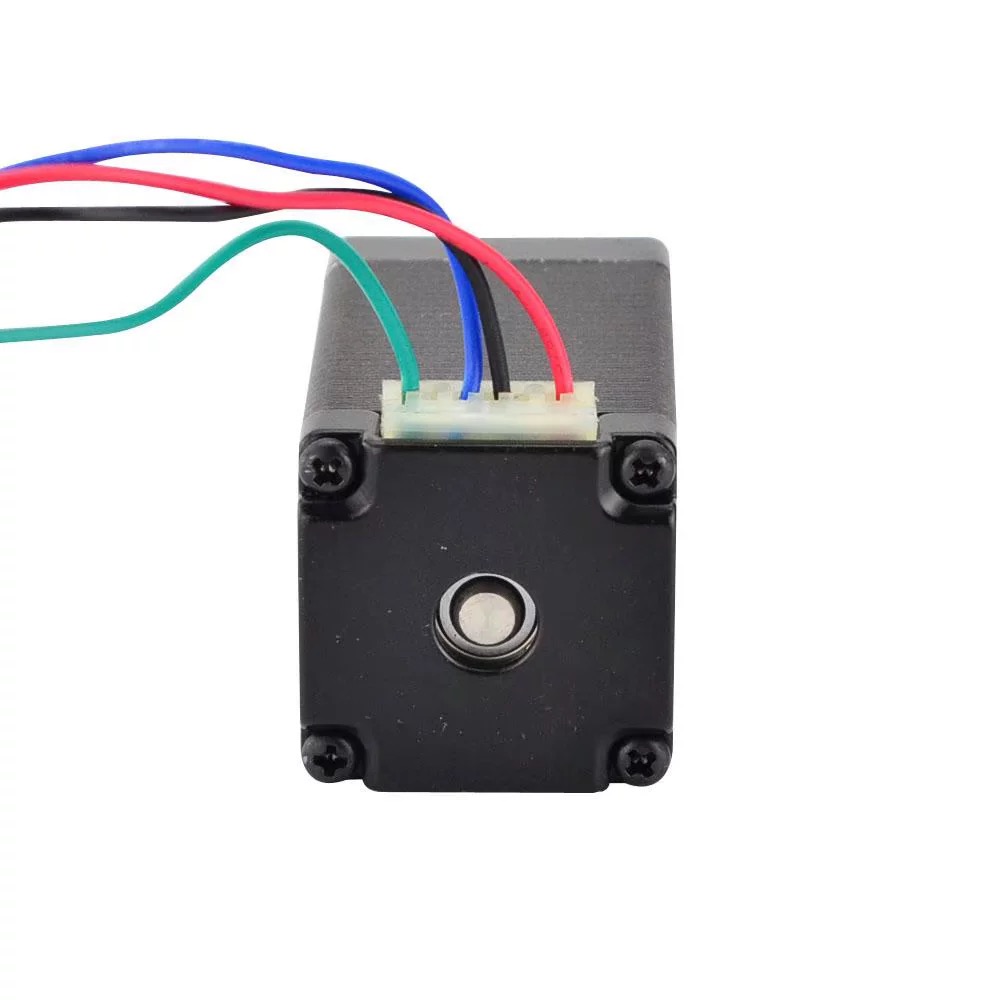

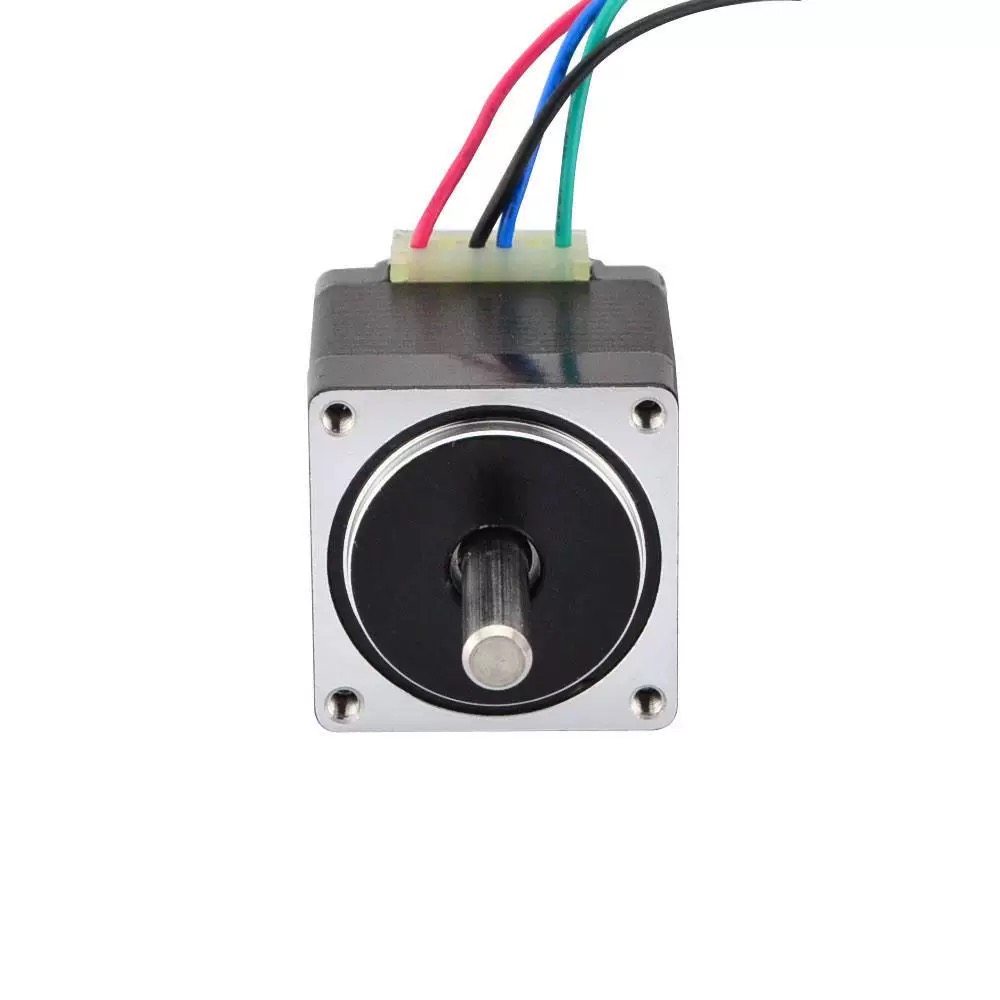

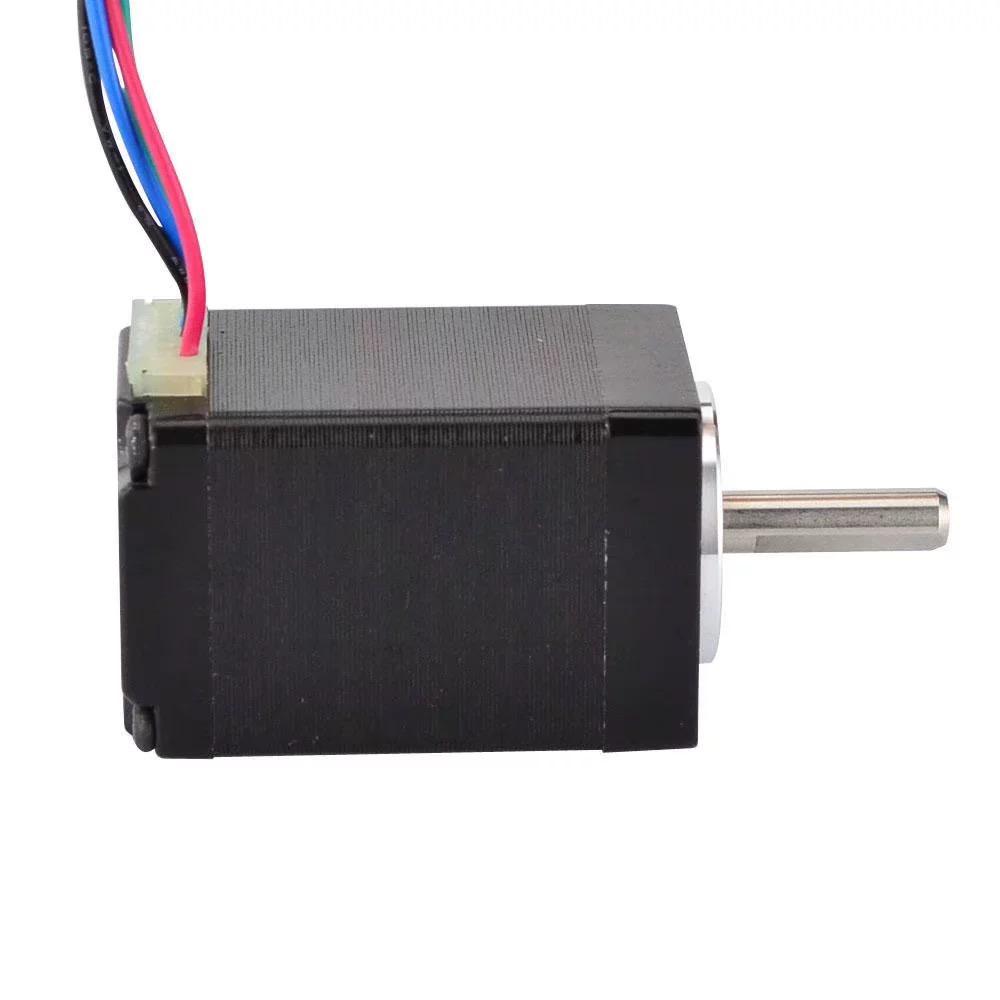

NEMA 11 28SHD Hybrid Stepper - 20-50mm Length -10°C~50°C Operating Temp

Motor Series: NEMA 11 28SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/6-pin leads, 20-50mm length, 0.1-0.2kg weight
Electrical Params: 0.3-1A rated current, 3.23-14.4V voltage, 3.4-48Ω phase resistance
Performance: 3-13N·cm holding torque, 7-18g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)

Model:
NEMA 11 28SHD
Brand:
SHINE
Code:
20221167


Availability:



Inquiry

Product Description

Overview of NEMA 11 28SHD Hybrid Stepper Motor

The 28SHD Series is a high-performance NEMA 11 hybrid stepper motor designed for precision motion control applications. Boasting a standard 1.8° step angle, it delivers exceptional positional accuracy and repeatability, making it ideal for equipment where precise movement is critical. Available in six length variants (20mm to 50mm), the series offers versatile torque options (3N·cm to 13N·cm) to accommodate diverse load demands, from lightweight consumer devices to mid-range industrial machinery.

Core Features & Durability

Crafted with premium permanent magnet materials and precision-machined components, the 28SHD Series ensures long service life and stable performance. It features flexible 4/6-pin lead designs for easy integration, IP40 protection against dust and particles, and B-class insulation (130°C) for safe operation in challenging environments. The motor’s lightweight construction (0.1-0.2kg) and low rotor inertia (7-18g·cm²) enable fast acceleration and deceleration, optimizing energy efficiency while enhancing operational responsiveness.

Electrical & Environmental Versatility

Operating at 0.3-1A rated current and 3.23-14.4V voltage, with phase resistance ranging from 3.4Ω to 48Ω, the series adapts to various driver configurations. It performs reliably in temperatures between -10°C and 50°C, with a maximum temp rise of ≤80°C, making it suitable for both indoor industrial settings and controlled outdoor applications. Whether used in continuous operation or intermittent cycles, the 28SHD Series maintains consistent torque output and positional accuracy, minimizing maintenance requirements and ensuring long-term reliability.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
28SH020DF10JX-01	20	1.8°	10	0.5	5	3.4	4	7	0.1
28SH024DF12JX-01	24	1.8°	12	0.5	6	3	4	8	0.1
28SH031DF48JX-01	31	1.8°	48	0.3	14.4	6	4	10	0.11
28SH033DS36JX-01	33	1.8°	36	0.3	10.8	5	6	10	0.12
28SH040DS340X-01	40	1.8°	3.4	0.95	3.23	7.5	4	12	0.14
28SH050DF350X-01	50	1.8°	3.5	1	3.5	13	4	18	0.2

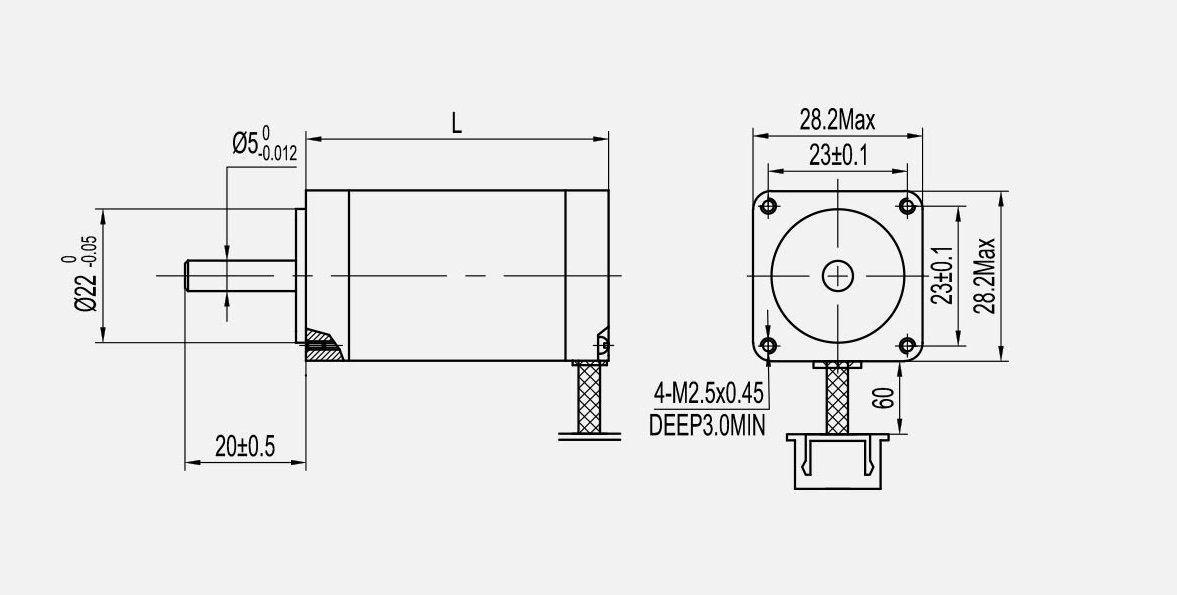

Drawing

NEMA11

Application

Industrial Automation & Robotics

The NEMA 11 28SHD Series thrives in small-scale industrial automation, such as precision conveyors, automated sorting systems, and miniaturized robotic arms. Its high positional accuracy and stable torque ensure consistent performance in repetitive tasks, while its -10°C~50°C operating range adapts to factory floors with fluctuating temperatures. The motor’s compact size (20-50mm length) fits seamlessly into space-constrained automation setups, reducing equipment footprint without compromising performance.

Consumer & Professional Electronics

Widely used in consumer and professional devices, the series is a top choice for 3D printers, small CNC routers, and desktop laser engravers. It delivers the precise movement required for high-quality 3D prints and detailed engravings, with low noise and vibration. Its lightweight design and low power consumption also make it suitable for portable electronic tools, such as handheld precision instruments and educational robotics kits, where energy efficiency and maneuverability are key.

Medical & Laboratory Equipment

In medical and laboratory settings, the 28SHD Series is employed in small diagnostic devices, sample handling systems, and micro-positioning stages. Its 1.8° step angle enables accurate manipulation of samples and components, while IP40 protection and B-class insulation meet the hygiene and safety standards of medical environments. The motor’s reliable performance in controlled temperatures ensures consistent results in sensitive laboratory applications, from automated pipetting to microscopic positioning.
