SH28BYGH Stepper Motors - High Precision for Monitor/Medical/Industrial Automation Equipment

SH28BYGH Stepper Motors - High Precision for Monitor/Medical/Industrial Automation Equipment

SH28BYGH stepper motors (SH28BYGH201-SH28BYGH502) have 1.8° step angle, -20℃~+55℃ ambient temp, 500V DC 100MΩ MIN insulation resistance (Class B). Voltage 2.52-8.4V, current 0.35-0.6A, holding torque 0.45-1.0 Kg.cm, length 28-50mm, weight 105-180g, ideal for precision industrial applications.

Model:
SH28BYGH Stepper Motors
Brand:
SHINE
Code:
20221201


Availability:



Inquiry

Product Description

Core Features of SH28BYGH Stepper Motors

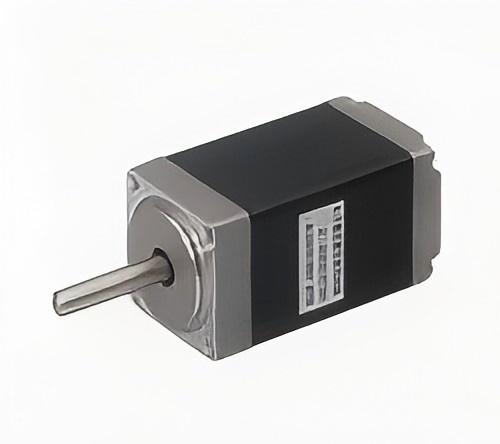

SH28BYGH series stepper motors (prefixed with SH: SH28BYGH201, SH28BYGH202, SH28BYGH301, SH28BYGH302, SH28BYGH401, SH28BYGH402, SH28BYGH501, SH28BYGH502) are engineered for high precision and stability in critical applications. With a standard 1.8° step angle, these motors ensure accurate positioning, while their Class B insulation and 500V DC 100MΩ MIN insulation resistance guarantee safe operation in harsh environments (-20℃ to +55℃).

Designed for compact integration, the motors vary in physical specs (length 28-50mm, weight 105-180g) while maintaining consistent performance metrics like detent torque (0.03-0.08 Kg.cm) and rotor inertia (6-13 g.cm²). Below is the detailed parameter table for SH28BYGH models:

Model	Voltage (V)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding torque (Kg.cm)	Detent torque (Kg.cm)	Rotor Inetia (g.cm²)	Wdg	Length (mm)	Weight (g)
SH28BYGH201	2.52	0.6	4.2	2.2	0.45	0.03	6	a	28	105
SH28BYGH202	4.2	0.35	12	5.8	0.45	0.03	6	a	28	105
SH28BYGH301	3.3	0.6	5.5	3.2	0.60	0.04	8	a	33	110
SH28BYGH302	5.25	0.35	15	9.2	0.60	0.04	8	a	33	110
SH28BYGH401	4.2	0.6	7	6	0.60	0.05	11	a	41	140
SH28BYGH402	7	0.35	20	15	0.60	0.05	11	a	41	140
SH28BYGH501	5.4	0.6	9	7.2	1.0	0.08	13	a	50	180
SH28BYGH502	8.4	0.35	24	18.5	1.0	0.08	13	a	50	180

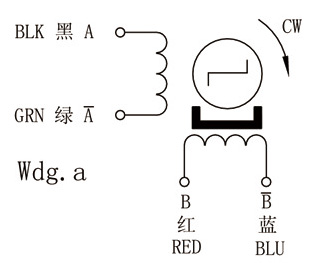

28-1

These motors combine durability and precision, making them a top choice for low-noise, high-reliability motion control systems.

Application

Key Applications of SH28BYGH Stepper Motors

SH28BYGH series stepper motors (SH-prefixed models) are tailored for three core high-demand sectors: monitor equipment, medical instruments, and industrial automation. In monitor systems (e.g., security camera pan-tilt mechanisms), their 1.8° step angle ensures smooth, precise positioning for real-time surveillance. For medical instruments (e.g., diagnostic scanners, lab automation), the motors’ low detent torque (0.03-0.08 Kg.cm) and stable holding torque (0.45-1.0 Kg.cm) enable ultra-precise movement critical for accurate patient diagnostics.

In industrial automation (e.g., conveyor systems, robotic arms), the motors’ wide operating temperature range (-20℃ to +55℃) and robust insulation (Class B, 500V DC 100MΩ MIN) ensure consistent performance in factory environments. Their compact design (28-50mm length) also allows integration into space-constrained industrial machinery, making them a versatile solution for precision motion control across industries.
