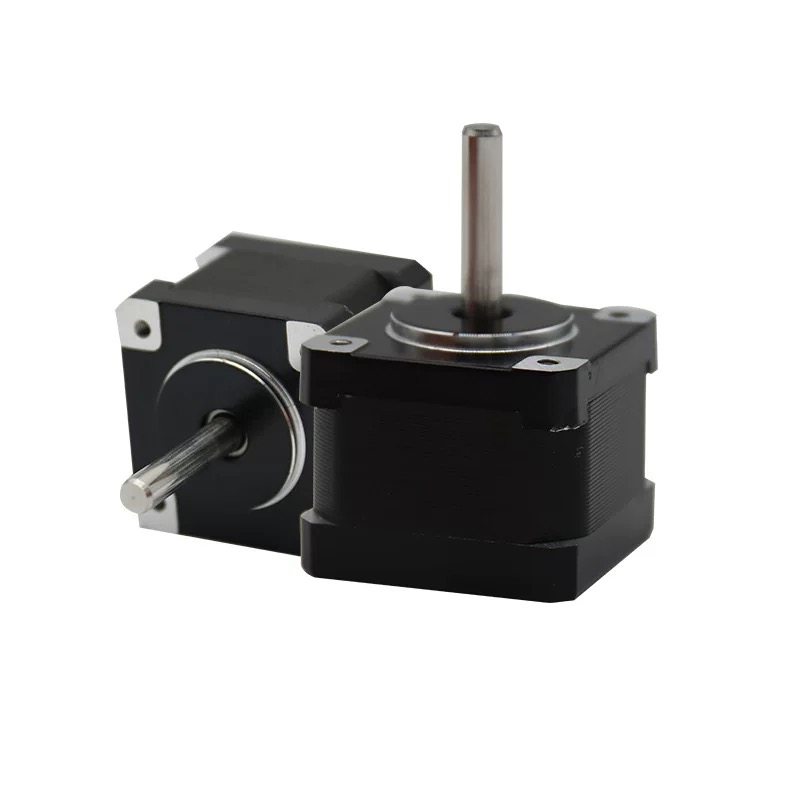

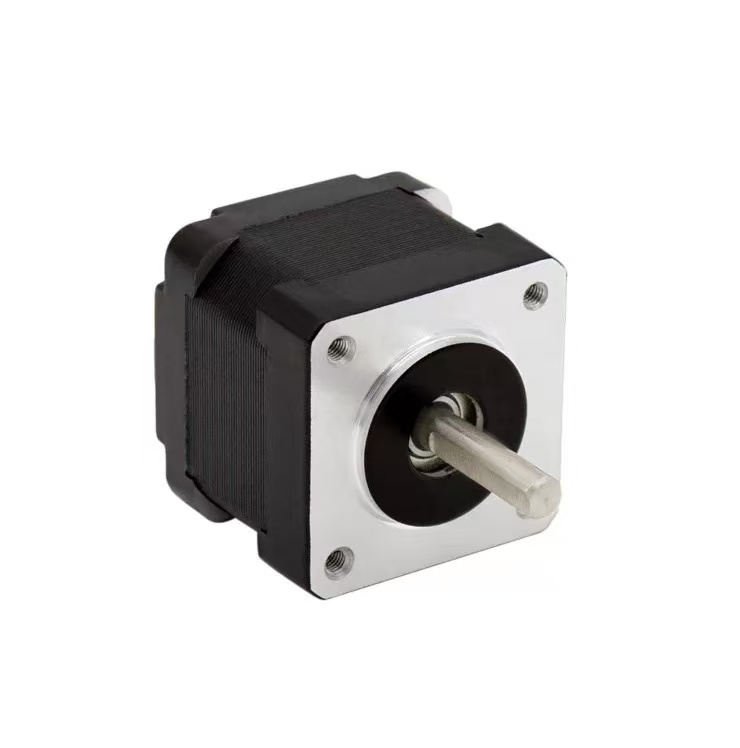

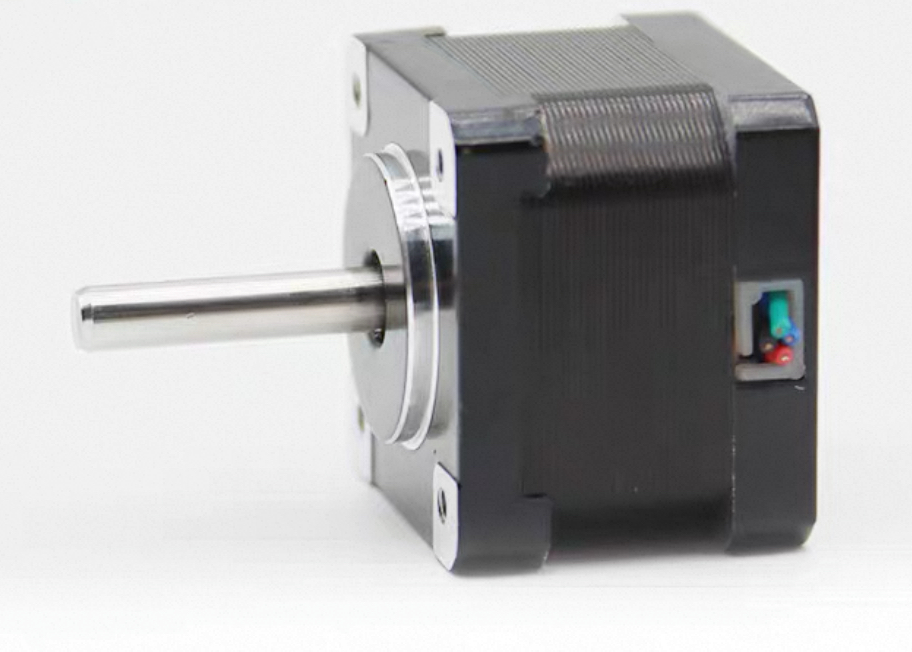

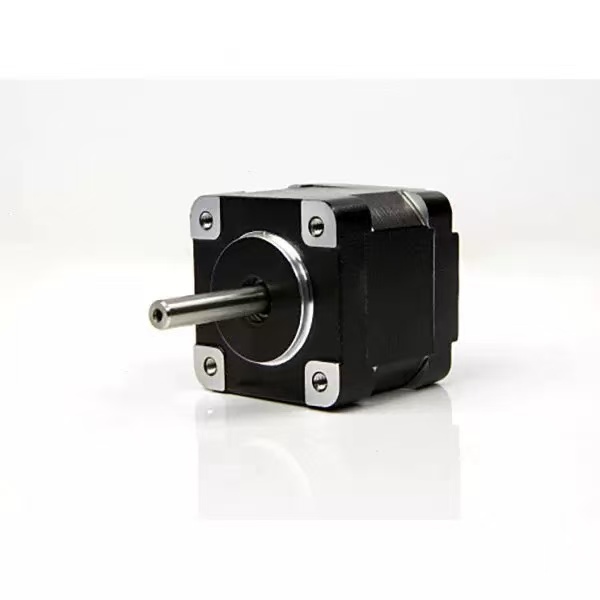

NEMA 14 35SHM Series Hybrid Stepper Motor - 0.9° Step Angle 0.3-0.5A Current

The 35SHM Series is a high-precision NEMA 14 hybrid stepper motor engineered for demanding motion control scenarios. Equipped with a 0.9° step angle—half the industry standard 1.8°—it delivers exceptional positional accuracy and repeatability, making it perfect for equipment requiring micro-precision movement. Available in five length variants (20mm to 33mm), the series offers flexible torque options (4N·cm to 15N·cm) to match diverse load requirements, from lightweight consumer electronics to mid-range industrial automation.

Constructed with premium permanent magnet materials and precision-machined components, the 35SHM Series ensures long service life and stable performance. It features a universal 4-pin lead design for easy integration with standard drivers, IP40 protection against dust and debris, and B-class insulation (130°C) for safe operation in harsh conditions. The motor’s lightweight build (0.11-0.18kg) and low rotor inertia (10-20g·cm²) enable fast acceleration and deceleration, optimizing energy efficiency while enhancing operational responsiveness.

Operating at 0.3-0.5A rated current and 2.25-13.5V voltage, with phase resistance ranging from 4.5Ω to 45Ω, the series adapts to various driver configurations. It performs reliably in temperatures between -10°C and 50°C, with a maximum temp rise of ≤80°C, making it suitable for both indoor industrial settings and controlled outdoor applications. Whether used in continuous operation or intermittent cycles, the 35SHM Series maintains consistent torque output and positional accuracy, minimizing maintenance needs and ensuring long-term reliability.

The NEMA 14 35SHM Series excels in small-scale precision automation, such as micro-conveyors, automated assembly stations, and miniaturized robotic arms. Its 0.9° step angle ensures ultra-precise positioning, critical for tasks like component alignment and micro-assembly. The motor’s -10°C~50°C operating range adapts to factory floors with fluctuating temperatures, while its compact size (20-33mm) fits seamlessly into space-constrained setups.

Widely used in high-end consumer and professional devices, the series is ideal for precision 3D printers, small CNC mills, and desktop laser cutters. It delivers the micro-precision required for detailed prints and intricate cuts, with low noise and vibration. Its lightweight design and low power consumption also make it suitable for portable electronic tools, such as handheld precision measuring instruments and educational robotics kits.

In medical and laboratory settings, the 35SHM Series is employed in small diagnostic devices, sample handling systems, and micro-positioning stages. Its 0.9° step angle enables accurate manipulation of tiny samples and components, while IP40 protection and B-class insulation meet the hygiene and safety standards of medical environments. The motor’s reliable performance in controlled temperatures ensures consistent results in sensitive applications like automated pipetting and microscopic positioning.
