SH42BYGH & SH42BYGM Stepper Motors - Precision for Monitor/Medical/Industrial Use

SH42BYGH & SH42BYGM stepper motors (SH42BYGH010-SH42BYGM402) have 0.9-1.8° step angles, -20℃~+55℃ ambient temp, 500V DC 100MΩ MIN insulation (Class B). Voltage 2.4-12V, current 0.4-2.4A, holding torque 1.0-4.8 Kg.cm, length 34-48mm, weight 0.2-0.35Kg, perfect for precision-driven applications.

Model:
SH42BYGH & SH42BYGM Stepper Motors
Brand:
SHINE
Code:
20221205


Availability:



Inquiry

Product Description

Core Features of SH42BYGH & SH42BYGM Stepper Motors

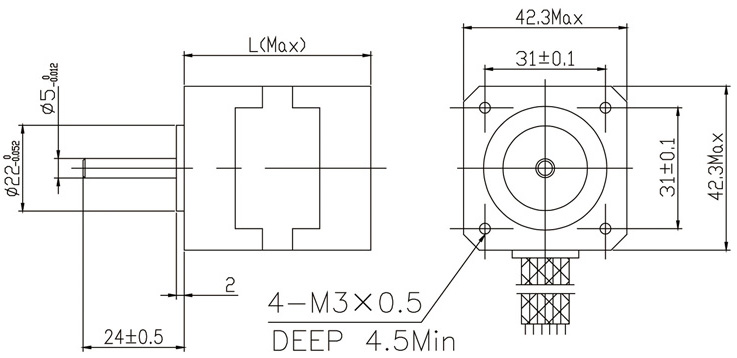

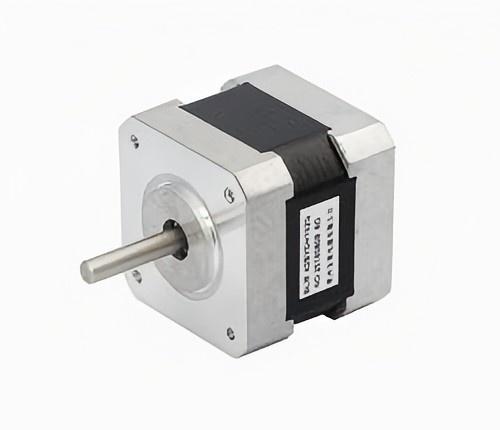

SH42BYGH and SH42BYGM series stepper motors (with "SH" prefix: SH42BYGH010, SH42BYGH011, SH42BYGH023, SH42BYGH102Q, SH42BYGH107, SH42BYGH403, SH42BYGH404, SH42BYGM402) are engineered for high precision and stability. SH42BYGH boasts a 1.8° step angle, while SH42BYGM features a 0.9° step angle, both ensuring accurate positioning for critical equipment.

Equipped with Class B insulation and 500V DC 100MΩ MIN insulation resistance, they safely function in -20℃~+55℃ environments, adapting to diverse working conditions. Their compact design (length 34-48mm, weight 0.2-0.35Kg) allows easy integration into space-limited setups. Below is the detailed parameter table:

Model	Step Angle (Deg)	Voltage (V)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding torque (Kg.cm)	Detent torque (Kg.cm)	Rotor Inetia (g.cm²)	Wdg	Length (mm)	Weight (Kg)
SH42BYGH010	1.8	3.38	1.3	2.6	3.8	2.6	0.2	24	a	34	0.2
SH42BYGH011	1.8	4.88	0.65	7.5	7	1.0	0.2	24	b	34	0.2
SH42BYGH023	1.8	12	0.4	30	32	2.5	0.2	24	a	34	0.2
SH42BYGH102Q	1.8	6	1	6	12	3.2	0.22	32	a	40	0.26
SH42BYGH107	1.8	12	0.4	30	25	2.8	0.22	32	b	40	0.26
SH42BYGH403	1.8	2.4	2.4	1	1.8	4.8	0.25	40	a	48	0.35
SH42BYGH404	1.8	12	0.4	30	25	3.2	0.25	40	b	48	0.35
SH42BYGM402	0.9	4.6	1	4.6	15	4.0	0.25	40	a	48	0.35

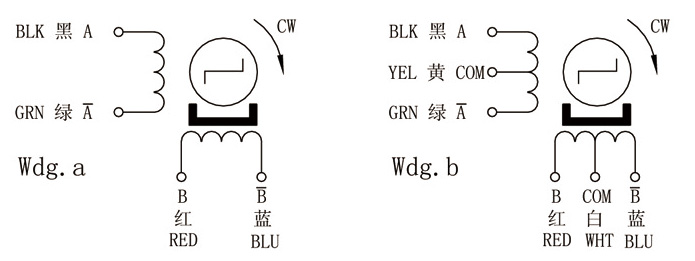

These motors blend durability and precision, ideal for low-noise, high-reliability motion control systems.

Application

Target Applications of SH42BYGH & SH42BYGM Stepper Motors

SH42BYGH and SH42BYGM series stepper motors excel in three key sectors: monitor equipment, medical instruments, and industrial automation. In monitor systems (e.g., security camera pan-tilt mechanisms), SH42BYGH’s 1.8° and SH42BYGM’s 0.9° step angles enable smooth, precise positioning for comprehensive surveillance coverage.

For medical instruments (e.g., diagnostic scanners, lab automation tools), their stable holding torque (1.0-4.8 Kg.cm) and low detent torque (0.2-0.25 Kg.cm) ensure accurate, gentle movements, critical for patient care and test accuracy.

In industrial automation (e.g., robotic arms, conveyor controls), their wide temperature range (-20℃~+55℃) and robust insulation (Class B) guarantee consistent performance in harsh factory conditions. Compact sizes (34-48mm length) fit space-constrained setups, making them versatile for precision motion needs across industries.
