SH36BYGM Stepper Motors - Ideal for Monitor/Medical/Communication/Industrial Devices

SH36BYGM stepper motors (SH36BYGM003-SH36BYGM108) have 0.9° step angle, -20℃~+55℃ ambient temp, 500V DC 100MΩ MIN insulation (Class B). Voltage 2.6-8.2V, current 0.3-0.8A, holding torque 0.4-1.0 Kg.cm, length 12.35-19.7mm, weight 50-90g, perfect for multi-sector precision applications.

Model:
SH36BYGM Stepper Motors
Brand:
SHINE
Code:
20221203


Availability:



Inquiry

Product Description

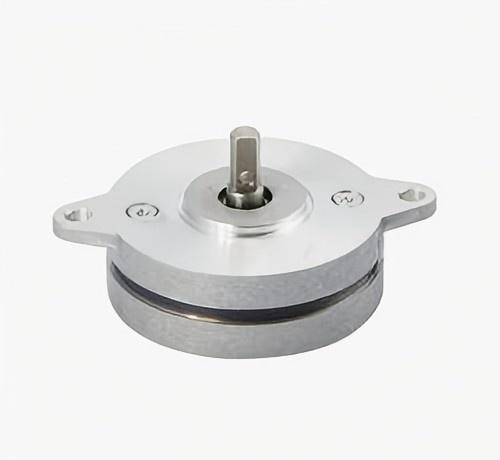

Key Features of SH36BYGM Stepper Motors

SH36BYGM series stepper motors (prefixed with "SH": SH36BYGM003, SH36BYGM005, SH36BYGM008, SH36BYGM103, SH36BYGM105, SH36BYGM108) are engineered for high precision and versatility. All models feature a 0.9° step angle, ensuring ultra-accurate positioning, which is essential for sensitive equipment operation.

With Class B insulation and 500V DC 100MΩ MIN insulation resistance, they safely work in environments ranging from -20℃ to +55℃, adapting to diverse working conditions. Their compact design (length 12.35-19.7mm, weight 50-90g) allows easy integration into space-limited devices. Below is the detailed parameter table:

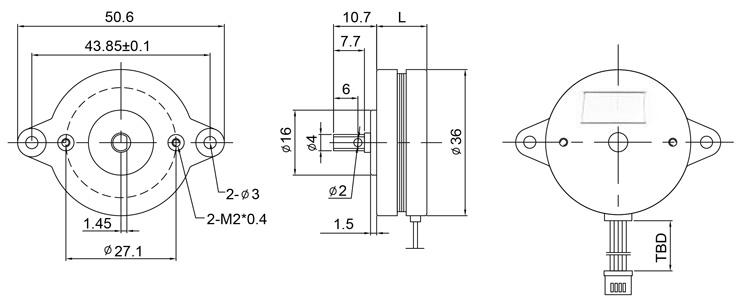

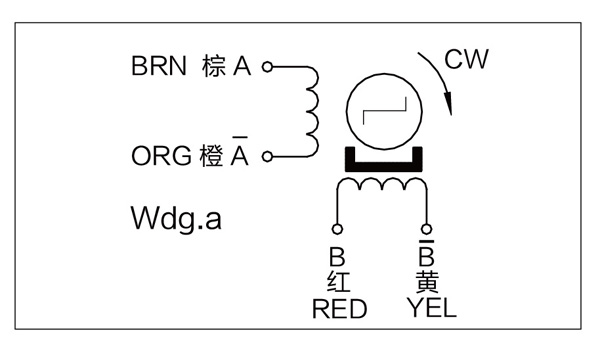

36BYG1 36BYG22

Model	Step Angle (Deg)	Voltage (V)	Current (A)	Resistance (Ω)	Inductance (mH)	Holding torque (Kg.cm)	Rotor Inetia (g.cm²)	Wdg	Length (mm)	Weight (g)
SH36BYGM003	0.9	5	0.3	16.8	7	0.4	7.3	a	12.35	50
SH36BYGM005	0.9	3.2	0.5	6.4	3.16	0.4	7.3	a	12.35	50
SH36BYGM008	0.9	2.6	0.8	4.3	2.23	0.4	7.3	a	12.35	50
SH36BYGM103	0.9	8.2	0.3	27.2	20.7	1.0	19.6	a	19.7	90
SH36BYGM105	0.9	5.2	0.5	11.5	9	1.0	19.6	a	19.7	90
SH36BYGM108	0.9	3.3	0.8	4.1	3.16	1.0	19.6	a	19.7	90

These motors combine reliability and precision, suitable for low-noise, high-performance motion control systems.

Application

Practical Applications of SH36BYGM Stepper Motors

SH36BYGM series stepper motors are widely used in four major fields: monitor equipment, medical instruments, communication equipment, and industrial automation. In monitor equipment (such as security cameras), their 0.9° step angle enables precise angle adjustment, ensuring comprehensive monitoring coverage.

For medical instruments (like small diagnostic devices), the stable holding torque (0.4-1.0 Kg.cm) and compact size ensure accurate, non-intrusive operation, which is crucial for medical testing accuracy. In communication equipment (e.g., signal transmitters), their excellent environmental adaptability (-20℃~+55℃) guarantees stable performance in different climates.

In industrial automation (such as small robotic components), the motors’ reliable insulation (Class B) and appropriate electrical specs (voltage 2.6-8.2V, current 0.3-0.8A) meet the demands of continuous, high-precision industrial operations, making them a versatile choice across sectors.
