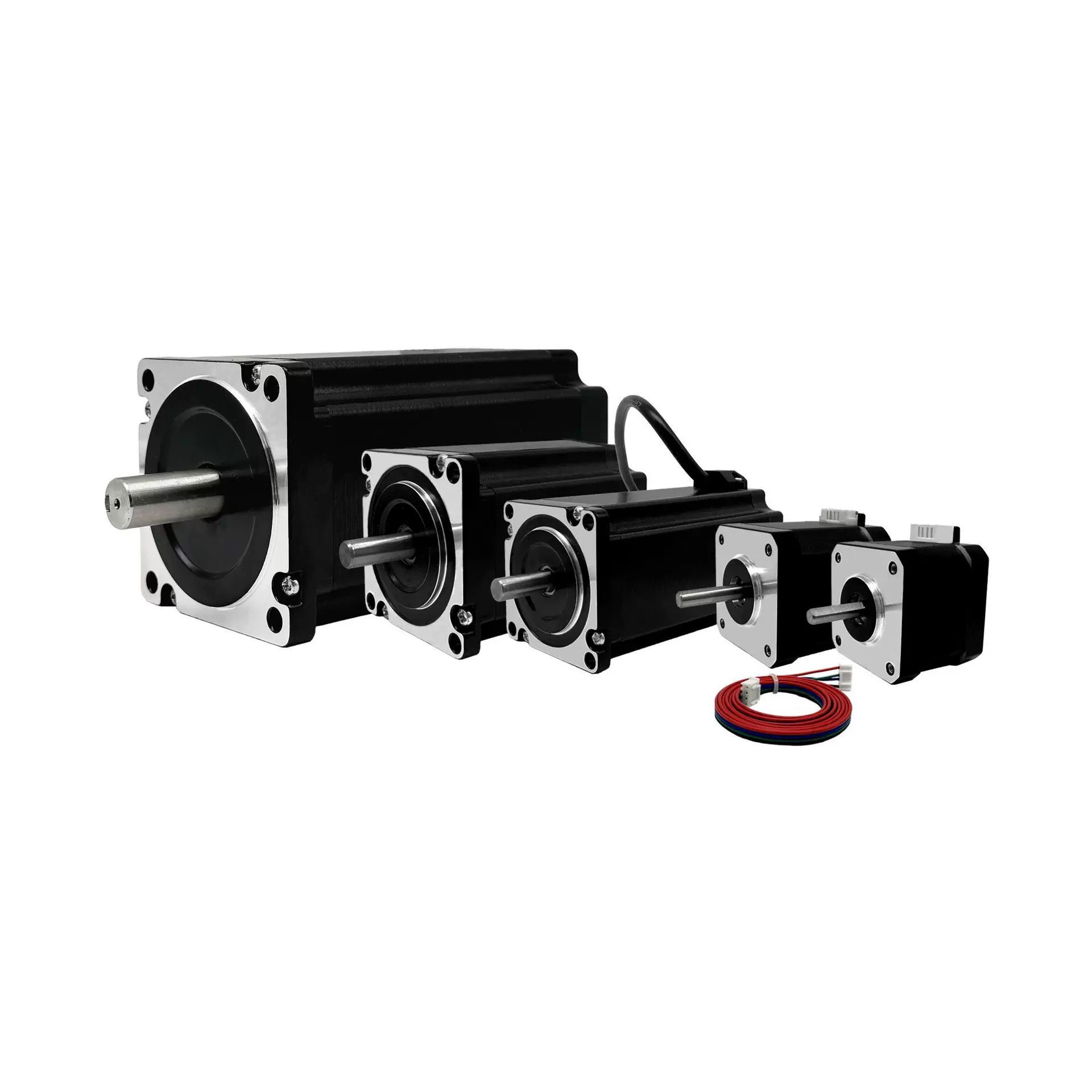

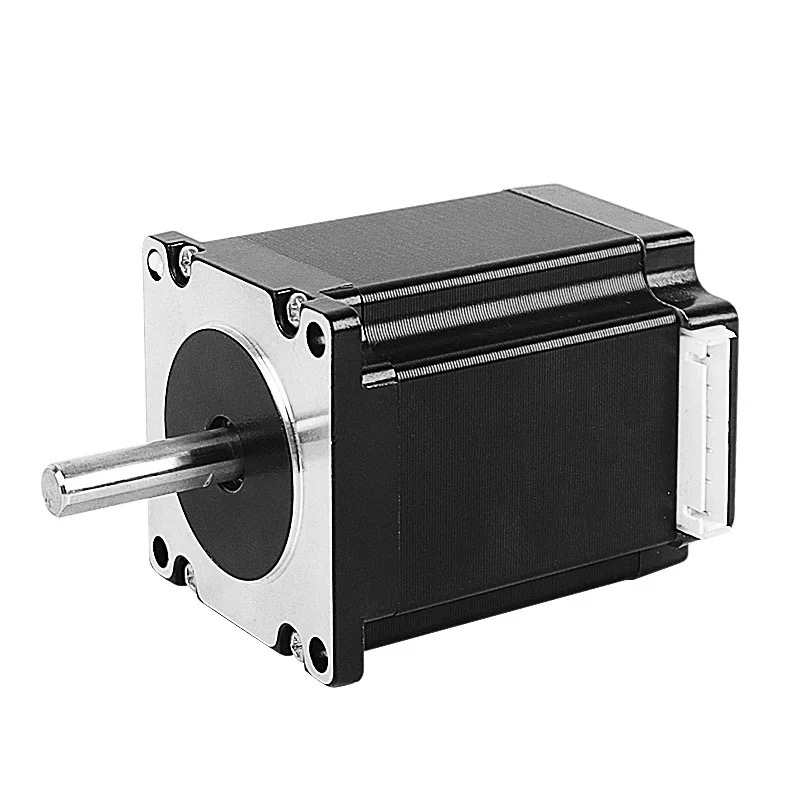

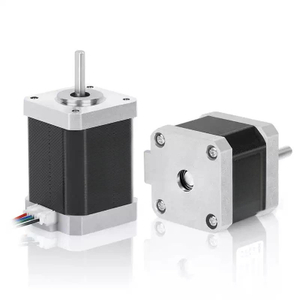

NEMA 34 86SHD Series Hybrid Stepper Motor - 1.8° Step Angle 2.4-7.1A Current

Motor Series: NEMA 34 86SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/8-pin leads, 65-150mm length, 1.7-4.2kg weight
Electrical Params: 2.4-7.1A rated current, 1.7-5.95V voltage, 0.34-1.3Ω phase resistance
Performance: 220-1200N·cm holding torque, 1400-4500g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 86SH065DE034X-01/86SH066DE048X-01 (10 models total)

Model:
NEMA 34 86SHD
Brand:
SHINE
Code:
20221180


Availability:



Inquiry

Product Description

Overview of NEMA 34 86SHD Hybrid Stepper Motor

The 86SHD Series is an industrial-grade NEMA 34 hybrid stepper motor designed for ultra-high torque and precision. With a 1.8° step angle ensuring stable positioning, it offers 10 length variants (65-150mm) and 220-1200N·cm torque to handle heavy-to-extreme load demands, from large CNC machines to industrial-scale automation systems.

Key Features & Reliability

Constructed with high-strength permanent magnets and rugged precision components, it supports 4/8-pin configurations for versatile driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 1.7-4.2kg robust design ensures structural stability under high loads. It adapts to 2.4-7.1A current and 1.7-5.95V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
86SH065DE034X-01	65	1.8°	0.34	5	1.7	290	8	1400	1.7
86SH066DE048X-01	66	1.8°	0.48	4.5	2.16	220	8	1500	1.9
86SH078DF042X-01	78	1.8°	0.42	5.5	2.31	460	4	1850	2.05
86SH080DE075X-01	80	1.8°	0.75	5	3.75	460	8	1900	2.1
86SH090DF075X-01	90	1.8°	0.75	4	3	600	4	2300	2.4
86SH096DF130X-01	96	1.8°	1.3	2.4	3.12	450	4	2700	2.8
86SH114DE100X-01	114	1.8°	1	4	4	420	8	3200	3.15
86SH118DE035X-01	118	1.8°	0.35	7.1	2.485	607	8	3500	3.3
86SH120DE100X-01	120	1.8°	1	4.5	4.5	800	8	3800	3.5
86SH150DE085X-01	150	1.8°	0.85	7	5.95	1200	8	4500	4.2

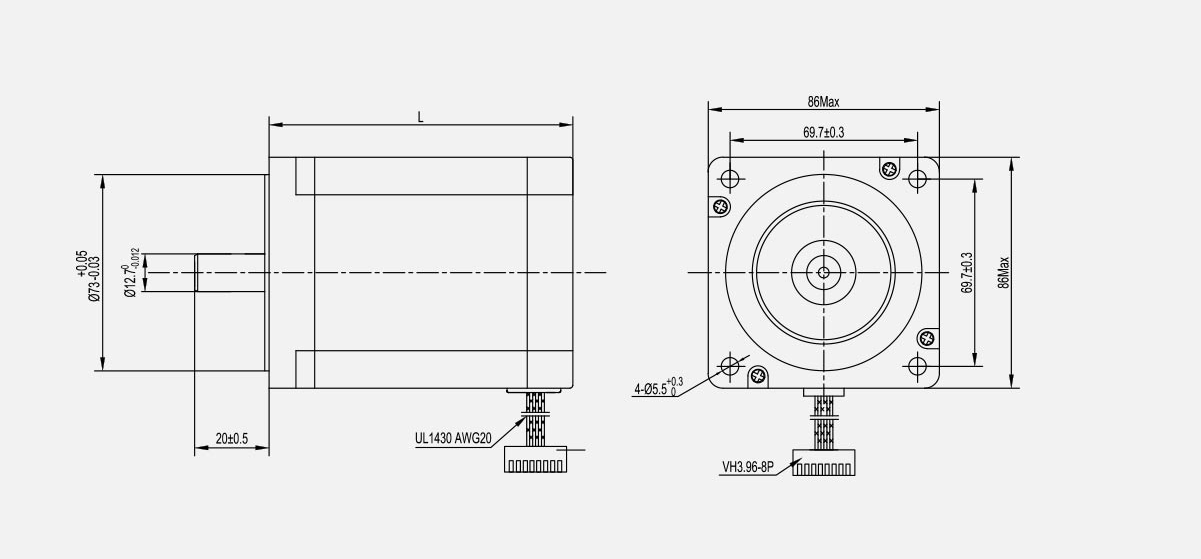

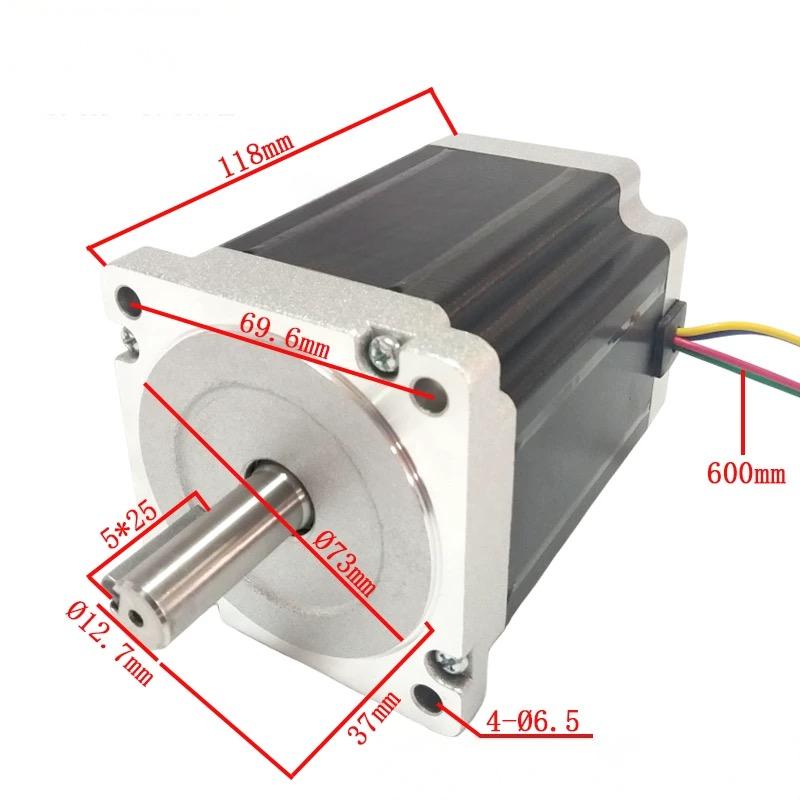

Drawing

Application

Heavy-Duty CNC Machining

Ideal for medium-to-large CNC routers, milling machines, and lathes. Its 106-320N·cm torque and NEMA 24 compatibility ensure precise material processing and heavy-load handling.

Industrial Automation

Fits large conveyors, automated assembly lines, and material handling systems. 4/6/8-pin flexibility and stable positioning support continuous operation in factory production environments.

Industrial Robotics

Used in heavy robotic arms, automated guided vehicles (AGVs), and packaging robots. IP40 protection and wide temp adaptability guarantee reliable performance in harsh industrial settings.
