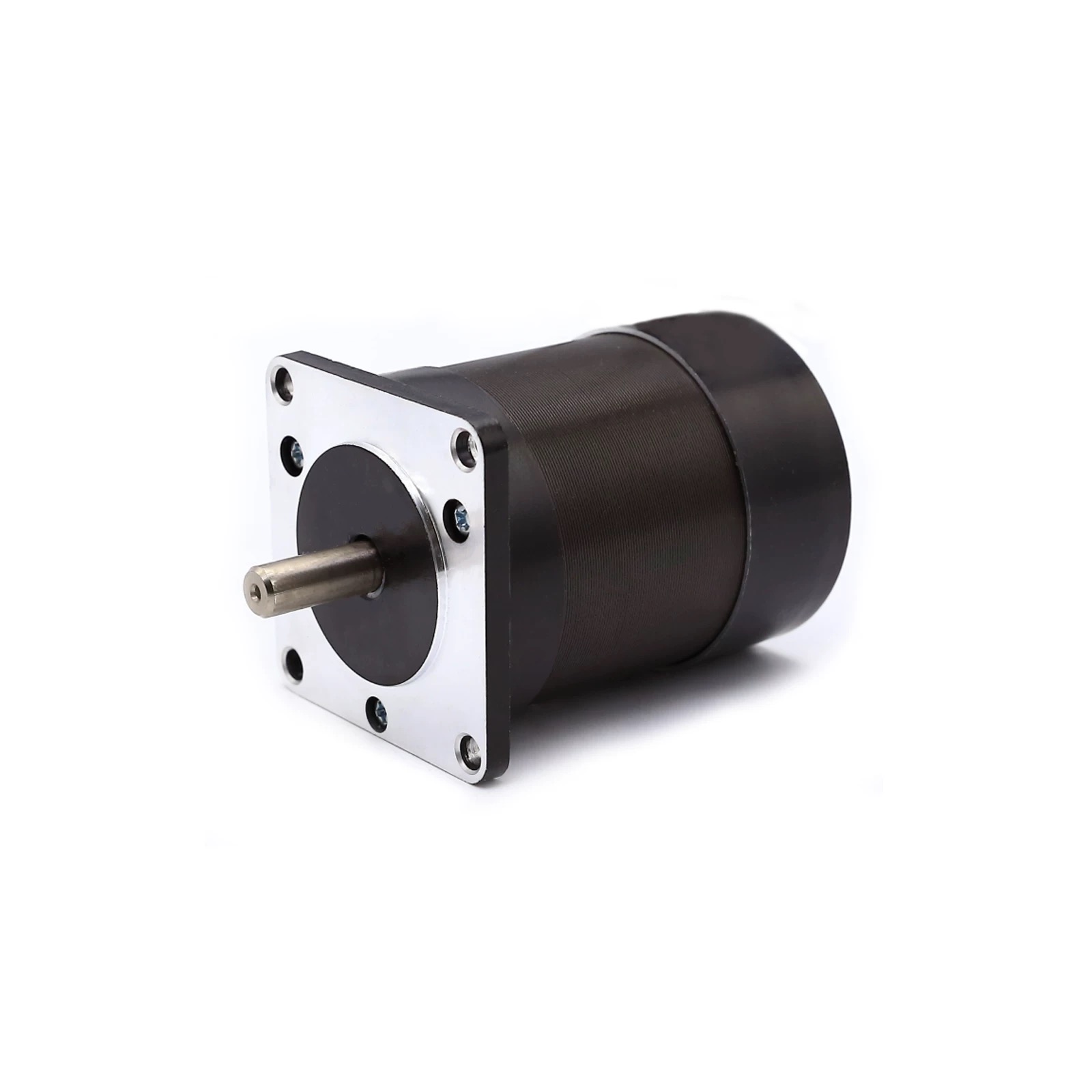

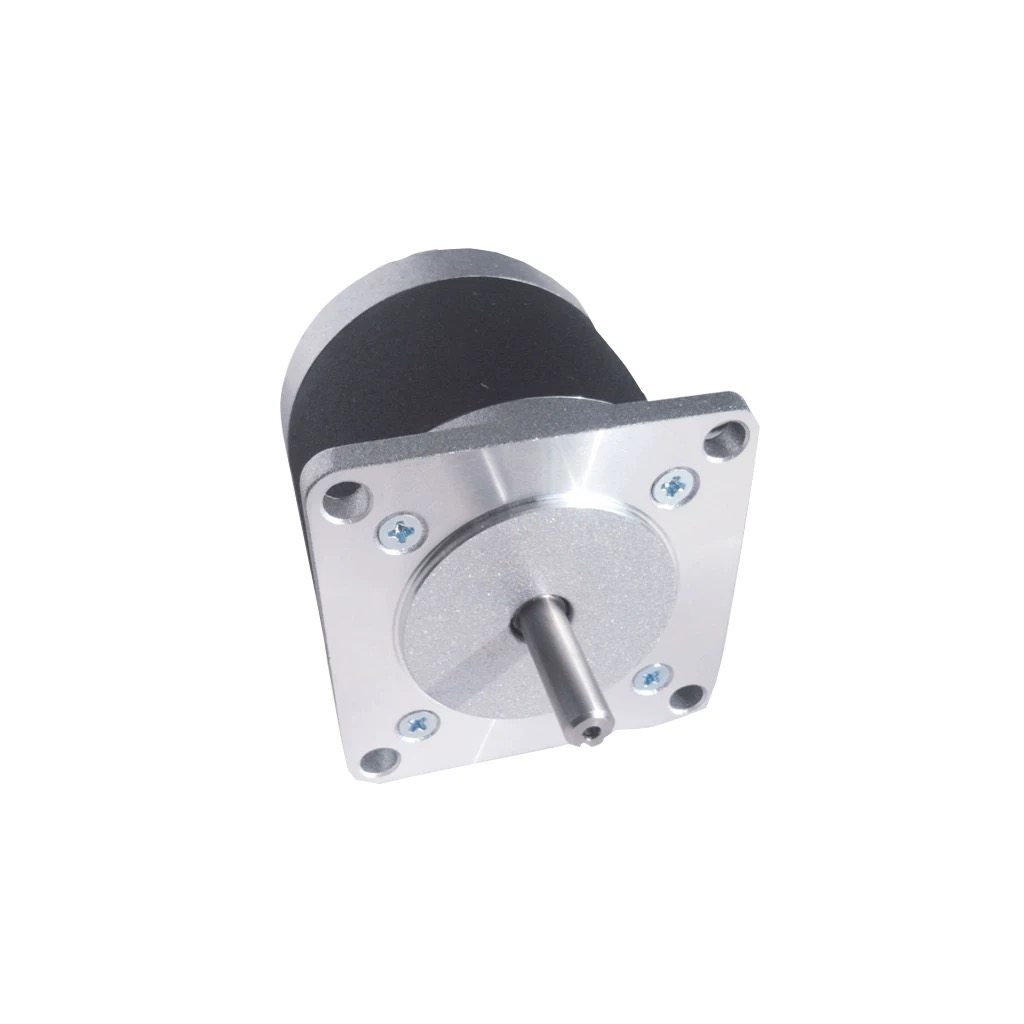

NEMA 23 57SHYD Hybrid Stepper - 41-76mm Length -10°C~50°C Operating Temp

Motor Series: NEMA 23 57SHYD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/8-pin leads, 41-76mm length, 0.36-0.96kg weight
Electrical Params: 0.5-3A rated current, 2.79-20V voltage, 0.93-40Ω phase resistance
Performance: 42-90N·cm holding torque, 55-300g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 57SHY041DF40JX-01/57SHY051DE500X-01 (5 models total)

Model:
NEMA 23 57SHYD
Brand:
SHINE
Code:
20221177


Availability:



Inquiry

Product Description

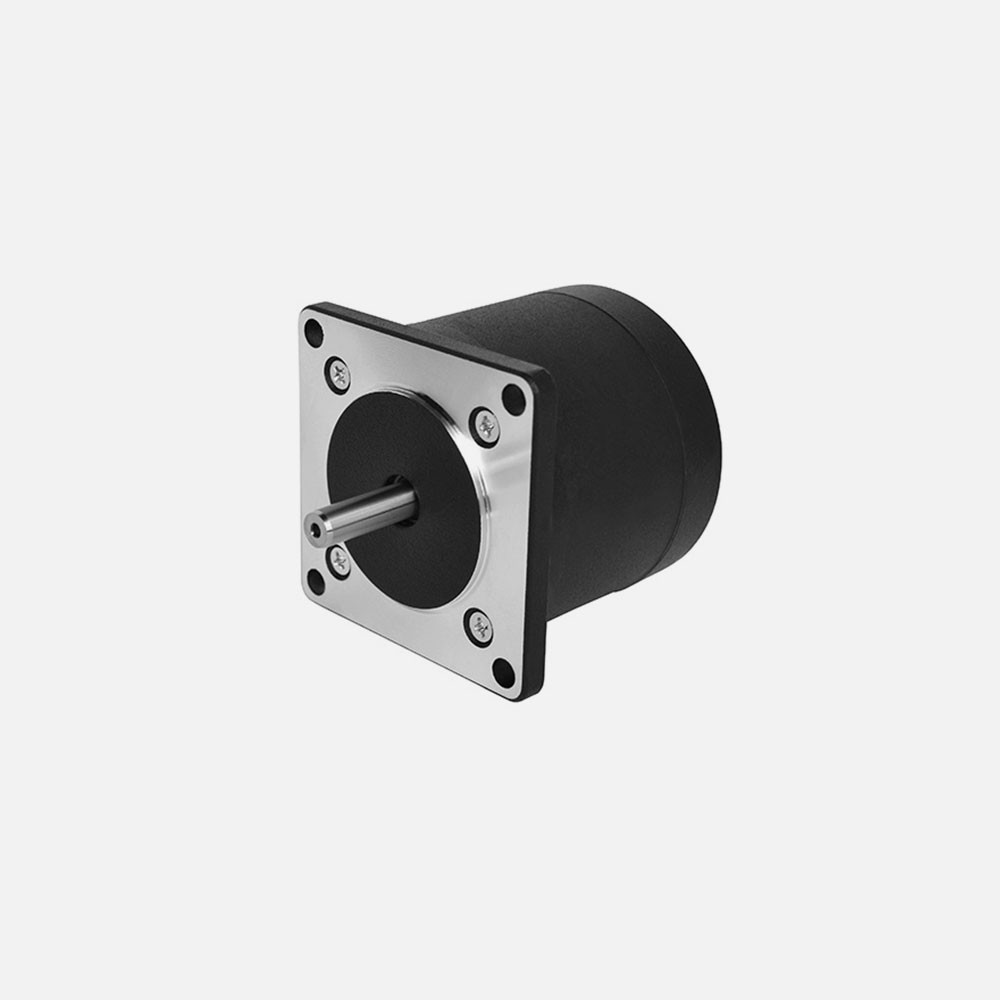

Overview of NEMA 23 57SHYD Hybrid Stepper Motor

The 57SHYD Series is a versatile NEMA 23 hybrid stepper motor engineered for industrial precision and reliability. With a 1.8° step angle ensuring stable positioning, it offers 5 length variants (41-76mm) and 42-90N·cm torque to fit mid-range load demands, from automated equipment to precision machining tools.

Key Features & Adaptability

Constructed with high-quality permanent magnets and precision-machined components, it supports 4/8-pin configurations for flexible driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 0.36-0.96kg design balances power and maneuverability. It adapts to 0.5-3A current and 2.79-20V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
57SHY041DF40JX-01	41	1.8°	40	0.5	20	42	4	55	0.36
57SHY051DE500X-01	51	1.8°	5	1	5	53	8	120	0.51
57SHY055DF200X-01	55	1.8°	2	1.4	2.8	60	4	140	0.6
57SHY056DF093X-01	56	1.8°	0.93	3	2.79	70	4	145	0.62
57SHY076DF360X-01	76	1.8°	3.6	1.5	5.4	90	4	300	0.96

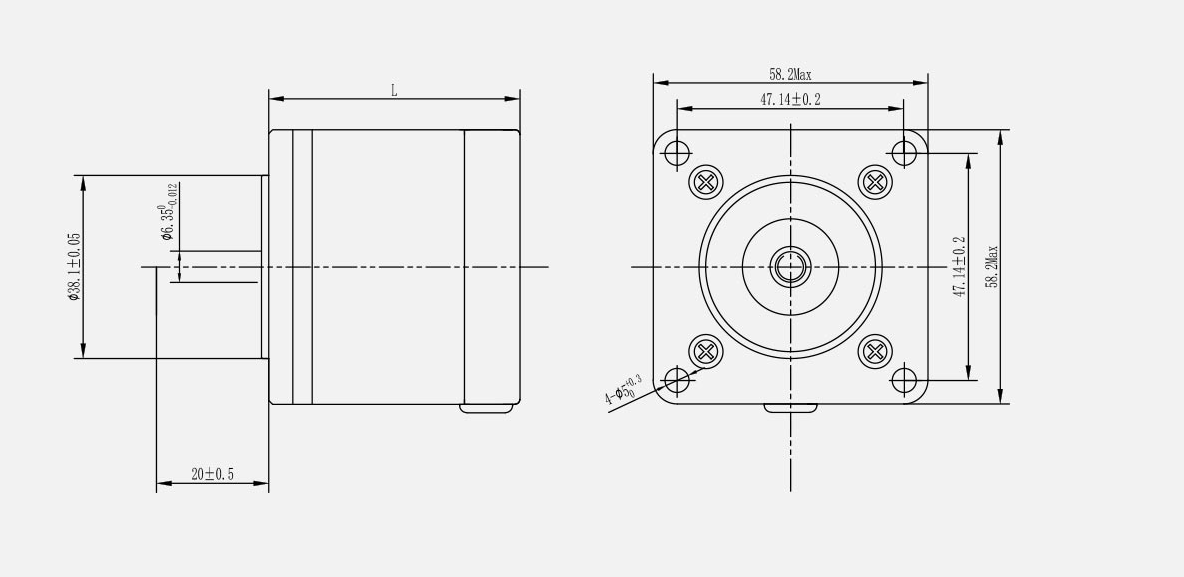

Drawing

57HYD

Application

Industrial Automation

Ideal for medium conveyors, automated assembly stations, and precision positioning systems. Its 42-90N·cm torque and NEMA 23 compatibility suit factory production lines with mid-range load requirements.

Robotics & Machinery

Fits mid-sized robotic arms, small CNC routers, and automated feeding equipment. 4/8-pin flexibility and stable positioning ensure smooth motion for industrial tasks.

Precision Equipment

Used in high-precision testing devices, automated sample handlers, and machining tools. IP40 protection and wide temp adaptability guarantee reliability in controlled industrial environments.
