NEMA 24 60SHD Series Hybrid Stepper Motor - 1.8° Step Angle 2-4.2A Current

Motor Series: NEMA 24 60SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4/6/8-pin leads, 44-100mm length, 0.62-1.65kg weight
Electrical Params: 2-4.2A rated current, 1.89-5.88V voltage, 0.45-2.1Ω phase resistance
Performance: 106-320N·cm holding torque, 280-1200g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 60SH044DF045X-01/60SH056DE210D-01 (8 models total)

Model:
NEMA 24 60SHD
Brand:
SHINE
Code:
20221179


Availability:



Inquiry

Product Description

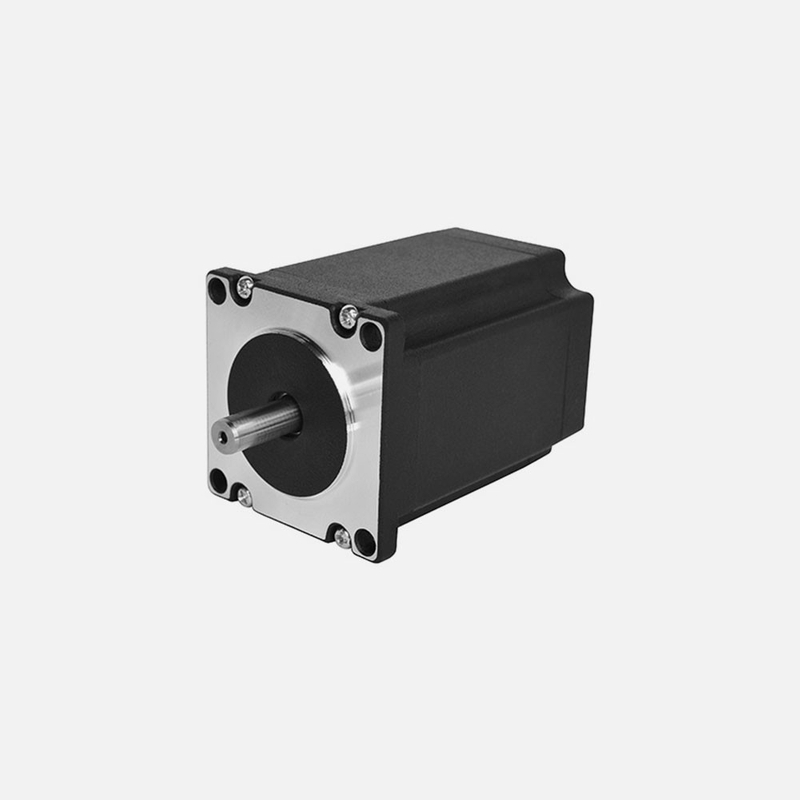

Overview of NEMA 24 60SHD Hybrid Stepper Motor

The 60SHD Series is a heavy-duty NEMA 24 hybrid stepper motor engineered for industrial-grade power and precision. With a 1.8° step angle ensuring stable positioning, it offers 8 length variants (44-100mm) and 106-320N·cm torque to handle mid-to-heavy load demands, from CNC machining to large-scale automation equipment.

Key Features & Reliability

Constructed with high-strength permanent magnets and precision-machined components, it supports 4/6/8-pin configurations for versatile driver integration. IP40 dust protection and B-class insulation enhance durability in harsh industrial environments, while its 0.62-1.65kg design balances power and structural stability. It adapts to 2-4.2A current and 1.89-5.88V voltage, maintaining consistent performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
60SH044DF045X-01	44	1.8°	0.45	4.2	1.89	106	4	280	0.62
60SH056DE210D-01	56	1.8°	2.1	2	4.2	120	8	400	0.8
60SH066DS210B-01	66	1.8°	2.1	2.8	5.88	210	6	570	1.02
60SH076DF100X-01	76	1.8°	1	3	3	210	4	720	1.18
60SH078DE076X-01	78	1.8°	0.76	3.5	2.7	208	8	750	1.2
60SH080DF075X-01	80	1.8°	0.75	4	3	200	4	800	1.3
60SH088DE130X-01	88	1.8°	1.3	3	3.9	215	8	930	1.48
60SH100DE100X-01	100	1.8°	1	3.5	3.5	320	8	1200	1.65

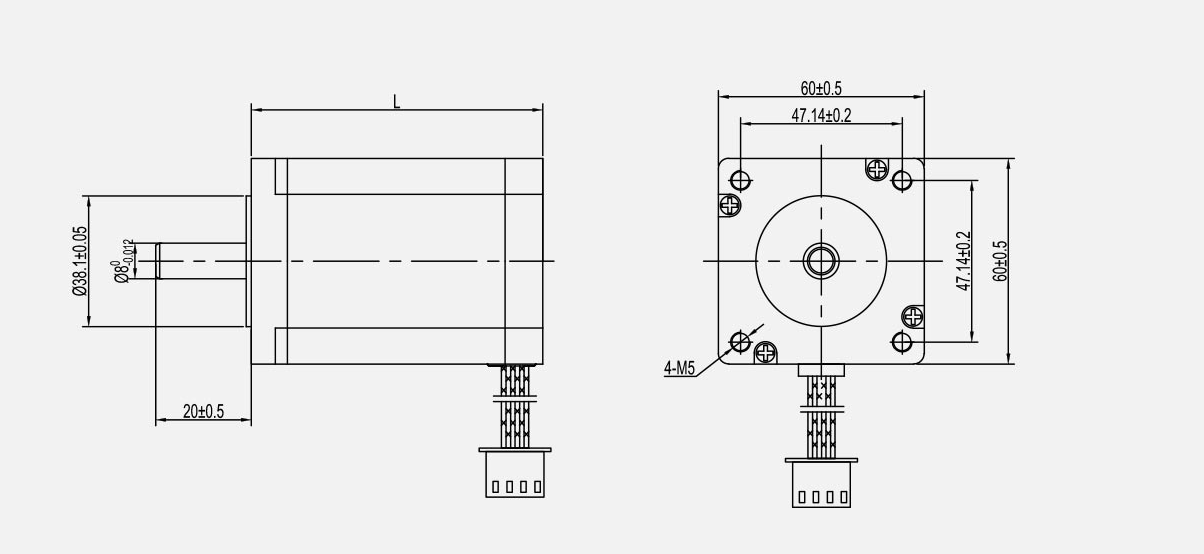

Drawing

Application

Heavy-Duty CNC Machining

Ideal for medium-to-large CNC routers, milling machines, and lathes. Its 106-320N·cm torque and NEMA 24 compatibility ensure precise material processing and heavy-load handling.

Industrial Automation

Fits large conveyors, automated assembly lines, and material handling systems. 4/6/8-pin flexibility and stable positioning support continuous operation in factory production environments.

Industrial Robotics

Used in heavy robotic arms, automated guided vehicles (AGVs), and packaging robots. IP40 protection and wide temp adaptability guarantee reliable performance in harsh industrial settings.
