NEMA 17 42SHM Series Hybrid Stepper Motor - 0.9° Step Angle 0.4-2.4A Current

Motor Series: NEMA 17 42SHM Series Hybrid Stepper Motor
Core Specs: 0.9° step angle, 4/6-pin leads, 21-48mm length, 0.13-0.38kg weight
Electrical Params: 0.4-2.4A rated current, 2.4-12V voltage, 1-30Ω phase resistance
Performance: 10-44N·cm holding torque, 16-70g·cm² rotor inertia
Temperature Ratings: -10°C~50°C operating temp, ≤80°C max temp rise, 40°C storage temp (no condensation)
Protection: IP40 protection class, insulation class B (130°C)
Models: 42SH021MF21JX-01/42SH025MF25JX-01 (6 models total)

Model:
NEMA 17 42SHM
Brand:
SHINE
Code:
20221174


Availability:



Inquiry

Product Description

Overview of NEMA 17 42SHM Hybrid Stepper Motor

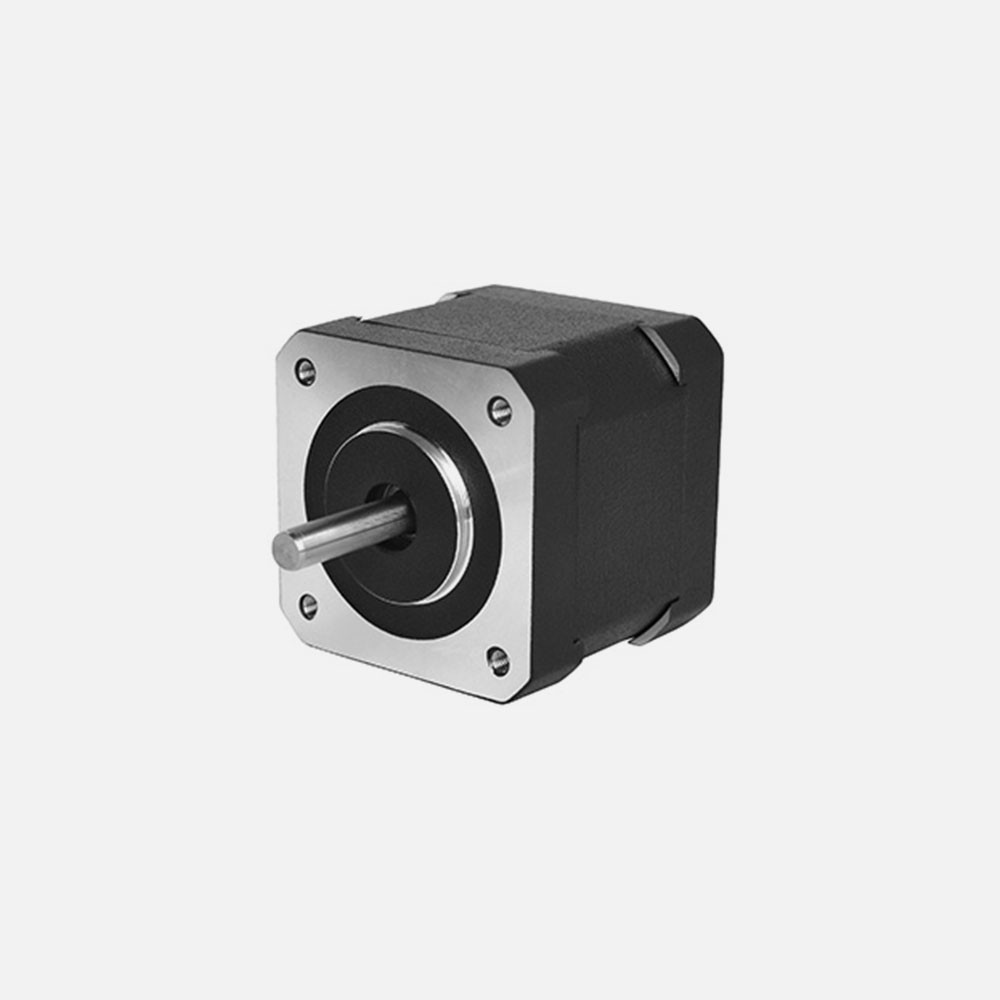

The 42SHM Series is a high-precision NEMA 17 hybrid stepper motor (42mm size aligns with NEMA 17 standard) engineered for ultra-fine motion control. Its 0.9° step angle delivers double the accuracy of 1.8° motors, with 6 length variants (21-48mm) and 10-44N·cm torque to fit light-to-mid-heavy load demands.

Key Features & Reliability

Constructed with premium permanent magnets and precision-machined rotors, it supports 4/6-pin integration for flexible driver matching. IP40 dust protection and B-class insulation enhance durability in industrial environments, while its 0.13-0.38kg design balances power and responsiveness. It adapts to 0.4-2.4A current and 2.4-12V voltage, maintaining stable performance across -10°C~50°C operating temps.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
42SH021MF21JX-01	21	0.9°	21	1.3	3	11	4	16	0.13
42SH025MF25JX-01	25	0.9°	25	0.48	12	20	4	18	0.15
42SH028MF800X-01	28	0.9°	8	0.425	3.4	10	4	20	0.18
42SH034MS30JX-01	34	0.9°	30	0.4	12	16	6	36	0.25
42SH040MF300X-01	40	0.9°	3	1.2	3.6	21	4	56	0.3
42SH048MF100X-01	48	0.9°	1	2.4	2.4	44	4	70	0.38

Drawing

42hsd

Application

Precision Industrial Automation

Fits micro-positioning systems, automated assembly stations, and precision conveyors. Its 0.9° step angle ensures ultra-fine control for component alignment and high-precision feeding.

Robotics & CNC Machinery

Ideal for medium robotic arms, small CNC mills, and 3D scanners. 4/6-pin flexibility and 10-44N·cm torque support smooth, accurate motion for intricate industrial tasks.

High-Precision Electronics

Used in professional 3D printers, laser engravers, and automated testing devices. Low inertia and stable temp adaptability ensure consistent performance in high-accuracy applications.
