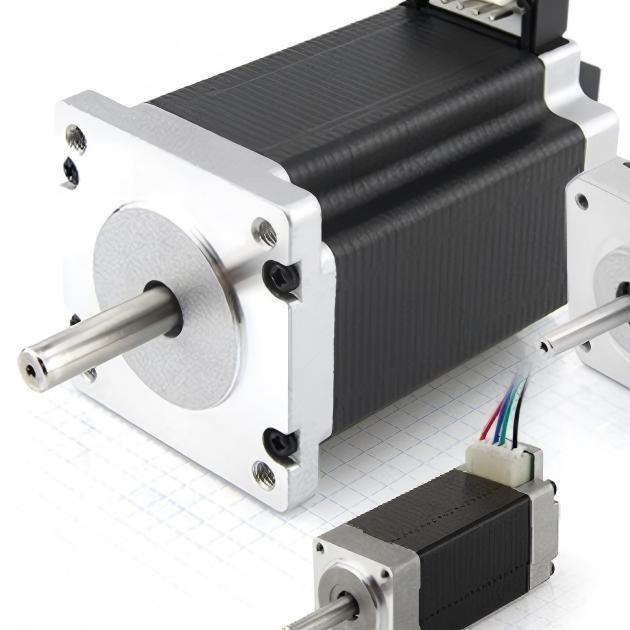

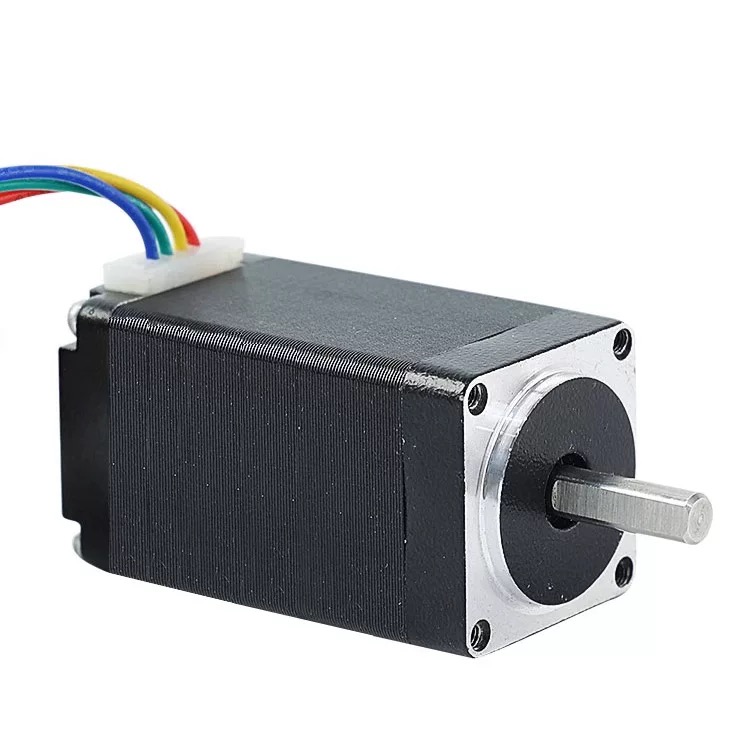

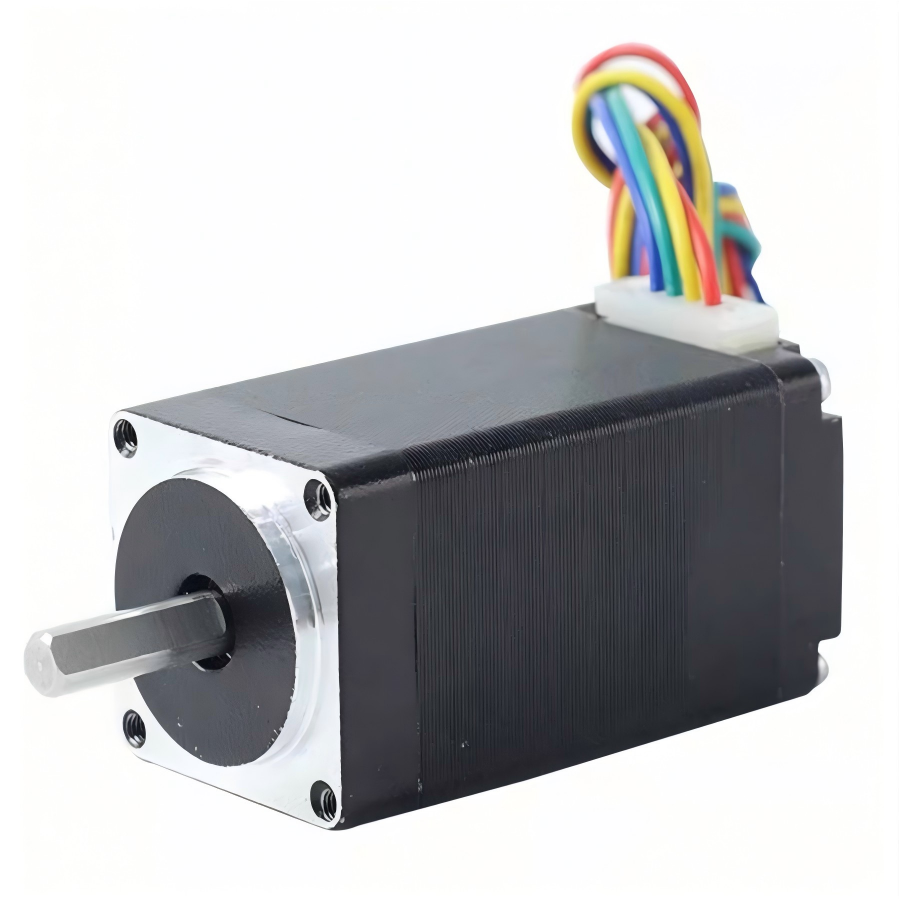

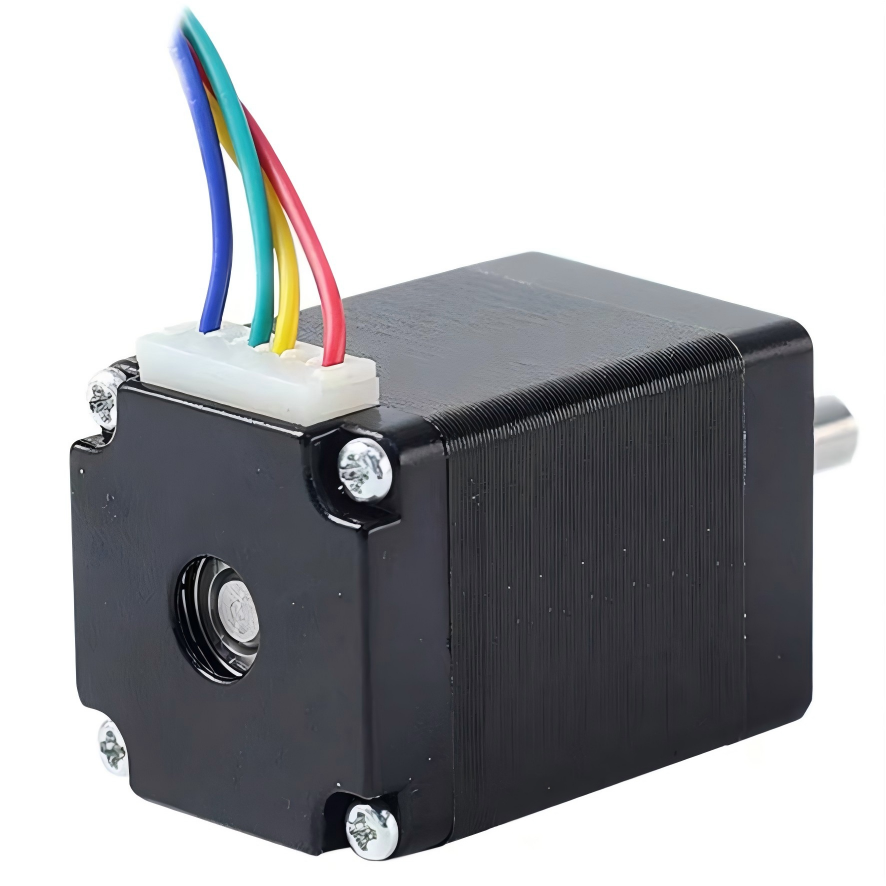

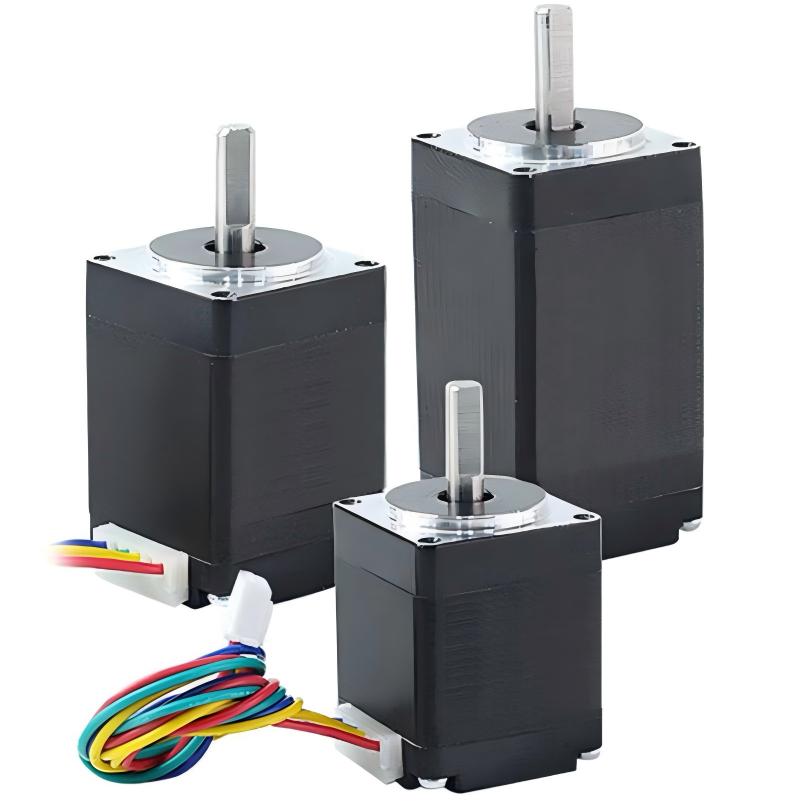

NEMA 8 20SHD Series Hybrid Stepper Motor - 1.8° Step Angle 0.2-0.8A Current

Motor Series: NEMA 8 20SHD Series Hybrid Stepper Motor
Core Specs: 1.8° step angle, 4-pin leads, 26-42mm length, 0.1-0.12kg weight
Electrical Params: 0.2-0.8A current, 1.2-4.32V voltage, 2-20Ω resistance
Performance: 1.2-3N·cm holding torque, 2-3g·cm² inertia
Operating Temp: -10°C~50°C (working), ≤80°C (max temp rise)
Models: 20SH026DF20JX-01/20SH026DF200X-01/20SH030DF650X-01/20SH033DF650X-01/20SH042DF540X-01
Applications: 3D printers, small robotics, precision instruments, automation equipment

Model:
NEMA 8 20SHD
Brand:
SHINE
Code:
20221166


Availability:



Inquiry

Product Description

Overview of NEMA 8 20SHD Hybrid Stepper Motor

The 20SHD Series is a high-precision NEMA 8 hybrid stepper motor engineered for demanding motion control applications. With a standard 1.8° step angle, it delivers exceptional positional accuracy, making it a top choice for equipment requiring precise movement and repeatability. Available in five length variants (26mm to 42mm), the series offers flexible torque options (1.2N·cm to 3N·cm) to match diverse load requirements, from lightweight small devices to mid-range precision machinery.

Core Features & Reliability

Built with high-quality permanent magnet materials and precision-machined components, the 20SHD Series ensures stable performance and long service life. It features a 4-pin lead design for easy integration, IP40 protection against dust and debris, and B-class insulation (130°C) for safe operation in harsh conditions. The motor’s lightweight construction (0.1-0.12kg) and low rotor inertia (2-3g·cm²) enable fast acceleration and deceleration, reducing energy consumption while enhancing operational efficiency.

Electrical & Environmental Adaptability

The series operates at 0.2-0.8A rated current and 1.2-4.32V voltage, with phase resistance ranging from 2Ω to 20Ω to suit different driver configurations. It performs reliably in temperatures between -10°C and 50°C, with a maximum temp rise of ≤80°C, making it suitable for both indoor industrial environments and controlled outdoor applications. Whether used in continuous operation or intermittent cycles, the 20SHD Series maintains consistent torque output and positional accuracy, minimizing maintenance needs.

Model Parameter Table

Model	Length (mm)	Step Angle	Resistance (Ω)	Current (A)	Voltage (V)	Holding Torque (N·cm)	Pin Count	Rotor Inertia (g·cm²)	Weight (kg)
20SH026DF20JX-01	26	1.8°	20	0.2	4	1.2	4	2	0.1
20SH026DF200X-01	26	1.8°	2	0.6	1.2	1.2	4	2	0.1
20SH030DF650X-01	30	1.8°	6.5	0.6	3.9	1.6	4	2.5	0.1
20SH033DF650X-01	33	1.8°	6.5	0.6	3.9	1.8	4	2.5	0.11
20SH042DF540X-01	42	1.8°	5.4	0.8	4.32	3	4	3	0.12

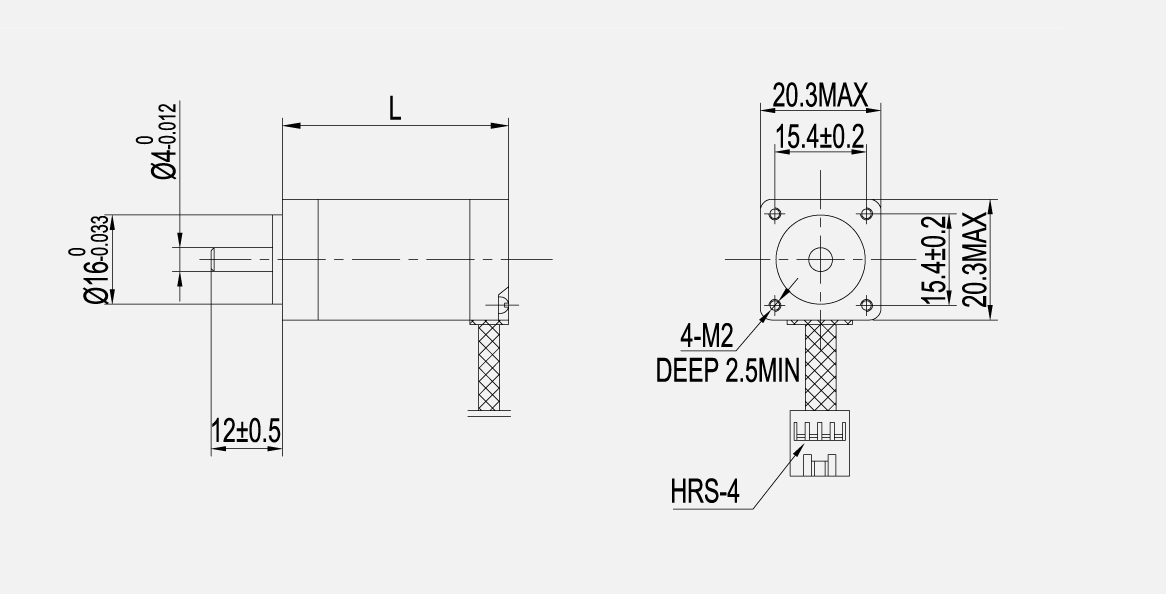

Drawing

nema8 drawing

Application

Industrial Automation

The NEMA 8 20SHD Series excels in small-scale industrial automation equipment, such as precision conveyors, automated feeding systems, and miniaturized assembly lines. Its high positional accuracy and stable torque output ensure consistent performance in repetitive tasks, while its -10°C~50°C operating range adapts to factory floors with varying temperatures. The motor’s compact size (26-42mm length) fits seamlessly into space-constrained automation setups, reducing overall equipment footprint.

Consumer & Professional Electronics

Ideal for consumer and professional electronic devices, the series is widely used in 3D printers, small CNC routers, and desktop engraving machines. It provides the precise layer-by-layer movement required for 3D printing, with low noise and vibration to ensure smooth print quality. Additionally, its lightweight design and low power consumption make it suitable for portable electronic tools, such as handheld precision instruments and mini robotics kits, where energy efficiency and maneuverability are critical.

Medical & Laboratory Equipment

In medical and laboratory settings, the 20SHD Series is employed in small diagnostic devices, sample handling systems, and micro-positioning stages. Its high precision (1.8° step angle) enables accurate manipulation of samples and components, while its IP40 protection and B-class insulation meet the hygiene and safety requirements of medical environments. The motor’s reliable performance in controlled temperature conditions ensures consistent results in sensitive laboratory applications.
