JGB60-775 DC Spur Gear Motor High Torque Low Noise Motor for Commercial Equipment

Motor Model: JGB60-775
Reduction ratio: 9-430
Starting Voltage (V): 12
Rated Voltage (V): 12
No-Load Speed (RPM ±10%): 11-555
No-Load Current (A): 0.8
Rated Load Speed (RPM ±10%): 8.8-422
Rated Load Current (A): 3.1
Rated Load Torque (Kg.cm): 2.7-100
Rated Load Power (W): 28.8
Stall Torque (Kg.cm): 7.9-270
Stall Current (A): 13
Gearbox Length (MM): 24-34
Weight (G): 490-520
Output Direction: CW/CCW

Model:
JGB60-775
Brand:
SHINE
Code:
20221126


Availability:



Inquiry

Product Description


Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB60-775-1250	9	12	555	0.8	422	3.1	2.70	28.80	7.9	13	24	490	CW	1
JGB60-775-1250	12	12	416	0.8	316	3.1	4.40	28.80	12.5	13	24	490	CW	1
JGB60-775-1250	36	12	139	0.8	105	3.1	9.70	28.80	33.5	13	28.5	500	CCW	1
JGB60-775-1250	40	12	125	0.8	95	3.1	11.50	28.80	39	13	28.5	500	CCW	1
JGB60-775-1250	83	12	60	0.8	45	3.1	25.00	28.80	69	13	30	510	CW	1
JGB60-775-1250	100	12	50	0.8	38	3.1	28.00	28.80	81	13	30	510	CW	1
JGB60-775-1250	360	12	14	0.8	10	3.1	86.00	28.80	260	13	34	520	CCW	1
JGB60-775-1250	430	12	11	0.8	8.8	3.1	100.00	28.80	270	13	34	520	CCW	1
XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB60-775-2450	9	24	555	0.5	422	2.4	3.60	57.60	11	11.4	24	490	CCW	0.8
JGB60-775-2450	12	24	416	0.5	316	2.4	4.80	57.60	15	11.4	24	490	CCW	0.8
JGB60-775-2450	36	24	139	0.5	105	2.4	12.60	57.60	37	11.4	28.5	500	CW	0.8
JGB60-775-2450	40	24	125	0.5	95	2.4	14.00	57.60	42	11.4	28.5	500	CW	0.8
JGB60-775-2450	83	24	60	0.5	45	2.4	26.00	57.60	78	11.4	30	510	CCW	0.8
JGB60-775-2450	100	24	50	0.5	38	2.4	32.00	57.60	96	11.4	30	510	CCW	0.8
JGB60-775-2450	360	24	14	0.5	10	2.4	106.00	57.60	300	11.4	34	520	CW	0.8
JGB60-775-2450	430	24	11	0.5	8.8	2.4	120.00	57.60	360	11.4	34	520

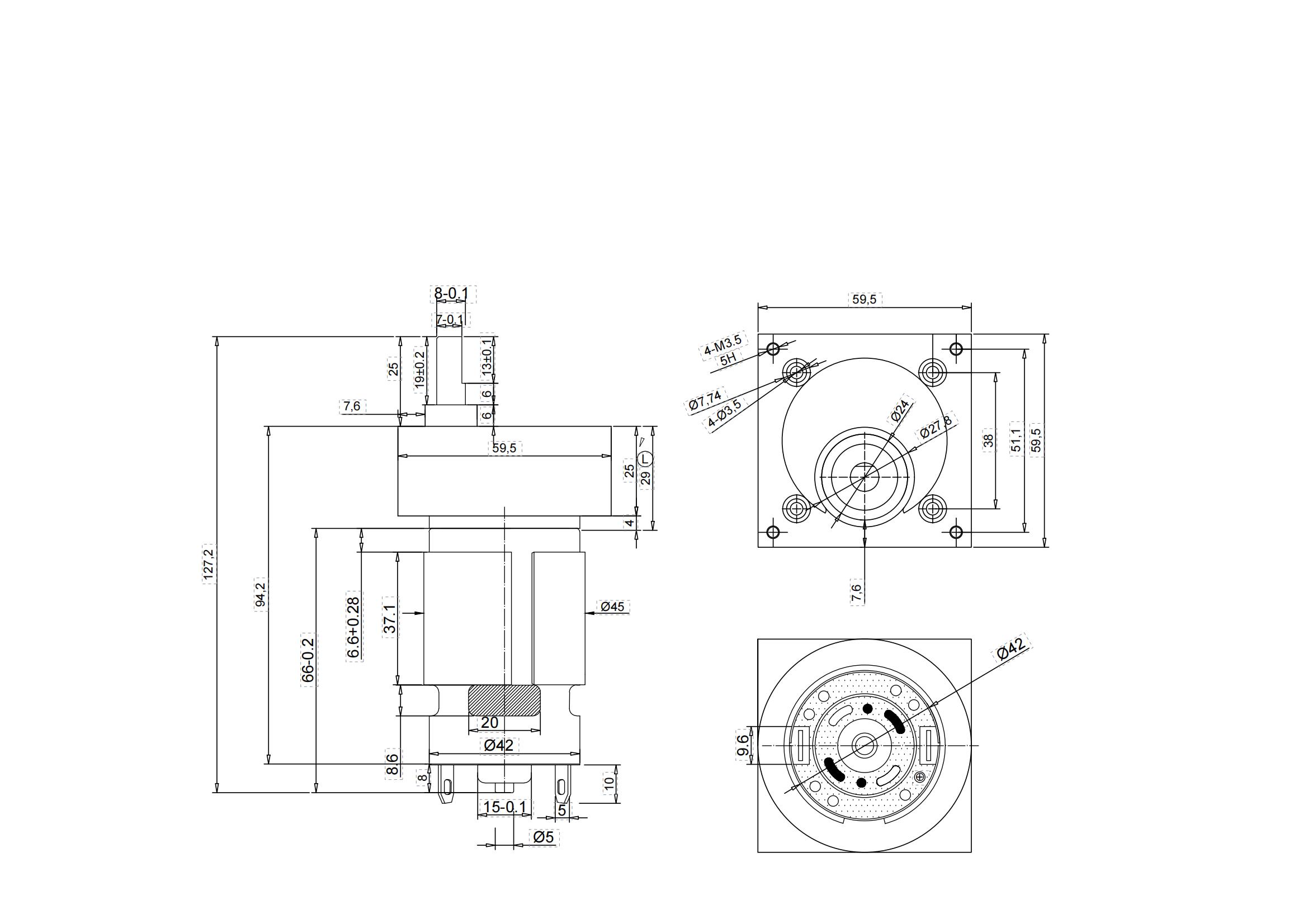

Outline Dimension

JGB60-775D819MM

Applications

Household appliances

Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks, electric fans, air purifiers, humidifiers, dehumidifiers, bread makers, electric ovens, microwave ovens, ice makers, water dispensers, electric toothbrushes, smart trash cans, kitchen food processors

Personal care

Hair curlers, massage instruments, electric hair clippers, hair dryers, electric shavers, facial cleansing brushes, electric massagers (neck/back/foot), hair straighteners, epilators, electric nail grinders, facial steamers, heated eye masks

Office equipment

Shredders, printers, projectors, banknote counting machines, coin counting machines, office printers (laser/inkjet), paper cutters, binding machines, laminators, office fans, electric staplers, cash registers, POS machines

Medical equipment

Massage chairs, electric carts, medical pumps (infusion pumps/feeding pumps), electric beds, electric wheelchairs, rehabilitation training equipment, medical ventilators, oxygen concentrators, electric hospital beds, medical trolleys, diagnostic equipment (small-sized), electric suction devices

Industrial equipment

Water and electrical valves, air switches, pumps (water pumps/air pumps), automatic door switches, automatic lubrication equipment, conveyor belts (mini), industrial fans, electric actuators, solenoid valves, industrial controllers, packaging machinery (small parts), assembly line equipment

Commercial equipment

Vending machines (snack/drink/cigarette), parking locks, ATM machines, smart lamps, commercial refrigerators, display coolers, cash dispensers, ticket vending machines, commercial air conditioners, automatic door openers, advertising light boxes, smart shelves

Robots

Manipulators (industrial/desktop), drones (consumer/industrial), service robots (hotel/medical/household), educational robots, DIY robots, cleaning robots (window/floor), delivery robots, AGV robots, robotic arms (small-sized)

Packing Details

Quantity: 25pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 27.5 kg/ctn

Net weight: 28.8 kg/ctn

Unit weight: 1100g
