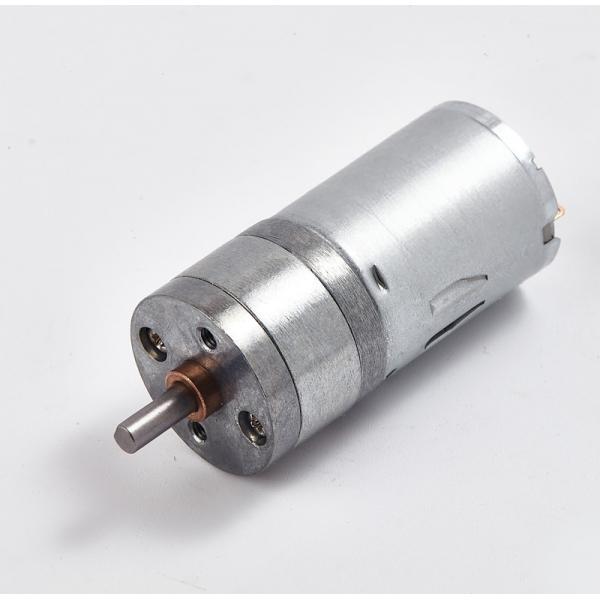

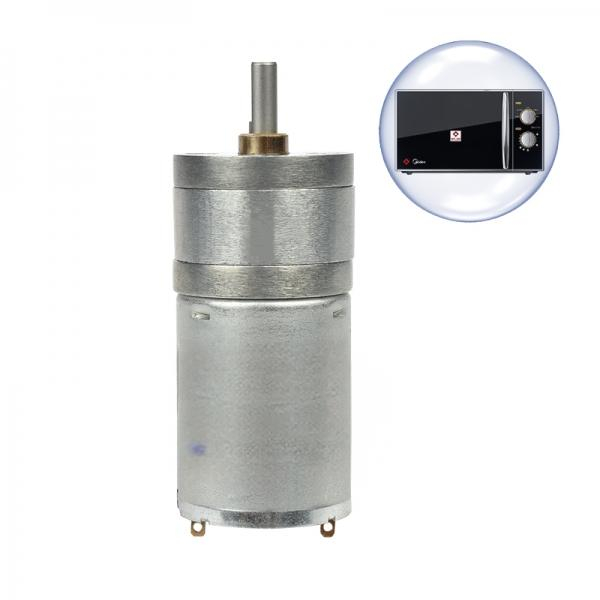

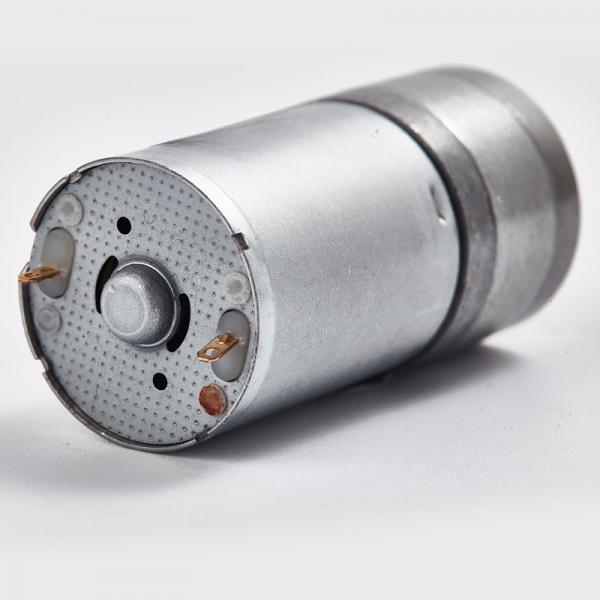

JGA25-370 DC Spur Gear Motor Multi-Voltage (6V/12V/24V) for Compact Automation

Model: JGA25-370

Voltage: 6V, 12V,

Ratio: 4.4-500

No-Load Speed: 12-1931RPM

Rated Torque: 0.1-16Kg.cm

Power: 0.8-2.1W

Gearbox Length: 17-27MM

Max Load: 9-20kg (varies by variant)

Note: Stall prohibited above 171 ratio

Model:
JGA25-370
Brand:
SHINE
Code:
20221134


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA25-370-0660	4.4	6	1360	0.1	1000	0.45	0.10	1.2	0.35	1.3	17
JGA25-370-0660	9.6	6	620	0.1	450	0.45	0.22	1.0	0.75	1.3	17
JGA25-370-0660	21.3	6	280	0.1	220	0.45	0.50	1.2	1.7	1.3	19
JGA25-370-0660	35	6	170	0.1	130	0.45	0.80	1.1	2.8	1.3	21
JGA25-370-0660	45	6	130	0.1	100	0.45	1.00	1.0	3.6	1.3	21
JGA25-370-0660	78	6	77	0.1	60	0.45	1.80	1.1	6.2	1.3	23
JGA25-370-0660	103	6	60	0.1	46	0.45	2.40	1.2	8.2	1.3	23
JGA25-370-0660	171	6	35	0.1	27	0.45	4.00	1.1	9.0	1.3	25
JGA25-370-0660	226	6	26	0.1	20	0.45	5.20	1.1	Maximum load 9kg	Do not support blocking	25
JGA25-370-0660	377	6	16	0.1	12	0.45	8.40	1.1			27
JGA25-370-0660	500	6	12	0.1	9	0.45	9.00	0.8			27
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA25-370-1260	4.4	12	1360	0.06	1000	0.45	0.10	1.0	0.4	1.3	17
JGA25-370-1260	9.6	12	620	0.06	450	0.45	0.22	1.0	0.8	1.3	17
JGA25-370-1260	21.3	12	280	0.06	220	0.45	0.50	1.2	1.7	1.3	19
JGA25-370-1260	35	12	170	0.06	130	0.45	0.82	1.1	2.8	1.3	21
JGA25-370-1260	45	12	130	0.06	100	0.45	1.00	1.0	3.6	1.3	21
JGA25-370-1260	78	12	77	0.06	60	0.45	1.84	1.2	6.2	1.3	23
JGA25-370-1260	103	12	60	0.06	46	0.45	2.44	1.2	8.2	1.3	23
JGA25-370-1260	171	12	35	0.06	27	0.45	4.00	1.1	9.0	1.3	25
JGA25-370-1260	226	12	26	0.06	20	0.45	5.35	1.1	Maximum load 9kg	Do not support blocking	25
JGA25-370-1260	377	12	16	0.06	12	0.45	8.9	1.1			27
JGA25-370-1260	500	12	12	0.06	9	0.45	9.00	0.8			27
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA25-370-2460	4.4	24	1360	0.04	1000	0.25	0.10	1.0	0.35	1.3	17
JGA25-370-2460	9.6	24	620	0.04	450	0.25	0.22	1.0	0.75	1.3	17
JGA25-370-2460	21.3	24	280	0.04	220	0.25	0.50	1.2	1.7	1.3	19
JGA25-370-2460	35	24	170	0.04	130	0.25	0.82	1.1	2.8	1.3	21
JGA25-370-2460	45	24	130	0.04	100	0.25	1.00	1.0	3.6	1.3	21
JGA25-370-2460	78	24	77	0.04	60	0.25	1.84	1.2	6.2	1.3	23
JGA25-370-2460	103	24	60	0.04	46	0.25	2.44	1.2	8.2	1.3	23
JGA25-370-2460	171	24	35	0.04	27	0.25	4.00	1.1	9.0	1.3	25
JGA25-370-2460	226	24	26	0.04	20	0.25	5.35	1.1	Maximum load 9kg	Do not support blocking	25
JGA25-370-2460	377	24	16	0.04	12	0.25	8.90	1.1			27
JGA25-370-2460	500	24	12	0.04	9	0.25	9.00	0.8			27
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGA25-370-1285	4.4	12	1931	0.1	1370	0.33	0.14	2.0	0.5	1.5	17
JGA25-370-1285	9.6	12	915	0.1	640	0.33	0.30	2.0	0.2	1.5	17
JGA25-370-1285	21.3	12	399	0.1	280	0.33	0.67	2.0	2.4	1.5	19
JGA25-370-1285	35	12	242	0.1	175	0.33	1.10	2.0	3.9	1.5	21
JGA25-370-1285	45	12	188	0.1	130	0.33	1.43	1.9	5.0	1.5	21
JGA25-370-1285	78	12	109	0.1	76	0.33	2.50	2.0	8.6	1.5	23
JGA25-370-1285	103	12	83	0.1	62	0.33	3.30	2.1	11.4	1.5	23
JGA25-370-1285	171	12	50	0.1	35	0.33	5.40	2.0	18.8	1.5	25
JGA25-370-1285	226	12	39	0.1	26	0.33	7.20	2.0	Maximum load 20kg	Do not support blocking	25
JGA25-370-1285	377	12	22	0.1	16	0.33	12	2.0			27
JGA25-370-1285	500	12	18	0.1	12	0.33	16.00	2.0			27
工程师建议 The engineer recommends：171速比以上不支持堵转 Blocked(Stall) rotor is not supported above 171 Ratio

Outline Dimension

JGA25-370 M4 10MM D SHAFT DIMENSION尺寸图

Applications

Household appliances: Electric curtains, smart toilets, mini coffee machines
Personal care: Mini massage equipment, electric hair clippers, portable curling irons
Office equipment: Small paper shredders, portable printers, mini banknote counters
Medical equipment: Portable medical pumps, lightweight electric bed accessories
Industrial equipment: Small water/electricity valves, mini automatic door switches
Commercial equipment: Mini vending machines, smart lamps, compact parking locks
Robots: Desktop manipulators, mini drones, small service robots

Household appliances: Electric curtains, smart toilets, mini coffee machines, compact sweeping robots
Personal care: Mini massage devices, electric hair clippers, portable curling irons
Office equipment: Small paper shredders, portable printers, mini banknote counters
Medical equipment: Portable medical pumps, lightweight electric bed accessories
Industrial equipment: Small water/electricity valves, mini automatic door switches
Commercial equipment: Mini vending machines, smart lamps, compact parking locks
Robots: Desktop manipulators, mini drones, small service robots
