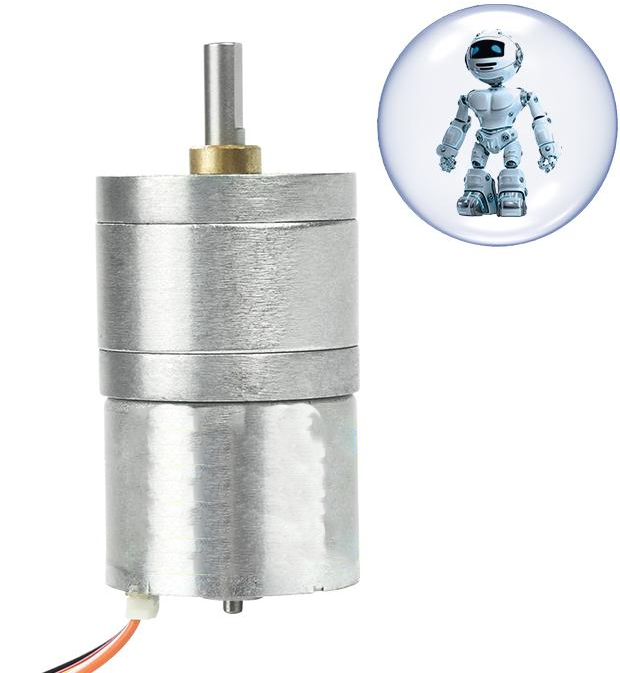

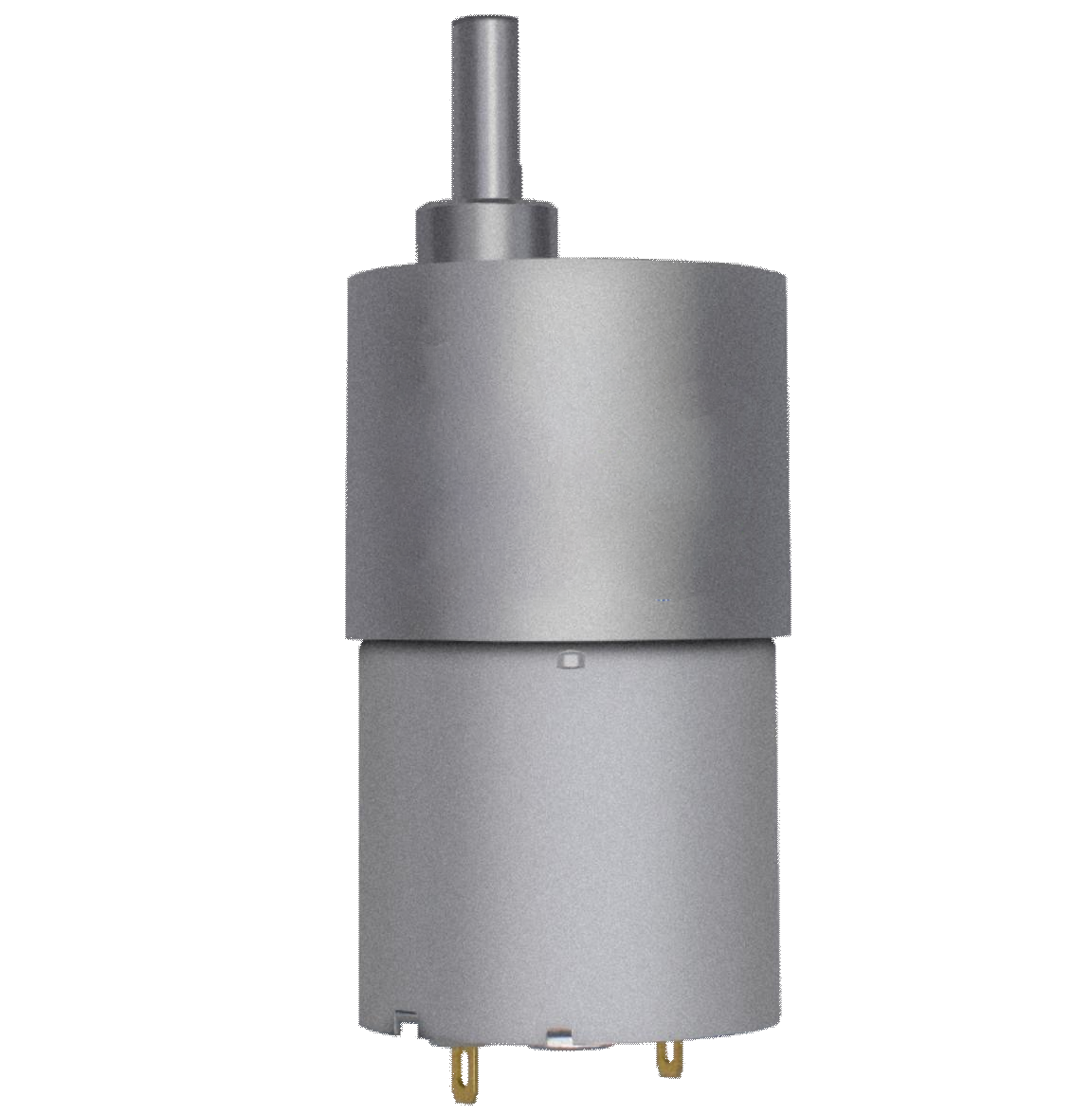

DC Gear Motor JGB37-3530 Φ6mm 15MM Spur Gear High Torque Electric Motor for DIY Robotics

DC Gear Motor JGB37-3530 Φ6mm 15MM Spur Gear High Torque Electric Motor for DIY Robotics

Rated Voltage: 12-24V
Reduction Ratio: 6.25-810I
No-load speed(RPM): 7~1600rpm
No-Load Current mA(≤): 70-180mA
Rated Speed(RPM): 6-1231rpm
Rated Current mA(≤): 300-1200mA
Rated Torque(Kg,cm): 0.3-35kg,cm
Stall/Maximum Torque (Kg,cm): 1.2-140kg,cm
Stall Current(A) : 1.5-4.3A
Shaft: 416 Steel, Φ6.0 Length 15mm ,
Gear: powder gear , copper gear

Model:
JGB37-3530
Brand:
SHINE
Code:
20221123


Availability:



Inquiry

Product Description

Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-1260	6.25	12	960	0.1	738	0.69	0.35	8.20	1.4	2.3	19	175	CW	0.7
JGB37-3530-1260	10	12	600	0.1	462	0.69	0.50	8.20	2	2.3	19	175	CW	0.7
JGB37-3530-1260	18.8	12	320	0.1	246	0.69	1.00	8.20	4	2.3	22	180	CCW	0.7
JGB37-3530-1260	30	12	200	0.1	154	0.69	1.60	8.20	6.4	2.3	22	180	CCW	0.7
JGB37-3530-1260	56	12	107	0.1	82	0.69	2.60	8.20	10.4	2.3	24	185	CW	0.7
JGB37-3530-1260	70	12	85	0.1	65	0.69	3.30	8.20	13.2	2.3		185	CW	0.7
JGB37-3530-1260	90	12	66	0.1	51	0.69	4.30	8.20	17.2	2.3		185	CW	0.7
JGB37-3530-1260	131	12	45	0.1	35	0.69	5.70	8.20	22.8	2.3	26.5	190	CCW	0.7
JGB37-3530-1260	169	12	35	0.1	27	0.69	7.30	8.20	29.2	2.3		190	CCW	0.7
JGB37-3530-1260	210	12	28	0.1	21	0.69	9.10	8.20	36.4	2.3		190	CCW	0.7
JGB37-3530-1260	270	12	22	0.1	17	0.69	11.70	8.20	46.8	2.3		190	CCW	0.7
JGB37-3530-1260	394	12	15	0.1	11	0.69	15.40	8.20	61.6	2.3	29	200	CW	0.7
JGB37-3530-1260	506	12	12	0.1	9	0.69	19.80	8.20	79.2	2.3		200	CW	0.7
JGB37-3530-1260	630	12	9	0.1	7	0.69	24.70	8.20	98.8	2.3		200	CW	0.7
JGB37-3530-1260	810	12	7	0.1	6	0.69	31.70	8.20	126.8	2.3		200	CW	0.7
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-2460	6.25	24	960	0.07	738	0.3	0.30	7.20	1.2	1.5	19	175	CW	1.4
JGB37-3530-2460	10	24	600	0.07	462	0.3	0.50	7.20	2	1.5	19	175	CW	1.4
JGB37-3530-2460	18.8	24	320	0.07	246	0.3	1.00	7.20	4	1.5	22	180	CCW	1.4
JGB37-3530-2460	30	24	200	0.07	154	0.3	1.60	7.20	6.4	1.5	22	180	CCW	1.4
JGB37-3530-2460	56	24	107	0.07	82	0.3	2.90	7.20	11.6	1.5	24	185	CW	1.4
JGB37-3530-2460	70	24	85	0.07	65	0.3	3.80	7.20	15.2	1.5		185	CW	1.4
JGB37-3530-2460	90	24	66	0.07	51	0.3	4.70	7.20	18.8	1.5		185	CW	1.4
JGB37-3530-2460	131	24	45	0.07	35	0.3	6.10	7.20	24.4	1.5	26.5	190	CCW	1.4
JGB37-3530-2460	169	24	35	0.07	27	0.3	8.00	7.20	32	1.5		190	CCW	1.4
JGB37-3530-2460	210	24	28	0.07	21	0.3	10.00	7.20	40	1.5		190	CCW	1.4
JGB37-3530-2460	270	24	22	0.07	17	0.3	12.70	7.20	50.8	1.5		190	CCW	1.4
JGB37-3530-2460	394	24	15	0.07	11	0.3	16.70	7.20	66.8	1.5	29	200	CW	1.4
JGB37-3530-2460	506	24	12	0.07	9	0.3	21.40	7.20	85.6	1.5		200	CW	1.4
JGB37-3530-2460	630	24	9	0.07	7	0.3	26.70	7.20	106.8	1.5		200	CW	1.4
JGB37-3530-2460	810	24	7	0.07	6	0.3	35.00	2.20	140	1.5		200	CW	1.4
XYT Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
XYT Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-12100	6.25	12	1600	0.18	1231	1.2	0.45	14.40	1.8	4.3	19	175	CW	0.9
JGB37-3530-12100	10	12	1000	0.18	769	1.2	0.72	14.40	2.88	4.3	19	175	CW	0.9
JGB37-3530-12100	18.8	12	533	0.18	410	1.2	1.30	14.40	5.2	4.3	22	180	CCW	0.9
JGB37-3530-12100	30	12	333	0.18	256	1.2	2.00	14.40	8	4.3	22	180	CCW	0.9
JGB37-3530-12100	56	12	178	0.18	137	1.2	3.40	14.40	13.6	4.3	24	185	CW	0.9
JGB37-3530-12100	70	12	142	0.18	111	1.2	4.30	14.40	17.2	4.3		185	CW	0.9
JGB37-3530-12100	90	12	111	0.18	85	1.2	5.50	14.40	22	4.3		185	CW	0.9
JGB37-3530-12100	131	12	76	0.18	59	1.2	7.30	14.40	29.2	4.3	26.5	190	CCW	0.9
JGB37-3530-12100	169	12	59	0.18	46	1.2	9.40	14.40	37.6	4.3		190	CCW	0.9
JGB37-3530-12100	210	12	47	0.18	37	1.2	11.70	14.40	46.8	4.3		190	CCW	0.9
JGB37-3530-12100	270	12	37	0.18	28	1.2	15.00	14.40	60	4.3		190	CCW	0.9
JGB37-3530-12100	394	12	25	0.18	20	1.2	19.80	14.40	79.2	4.3	29	200	CW	0.9
JGB37-3530-12100	506	12	20	0.18	15	1.2	25.40	14.40	101.6	4.3		200	CW	0.9
JGB37-3530-12100	630	12	15	0.18	12	1.2	31.00	14.40	124	4.3		200	CW	0.9
JGB37-3530-12100	810	12	12	0.18	10	1.2	35.00	14.40	140	4.3		200	CW	0.9
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGB37-3530-24100	6.25	24	1600	0.08	1231	0.63	0.50	14.40	2	3	19	175	CCW	1.3
JGB37-3530-24100	10	24	1000	0.08	769	0.63	0.80	14.40	3.2	3	19	175	CCW	1.3
JGB37-3530-24100	18.8	24	533	0.08	410	0.63	1.30	14.40	5.2	3	22	180	CW	1.3
JGB37-3530-24100	30	24	333	0.08	256	0.63	2.00	14.40	8	3	22	180	CW	1.3
JGB37-3530-24100	56	24	178	0.08	137	0.63	3.60	14.40	14.4	3	24	185	CCW	1.3
JGB37-3530-24100	70	24	142	0.08	111	0.63	4.50	14.40	18	3		185	CCW	1.3
JGB37-3530-24100	90	24	111	0.08	85	0.63	5.80	14.40	23.2	3		185	CCW	1.3
JGB37-3530-24100	131	24	76	0.08	59	0.63	7.70	14.40	30.8	3	26.5	190	CW	1.3
JGB37-3530-24100	169	24	59	0.08	46	0.63	9.90	14.40	39.6	3		190	CW	1.3
JGB37-3530-24100	210	24	47	0.08	37	0.63	12.30	14.40	49.2	3		190	CW	1.3
JGB37-3530-24100	270	24	37	0.08	28	0.63	15.90	14.40	63.6	3		190	CW	1.3
JGB37-3530-24100	394	24	25	0.08	20	0.63	20.80	14.40	83.2	3	29	200	CCW	1.3
JGB37-3530-24100	506	24	20	0.08	15	0.63	26.80	14.40	107.2	3		200	CCW	1.3
JGB37-3530-24100	630	24	15	0.08	12	0.63	33.00	14.40	132	3		200	CCW	1.3
JGB37-3530-24100	810	24	12	0.08	10	0.63	35.00	14.40	140	3		200	CCW

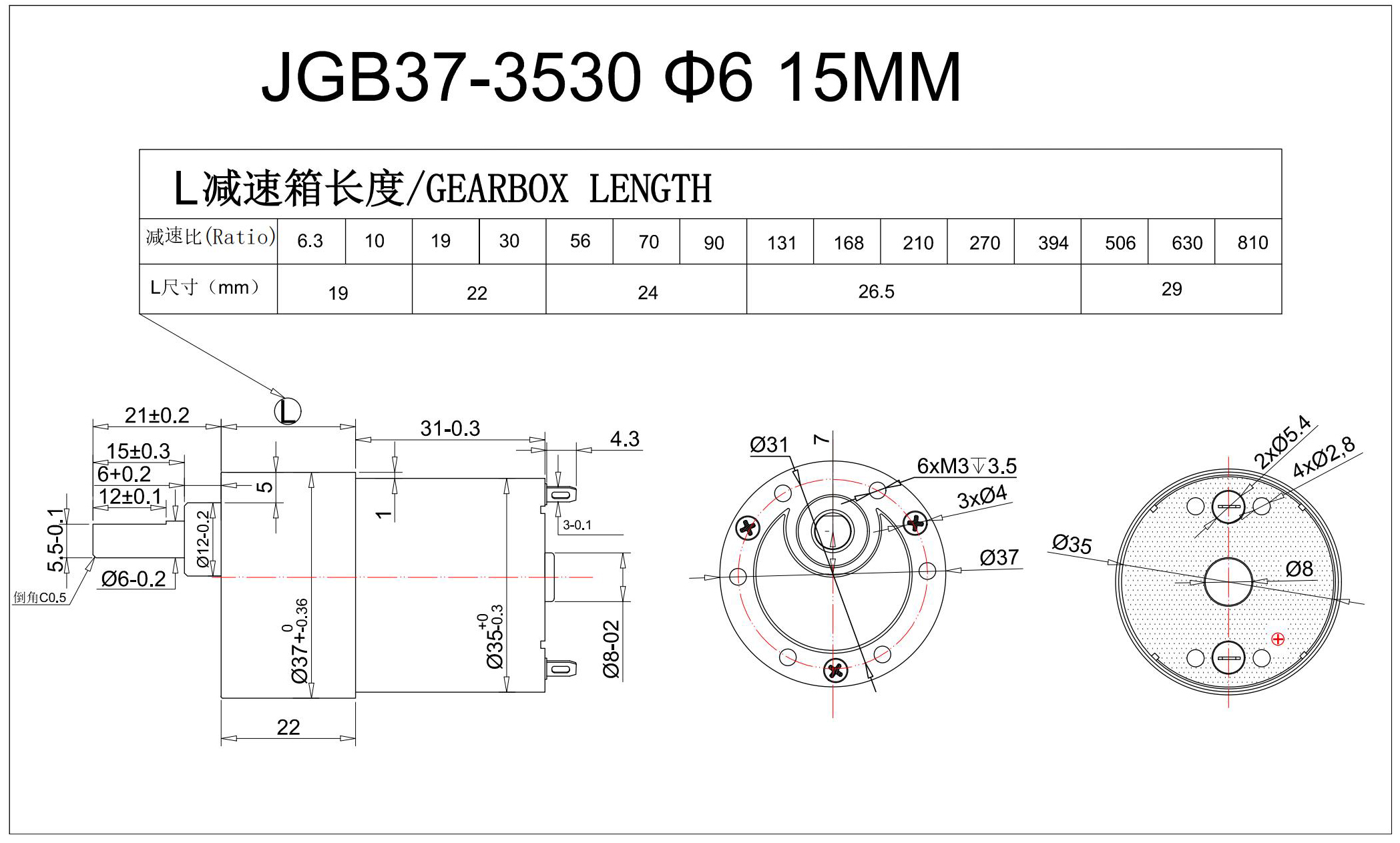

Outline Dimension

JGB37_3530-288-29

Applications

Household appliances

Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks, electric fans, air purifiers, humidifiers, dehumidifiers, bread makers, electric ovens, microwave ovens, ice makers, water dispensers, electric toothbrushes, smart trash cans, kitchen food processors

Personal care

Hair curlers, massage instruments, electric hair clippers, hair dryers, electric shavers, facial cleansing brushes, electric massagers (neck/back/foot), hair straighteners, epilators, electric nail grinders, facial steamers, heated eye masks

Office equipment

Shredders, printers, projectors, banknote counting machines, coin counting machines, office printers (laser/inkjet), paper cutters, binding machines, laminators, office fans, electric staplers, cash registers, POS machines

Medical equipment

Massage chairs, electric carts, medical pumps (infusion pumps/feeding pumps), electric beds, electric wheelchairs, rehabilitation training equipment, medical ventilators, oxygen concentrators, electric hospital beds, medical trolleys, diagnostic equipment (small-sized), electric suction devices

Industrial equipment

Water and electrical valves, air switches, pumps (water pumps/air pumps), automatic door switches, automatic lubrication equipment, conveyor belts (mini), industrial fans, electric actuators, solenoid valves, industrial controllers, packaging machinery (small parts), assembly line equipment

Commercial equipment

Vending machines (snack/drink/cigarette), parking locks, ATM machines, smart lamps, commercial refrigerators, display coolers, cash dispensers, ticket vending machines, commercial air conditioners, automatic door openers, advertising light boxes, smart shelves

Robots

Manipulators (industrial/desktop), drones (consumer/industrial), service robots (hotel/medical/household), educational robots, DIY robots, cleaning robots (window/floor), delivery robots, AGV robots, robotic arms (small-sized)

Packing Details

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross Weight: 20.8 kg/ctn

Net weight: 20.0 kg/ctn

Single weight: 200g

EPE Pearl Cotton Packaging

Standard carton packaging
