JGA16-030
SHINE
20221136
Product Description
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | 输出Output | 启动电压Starting Voltage(V) | 减速箱长度Gearbox Length (MM) | 重量Weight(G) | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | 转向 Direction | |||||
| GA16Y-030-12120 | 35.7 | 12 | 336 | 0.035 | 240 | 0.05 | 0.20 | 0.60 | 0.70 | 0.25 | CW | 1.5 | 12.7 | 28 |
| 50.7 | 12 | 240 | 0.025 | 180 | 0.05 | 0.35 | 0.60 | 1.00 | 0.25 | CCW | 1.5 | 14.2 | ||
| 100 | 12 | 120 | 0.025 | 90 | 0.05 | 0.60 | 0.60 | 1.90 | 0.25 | CCW | 1.5 | 14.2 | ||
| 201 | 12 | 60 | 0.025 | 45 | 0.05 | 1.30 | 0.60 | 3.90 | 0.25 | CW | 1.5 | 15.7 | ||
| 284 | 12 | 42 | 0.025 | 30 | 0.05 | 1.60 | 0.60 | 4.30 | 0.25 | CW | 1.5 | 15.7 | ||
| 355 | 12 | 34 | 0.025 | 23 | 0.05 | 2.00 | 0.60 | 5.10 | 0.25 | CW | 1.5 | 15.7 | ||
| 504 | 12 | 24 | 0.025 | 16 | 0.05 | 3.10 | 0.60 | 6.70 | 0.25 | CCW | 1.5 | 17.2 | ||
| 800 | 12 | 15 | 0.025 | 10 | 0.05 | 4.50 | 0.60 | 10.00 | 0.25 | CCW | 1.5 | 17.2 | ||
| 1000 | 12 | 12 | 0.025 | 8 | 0.05 | 5.00 | 0.60 | 12.00 | 0.25 | CCW | 1.5 | 17.2 | ||
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | 输出Output | 启动电压Starting Voltage(V) | 减速箱长度Gearbox Length (MM) | 重量Weight(G) | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | 转向 Direction | |||||
| GA16Y-030-06120 | 35.7 | 6 | 336 | 0.07 | 280 | 0.14 | 0.30 | 0.80 | 0.80 | 0.65 | CW | 1.5 | 12.7 | 28 |
| 50.7 | 6 | 240 | 0.06 | 200 | 0.14 | 0.40 | 0.80 | 1.30 | 0.55 | CCW | 1.5 | 14.2 | ||
| 100 | 6 | 120 | 0.06 | 95 | 0.14 | 0.70 | 0.80 | 2.60 | 0.55 | CCW | 1.5 | 14.2 | ||
| 201 | 6 | 60 | 0.06 | 46 | 0.14 | 1.20 | 0.80 | 4.50 | 0.55 | CW | 1.5 | 15.7 | ||
| 284 | 6 | 42 | 0.06 | 30 | 0.14 | 1.50 | 0.80 | 5.20 | 0.55 | CW | 1.5 | 15.7 | ||
| 355 | 6 | 34 | 0.06 | 26 | 0.14 | 1.70 | 0.80 | 6.00 | 0.55 | CW | 1.5 | 15.7 | ||
| 504 | 6 | 24 | 0.06 | 20 | 0.14 | 2.00 | 0.80 | 7.20 | 0.55 | CCW | 1.5 | 17.2 | ||
| 800 | 6 | 15 | 0.06 | 12 | 0.14 | 2.60 | 0.80 | 9.40 | 0.55 | CCW | 1.5 | 17.2 | ||
| 1000 | 6 | 12 | 0.06 | 9 | 0.14 | 3.40 | 0.80 | 12.00 | 0.55 | CCW | 1.5 | 17.2 | ||
| 工程师建议 The engineer recommends：500减速比以上不支持堵转 Blocked(Stall) rotor is not supported above 500 ratio | ||||||||||||||

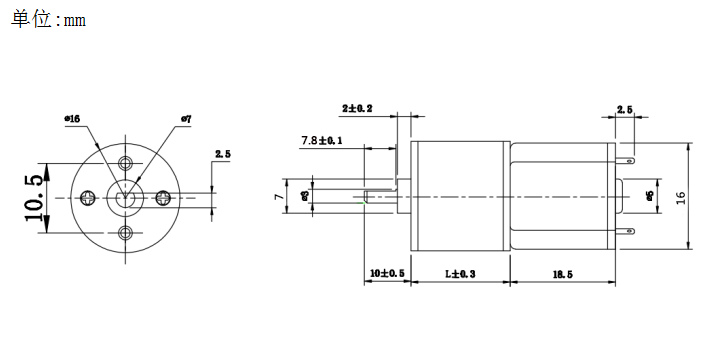

Outline Dimension
Applications
Household appliances: Micro electric curtain gears, tiny smart toilet components, mini smart door lock drivers
Personal care: Ultra-portable electric hair clippers, micro massage gadgets, compact curling irons
Office equipment: Mini coin counters, tiny portable printers, micro paper shredders
Medical equipment: Micro medical pump parts, lightweight electric bed small components
Industrial equipment: Miniature water/electricity valves, micro automatic door switches
Commercial equipment: Tiny smart lamp drivers, mini parking lock parts
Robots: Micro manipulators, tiny drone joints, mini service robot components
