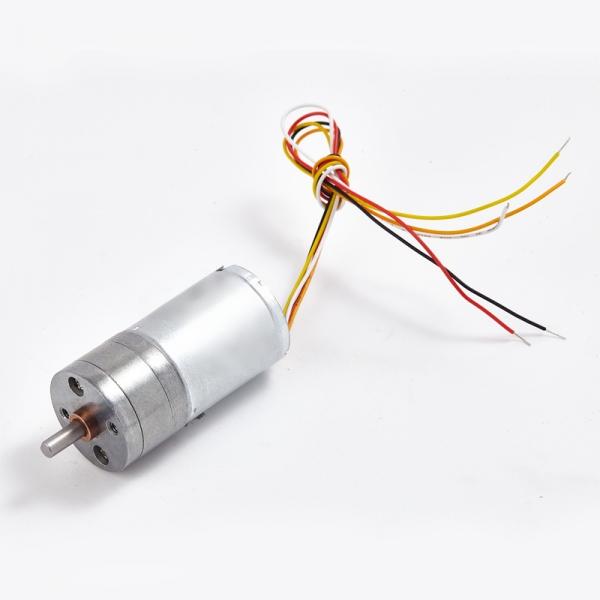

JGA25-2430
SHINE
20221133
Product Description
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | 减速箱长度Gearbox Length (MM) | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | |||
| JGA25-2430-1260 | 4.4 | 12 | 1360 | 0.06 | 1000 | 0.45 | 0.10 | 1.0 | 0.4 | 1.3 | 17 |
| JGA25-2430-1260 | 9.6 | 12 | 620 | 0.06 | 450 | 0.45 | 0.22 | 1.0 | 0.8 | 1.3 | |
| JGA25-2430-1260 | 21.3 | 12 | 280 | 0.06 | 220 | 0.45 | 0.50 | 1.2 | 1.7 | 1.3 | 19 |
| JGA25-2430-1260 | 35 | 12 | 170 | 0.06 | 130 | 0.45 | 0.82 | 1.1 | 2.8 | 1.3 | 21 |
| JGA25-2430-1260 | 45 | 12 | 130 | 0.06 | 100 | 0.45 | 1.00 | 1.0 | 3.6 | 1.3 | |
| JGA25-2430-1260 | 78 | 12 | 77 | 0.06 | 60 | 0.45 | 1.84 | 1.2 | 6.2 | 1.3 | 23 |
| JGA25-2430-1260 | 103 | 12 | 60 | 0.06 | 46 | 0.45 | 2.44 | 1.2 | 8.2 | 1.3 | |
| JGA25-2430-1260 | 171 | 12 | 35 | 0.06 | 27 | 0.45 | 4.00 | 1.1 | 9.0 | 1.3 | 25 |
| JGA25-2430-1260 | 226 | 12 | 26 | 0.06 | 20 | 0.45 | 5.35 | 1.1 | Maximum load 9kg | Do not support blocking | |
| JGA25-2430-1260 | 377 | 12 | 16 | 0.06 | 12 | 0.45 | 8.9 | 1.1 | 27 | ||
| JGA25-2430-1260 | 500 | 12 | 12 | 0.06 | 9 | 0.45 | 9.00 | 0.8 | |||
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | 减速箱长度Gearbox Length (MM) | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | |||
| JGA25-2430-2460 | 4.4 | 24 | 1360 | 0.04 | 1000 | 0.25 | 0.10 | 1.0 | 0.35 | 1.3 | 17 |
| JGA25-2430-2460 | 9.6 | 24 | 620 | 0.04 | 450 | 0.25 | 0.22 | 1.0 | 0.75 | 1.3 | |
| JGA25-2430-2460 | 21.3 | 24 | 280 | 0.04 | 220 | 0.25 | 0.50 | 1.2 | 1.7 | 1.3 | 19 |
| JGA25-2430-2460 | 35 | 24 | 170 | 0.04 | 130 | 0.25 | 0.82 | 1.1 | 2.8 | 1.3 | 21 |
| JGA25-2430-2460 | 45 | 24 | 130 | 0.04 | 100 | 0.25 | 1.00 | 1.0 | 3.6 | 1.3 | |
| JGA25-2430-2460 | 78 | 24 | 77 | 0.04 | 60 | 0.25 | 1.84 | 1.2 | 6.2 | 1.3 | 23 |
| JGA25-2430-2460 | 103 | 24 | 60 | 0.04 | 46 | 0.25 | 2.44 | 1.2 | 8.2 | 1.3 | |
| JGA25-2430-2460 | 171 | 24 | 35 | 0.04 | 27 | 0.25 | 4.00 | 1.1 | 9.0 | 1.3 | 25 |
| JGA25-2430-2460 | 226 | 24 | 26 | 0.04 | 20 | 0.25 | 5.35 | 1.1 | Maximum load 9kg | Do not support blocking | |
| JGA25-2430-2460 | 377 | 24 | 16 | 0.04 | 12 | 0.25 | 8.90 | 1.1 | 27 | ||
| JGA25-2430-2460 | 500 | 24 | 12 | 0.04 | 9 | 0.25 | 9.00 | 0.8 | |||
| 工程师建议 The engineer recommends：171速比以上不支持堵转 Blocked(Stall) rotor is not supported above 171 Ratio | |||||||||||

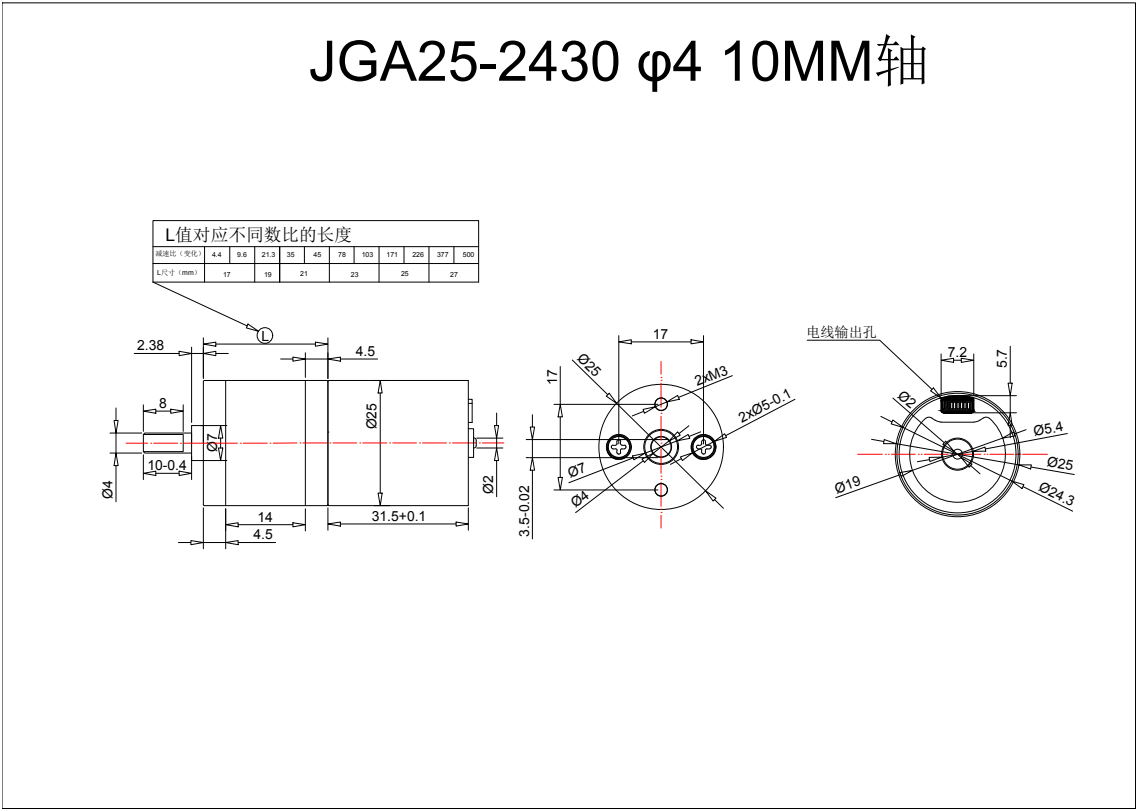

Outline Dimension
Applications
Household appliances: Electric curtains, smart toilets, mini coffee machines
Personal care: Mini massage equipment, electric hair clippers, portable curling irons
Office equipment: Small paper shredders, portable printers, mini banknote counters
Medical equipment: Portable medical pumps, lightweight electric bed accessories
Industrial equipment: Small water/electricity valves, mini automatic door switches
Commercial equipment: Mini vending machines, smart lamps, compact parking locks
Robots: Desktop manipulators, mini drones, small service robots
Packing Details
Quantity: 100pcs/ctn
Carton size: 38.5*27.5*24 cm
Gross weight: 7.7 kg/ctn
Net weight: 7.0 kg/ctn
Unit weight: 70g
