JGA12-N30
SHINE
20221137
Product Description
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (g,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
| JGA12-N30-12145 | 30 | 12 | 470 | 0.027 | 360 | 0.057 | 34 | 0.70 | 0.18 | 0.3 |
| 50 | 12 | 280 | 0.027 | 215 | 0.057 | 56 | 0.70 | 0.3 | 0.3 | |
| 100 | 12 | 140 | 0.027 | 100 | 0.057 | 113 | 0.70 | 0.6 | 0.3 | |
| 210 | 12 | 70 | 0.027 | 54 | 0.057 | 226 | 0.70 | 1.2 | 0.3 | |
| 298 | 12 | 47 | 0.027 | 36 | 0.057 | 337 | 0.70 | 1.8 | 0.3 | |
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (g,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
| JGA12-N30-12145 | 30 | 6 | 235 | 0.013 | 180 | 0.03 | 17 | 0.20 | 0.18 | 0.3 |
| 50 | 6 | 140 | 0.013 | 100 | 0.03 | 28 | 0.20 | 0.3 | 0.3 | |
| 100 | 6 | 70 | 0.013 | 50 | 0.03 | 56 | 0.20 | 0.6 | 0.3 | |
| 210 | 6 | 35 | 0.013 | 27 | 0.03 | 113 | 0.20 | 1.2 | 0.3 | |
| 298 | 6 | 23 | 0.013 | 18 | 0.03 | 168 | 0.20 | 1.8 | 0.3 | |

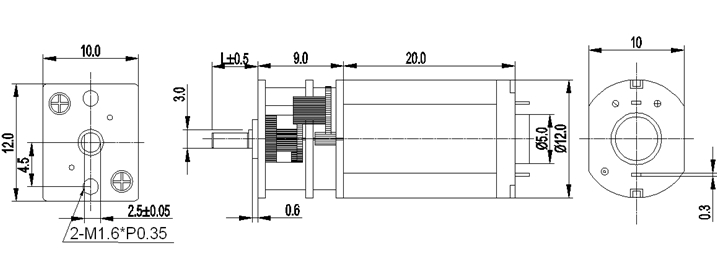

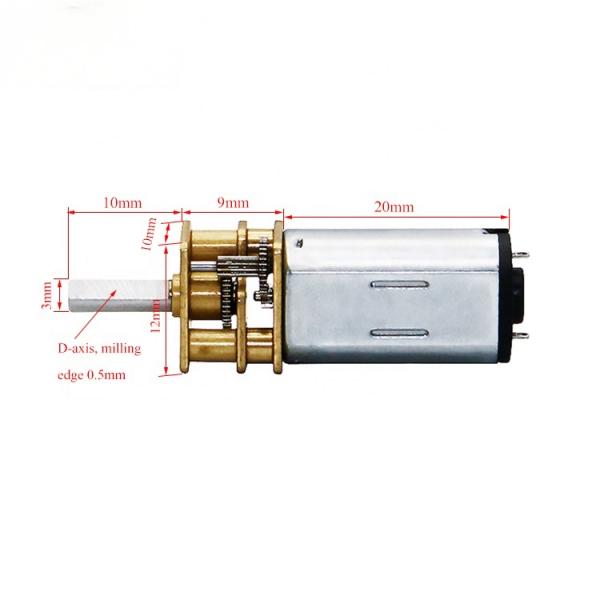

Outline Dimension
Applications
Household appliances: Micro electric curtain components, tiny smart toilet parts, mini smart door lock drivers
Personal care: Ultra-portable electric hair clipper bits, micro massage gadgets, compact curling iron components
Office equipment: Mini coin counter parts, tiny portable printer gears, micro paper shredder components
Medical equipment: Micro medical pump small parts, lightweight electric bed mini components
Industrial equipment: Miniature water/electricity valve cores, micro automatic door switch parts
Commercial equipment: Tiny smart lamp drivers, mini parking lock micro components
Robots: Micro manipulator joints, tiny drone mini motors, small service robot parts
Packing Details
Quantity: 330pcs/ctn
Carton size: 38.5*27.5*24 cm
Gross weight: 5.65 kg/ctn
Net weight: 4.95 kg/ctn
Unit weight: 15g
