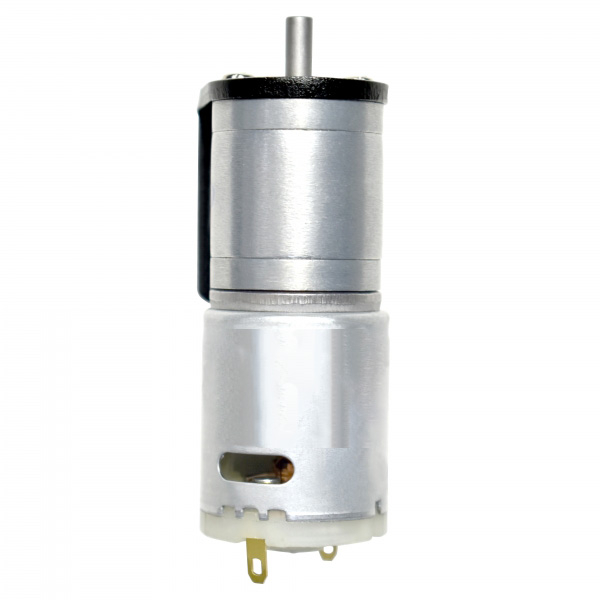

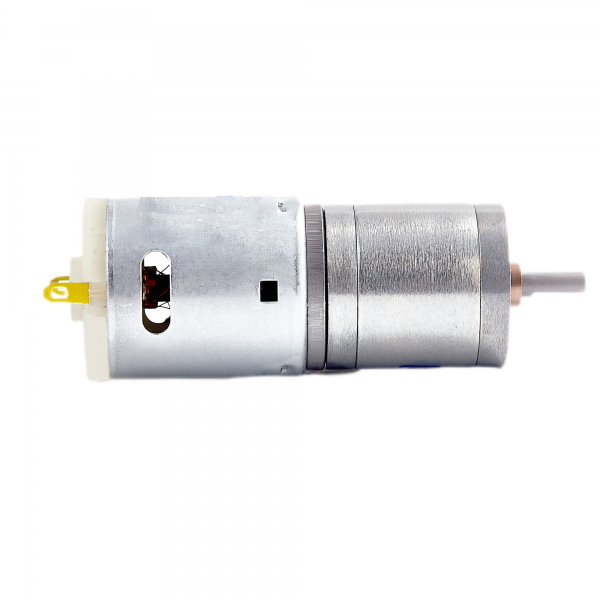

DC Gear Motor JGA25-365 (Spur Gear) - Precision Electric Gearmotor for Automation

Rated Voltage: 6-12V
Reduction Ratio: 4.4-500I
No-load speed(RPM): 10~2318rpm
No-Load Current mA(≤): 80-160mA
Rated Speed(RPM): 7-1900rpm
Rated Current mA(≤): 150-300mA
Rated Torque(Kg,cm): 0.3-9kg,cm
Stall/Maximum Torque (Kg,cm): 1.15-60kg,cm
Stall Current(A) : 1-2A

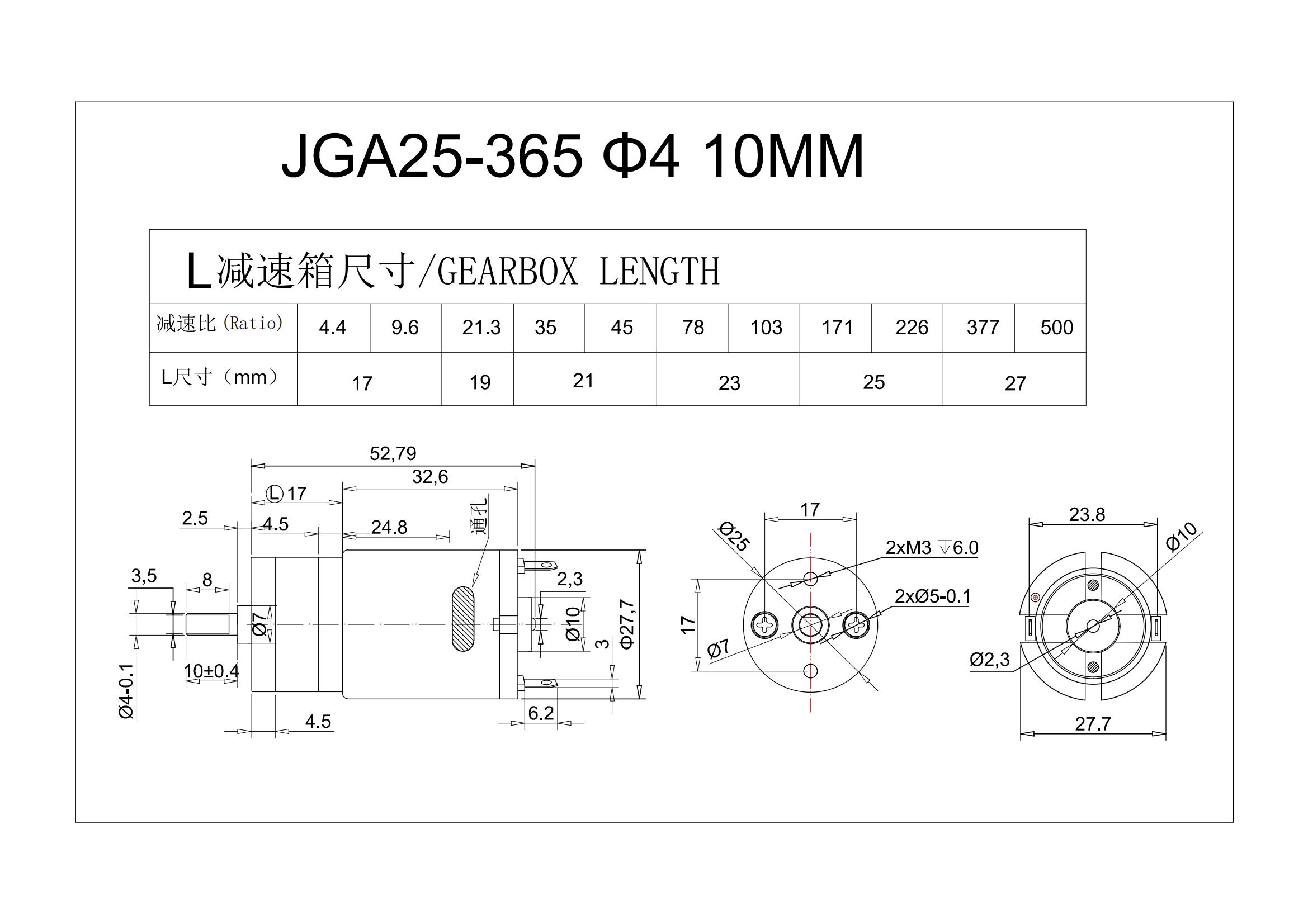

Shaft: 416 Steel, Φ4.0 Length 10mm ,
Gear: powder gear , copper gear

Model:
JGA25-365
Brand:
SHINE
Code:
20221125


Availability:



Inquiry

Product Description

Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Output	Gearbox Length (MM)	Weight(G)	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Direction	Gearbox Length (MM)	Weight(G)	Starting Voltage(V)
JGA25-365-0650	4.4	6	1159	0.08	900	0.15	0.30	0.90	1.15	1.0	CCW	17	120	1.5
JGA25-365-0650	9.6	6	510	0.08	400	0.16	0.70	0.95	2.30	1.0	CW	17
JGA25-365-0650	21.3	6	239	0.08	184	0.15	1.10	0.90	5.30	1.0	CCW	19
JGA25-365-0650	35	6	150	0.08	100	0.17	1.60	1.00	7.10	1.0	CW	21
JGA25-365-0650	45	6	113	0.08	73	0.16	1.90	0.90	8.30	1.0	CW	21
JGA25-365-0650	78	6	65	0.08	40	0.15	2.80	0.90	11.80	1.0	CCW	23
JGA25-365-0650	103	6	49	0.08	30	0.16	3.40	0.90	13.00	1.0	CCW	23
JGA25-365-0650	171	6	29	0.08	20	0.15	4.00	0.90	16.00	1.0	CW	25
JGA25-365-0650	226	6	22	0.08	16	0.16	5.00	0.90	20.00	1.0	CW	25
JGA25-365-0650	377	6	13	0.08	9	0.15	6.00	0.90	25.00	1.0	CCW	27
JGA25-365-0650	500	6	10	0.08	7	0.15	7.00	0.90	30.00	1.0	CCW	27
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Output	Gearbox Length (MM)	Weight(G)	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Direction	Gearbox Length (MM)	Weight(G)	Starting Voltage(V)
JGA25-365-12100	4.4	12	2318	0.16	1900	0.30	0.50	3.5	2.3	2.0	CCW	17	120	1.5
JGA25-365-12100	9.6	12	1020	0.16	850	0.33	1.00	3.9	4.7	2.0	CW	17
JGA25-365-12100	21.3	12	478	0.16	410	0.29	2.50	3.5	10.6	2.0	CCW	19
JGA25-365-12100	35	12	300	0.16	260	0.27	3.00	3.0	14.2	2.0	CW	21
JGA25-365-12100	45	12	226	0.16	180	0.26	4.00	3.0	16.7	2.0	CW	21
JGA25-365-12100	78	12	130	0.16	100	0.28	5.50	3.5	23.7	2.0	CCW	23
JGA25-365-12100	103	12	99	0.16	79	0.29	5.70	3.5	26.0	2.0	CCW	23
JGA25-365-12100	171	12	59	0.16	35	0.30	7.00	4.2	32.0	2.0	CW	25
JGA25-365-12100	226	12	45	0.16	30	0.31	9.00	3.5	40.0	2.0	CW	25
JGA25-365-12100	377	12	27	0.16	20	0.29	9.00	3.5	50.0	2.0	CCW	27
JGA25-365-12100	500	12	20	0.16	14	0.28	9.00	3.5	60.0	2.0	CCW	27
