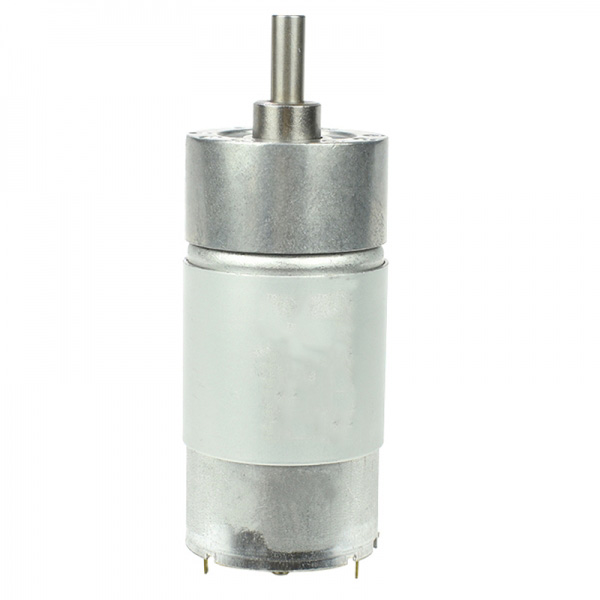

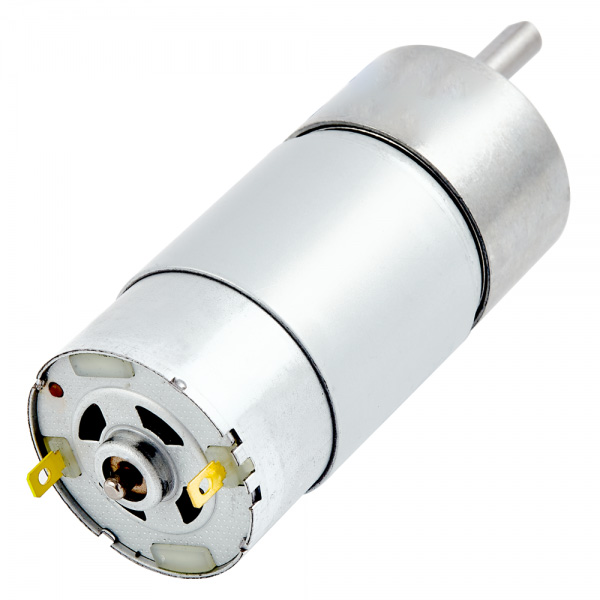

JGB37-3525
SHINE
20221127
Product Description
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
| JGB37-555-1260 | 6.25 | 12 | 960 | 0.12 | 685 | 0.9 | 0.94 | 15.00 | 4 | 6.5 |
| 10 | 12 | 600 | 0.12 | 428 | 0.9 | 1.50 | 15.00 | 4.8 | 6.5 | |
| 18.8 | 12 | 319 | 0.12 | 228 | 0.9 | 2.82 | 15.00 | 6 | 6.5 | |
| 30 | 12 | 200 | 0.12 | 142 | 0.9 | 4.50 | 15.00 | 18 | 6.5 | |
| 56 | 12 | 107 | 0.13 | 76 | 0.9 | 8.40 | 15.00 | 32 | 6.5 | |
| 90 | 12 | 66 | 0.13 | 50 | 0.9 | 13.50 | 15.00 | 52 | 6.5 | |
| 131 | 12 | 45 | 0.13 | 32 | 0.9 | 19.65 | 15.00 | 76 | 6.5 | |
| 169 | 12 | 35 | 0.13 | 25 | 0.9 | 25.35 | 15.00 | 87.5 | 6.5 | |
| 270 | 12 | 22 | 0.13 | 16 | 0.9 | 40.50 | 15.00 | 141 | 6.5 | |
| 506 | 12 | 11 | 0.13 | 9 | 0.9 | 60.00 | 15.00 | 180 | 6.5 | |
| 810 | 12 | 7 | 0.13 | 6 | 0.9 | 60.00 | 15.00 | 180 | 6.5 | |
| Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
| 额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
| JGB37-555-2460 | 6.25 | 24 | 960 | 0.1 | 685 | 0.9 | 0.94 | 15.00 | 4 | 6.5 |
| 10 | 24 | 600 | 0.1 | 428 | 0.9 | 1.50 | 15.00 | 4.8 | 6.5 | |
| 18.8 | 24 | 319 | 0.1 | 228 | 0.9 | 2.82 | 15.00 | 6 | 6.5 | |
| 30 | 24 | 200 | 0.1 | 142 | 0.9 | 4.50 | 15.00 | 18 | 6.5 | |
| 56 | 24 | 107 | 0.1 | 76 | 0.9 | 8.40 | 15.00 | 32 | 6.5 | |
| 90 | 24 | 66 | 0.1 | 50 | 0.9 | 13.50 | 15.00 | 52 | 6.5 | |
| 131 | 24 | 45 | 0.1 | 32 | 0.9 | 19.65 | 15.00 | 76 | 6.5 | |
| 169 | 24 | 35 | 0.1 | 25 | 0.9 | 25.35 | 15.00 | 87.5 | 6.5 | |
| 270 | 24 | 22 | 0.1 | 16 | 0.9 | 40.50 | 15.00 | 141 | 6.5 | |
| 506 | 24 | 11 | 0.1 | 9 | 0.9 | 60.00 | 15.00 | 180 | 6.5 | |
| 810 | 24 | 7 | 0.1 | 6 | 0.9 | 60.00 | 15.00 | 180 | 6.5 | |
| 工程师建议 The engineer recommends：30kg以上不支持堵转 Blocked(Stall) rotor is not supported above 30kg | ||||||||||

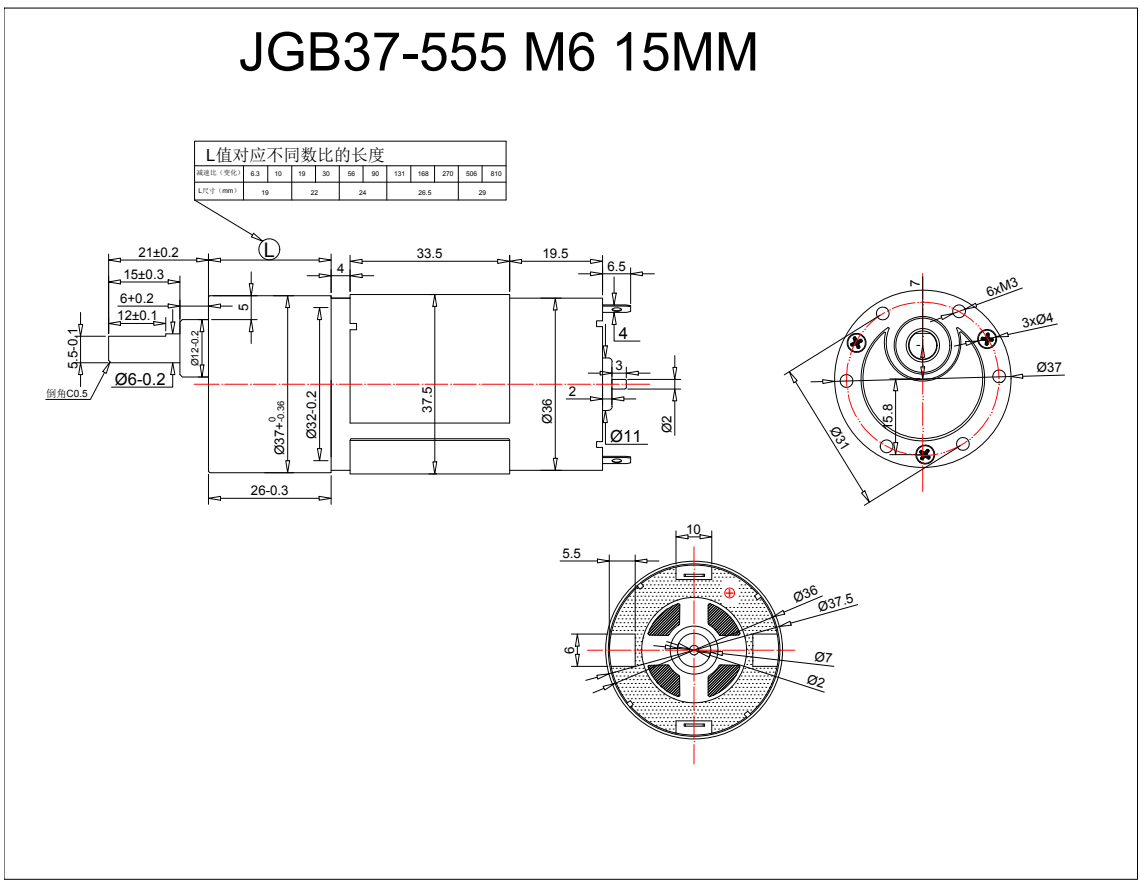

Outline Dimension
Applications
Household appliances: Electric curtains, smart toilets, sweeping robots, smart door locks, dishwashers
Personal care: Massage equipment, electric hair clippers, curling irons
Office equipment: Paper shredders, printers, banknote counters, coin counters
Medical equipment: Massage chairs, electric beds, electric wheelchairs, medical pumps
Industrial equipment: Water/electricity valves, pumps, automatic door switches, lubrication equipment
Commercial equipment: Vending machines, parking locks, ATM machines, smart lamps
Robots: Manipulators, drones, service robots, heavy-load robotics
Packing Details
Quantity: 100pcs/ctn
Carton size: 38.5*27.5*24 cm
Gross weight: 18.7 kg/ctn
Net weight: 18.0 kg/ctn
Unit weight: 180g
