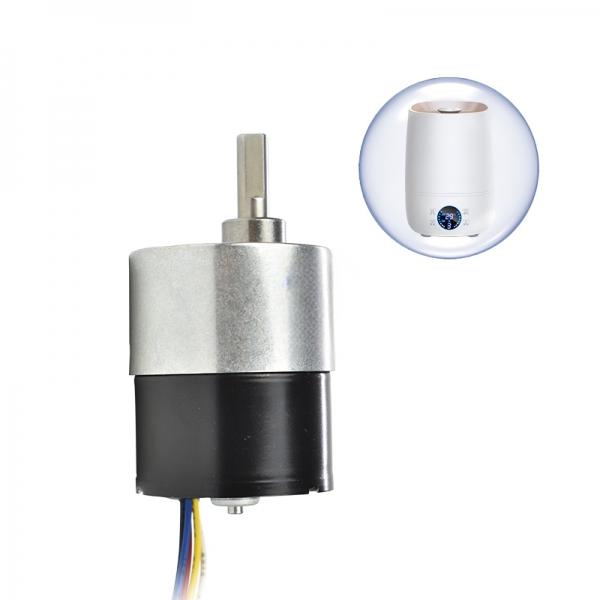

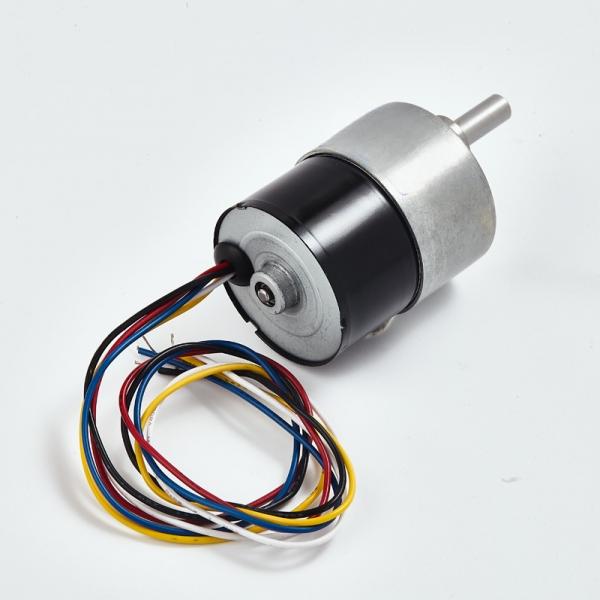

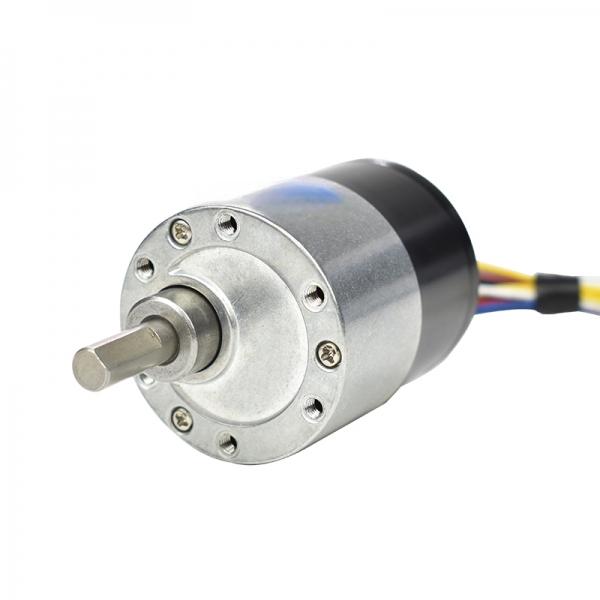

JGB37-3525 DC Spur Gear Motor Compact Electric Gearmotor for Smart Devices

Model: JGB37-3525

Voltage: 12V (1260), 24V (2460)

Reduction Ratio: 6.25-810

No-Load Speed: 7-960RPM

Rated Torque: 0.45-35Kg.cm

Gearbox Length: 19-26.5MM

Max Load: 35kg

Note: Stall prohibited over 35kg

Model:
JGB37-3525
Brand:
SHINE
Code:
20221127


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGB37-3525-1260	6.25	12	960	0.07	685	0.8	0.80	5.74	1.5	1.8	19
JGB37-3525-1260	10	12	600	0.07	428	0.8	1.20	5.38	2.5	1.8	19
JGB37-3525-1260	18.8	12	320	0.07	228	0.8	2.35	5.61	4.7	1.8	22
JGB37-3525-1260	30	12	200	0.07	142	0.8	3.60	5.35	7.5	1.8	22
JGB37-3525-1260	56	12	107	0.07	76	0.8	6.80	5.41	12.5	1.8	24
JGB37-3525-1260	90	12	66	0.07	50	0.8	10.90	5.71	22.5	1.8	24
JGB37-3525-1260	131	12	45	0.07	32	0.8	15.90	5.33	32	1.8	26.5
JGB37-3525-1260	169	12	35	0.07	25	0.8	20.40	5.34	最大负载35kg，禁止堵转
JGB37-3525-1260	270	12	22	0.07	16	0.8	32.70	5.48
JGB37-3525-1260	506	12	12	0.07	9	0.8	35.00	3.30			29
JGB37-3525-1260	810	12	7	0.07	6	0.8	35.00	2.20			29
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall		减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
JGB37-3525-2460	6.25	24	960	0.13	685	0.4	0.45	3.23	1.2	1.3	19
JGB37-3525-2460	10	24	600	0.13	428	0.4	0.75	3.36	2	1.3	19
JGB37-3525-2460	18.8	24	320	0.13	228	0.4	1.30	3.10	3.8	1.3	22
JGB37-3525-2460	30	24	200	0.13	142	0.4	1.80	2.68	5.6	1.3	22
JGB37-3525-2460	56	24	107	0.13	76	0.4	4.00	3.18	11.5	1.3	24
JGB37-3525-2460	90	24	66	0.13	50	0.4	6.40	3.35	18	1.3	24
JGB37-3525-2460	131	24	45	0.13	32	0.4	9.30	3.12	26.5	1.3	26.5
JGB37-3525-2460	169	24	35	0.13	25	0.4	12.00	3.14	最大负载35kg，禁止堵转
JGB37-3525-2460	270	24	22	0.13	16	0.4	19.00	3.18
JGB37-3525-2460	506	24	12	0.13	9	0.4	35.00	3.30			29
JGB37-3525-2460	810	24	7	0.13	6	0.4	35.00	2.20			29
工程师建议 The engineer recommends：35kg以上不支持堵转 Blocked(Stall) rotor is not supported above 35kg

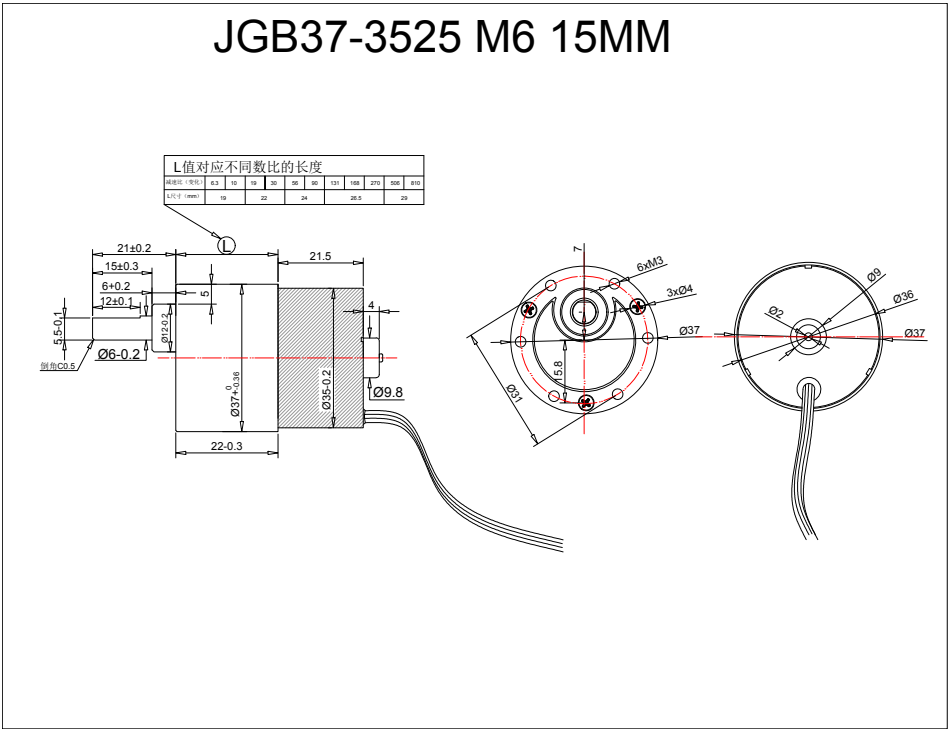

Outline Dimension

JGB37-3525 Dimension尺寸图

Applications

Smart Assistance for Daily Living

Explain the convenience and importance of household appliances and personal care devices in daily life.

Smart Home Favorites

Introduce how smart home appliances (electric curtains, smart toilets, sweeping robots, smart door locks) enhance the convenience and comfort of home life.

Personal Care Essentials

Detail how personal care devices (curling irons, massage equipment, electric hair clippers) meet people’s daily beauty and health needs.

Efficient Support for Office & Medical Settings

Illustrate the key role of office and medical equipment in improving work efficiency and safeguarding health.

Office Workhorses

List the applications and value of common office equipment (paper shredders, printers, projectors, banknote counters, coin counters) in office scenarios.

Medical Care Equipment

Introduce how medical devices (massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs) support patient care and medical work.

Operational Cornerstones for Industry & Commerce

Analyze the importance of industrial and commercial equipment in industrial operation and commercial services.

Industrial Power Sources

Explain the basic supporting role of industrial equipment (water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment) in industrial production.

Commercial Service Pioneers

Introduce how commercial equipment (vending machines, parking locks, ATM machines, smart lamps) provide convenient commercial services.

Cutting-Edge Exploration of Future Technology

Elaborate on the application prospects and development trends of robots in various fields.

The Rise of Smart Robots

Introduce the applications of various robots (manipulators, drones, service robots) in different scenarios and look forward to the future development of robot technology.

Packing Details

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 18.7 kg/ctn

Net weight: 18.0 kg/ctn

Unit weight: 180g
