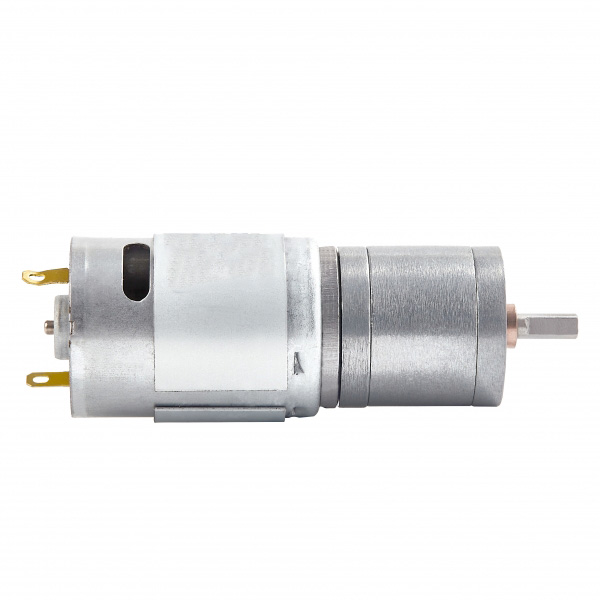

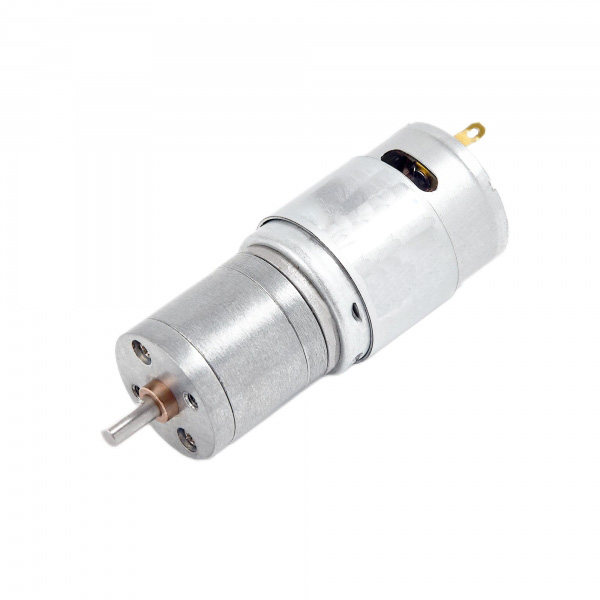

DC Gear Motor JGA25-385 Spur Gear High Precision Low Noise Motor for DIY Projects

Rated Voltage: 6-24V
Reduction Ratio: 4.4-500I
No-load speed(RPM): 12~1931rpm
No-Load Current mA(≤): 40-150mA
Rated Speed(RPM): 9-1370rpm
Rated Current mA(≤): 150-600mA
Rated Torque(Kg,cm): 0.1-9kg,cm
Stall/Maximum Torque (Kg,cm): 0.35-26kg,cm
Stall Current(A) : 0.8-2.6A
Shaft: 416 Steel, Φ4.0 Length 10mm ,
Gear: powder gear , copper gear

Model:
JGA25-385410MM
Brand:
SHINE
Code:
20221124


Availability:



Inquiry

Product Description

Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGA25-385-1280	4.4	12	1818	0.15	1500	0.70	0.60	8.4	2.6	2.7	CCW	17	135	1
JGA25-385-1280	9.6	12	800	0.15	667	0.70	1.20	8.4	5.6	2.7	CW	17
JGA25-385-1280	21.3	12	373	0.15	310	0.70	2.10	8.4	9.4	2.7	CCW	19
JGA25-385-1280	35	12	235	0.15	195	0.70	2.60	8.4	11.5	2.7	CW	21
JGA25-385-1280	45	12	178	0.15	148	0.70	2.80	8.4	12.6	2.7	CW	21
JGA25-385-1280	78	12	102	0.15	85	0.70	3.80	8.4	16.9	2.7	CCW	23
JGA25-385-1280	103	12	77	0.15	64	0.70	5.00	8.4	22.2	2.7	CCW	23
JGA25-385-1280	171	12	46	0.15	38	0.70	6.70	8.4	30.0	2.7	CW	25
JGA25-385-1280	226	12	35	0.15	29	0.70	9.00	8.4	44.6	2.7	CW	25
JGA25-385-1280	377	12	21	0.15	17	0.70	9.00	8.4	70.0	2.7	CCW	27
JGA25-385-1280	500	12	16	0.15	13	0.70	9.00	8.4	89.0	2.7	CCW	27
Motor Model	Reduction ratio	No-Load			Rated Load				Stall		Gearbox Length (MM)	Weight(G)	Output	Starting Voltage(V)
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)	Gearbox Length (MM)	Weight(G)	Direction	Starting Voltage(V)
JGA25-385-2480	4.4	24	1818	0.08	1500	0.16	0.60	3.8	2.6	1.3	CCW	17	135	1
JGA25-385-2480	9.6	24	800	0.08	667	0.16	1.20	3.8	5.6	1.3	CW	17
JGA25-385-2480	21.3	24	373	0.08	310	0.15	2.10	3.8	9.4	1.3	CCW	19
JGA25-385-2480	35	24	235	0.08	195	0.16	2.60	3.8	11.5	1.3	CW	21
JGA25-385-2480	45	24	178	0.08	148	0.15	2.80	3.8	12.6	1.3	CW	21
JGA25-385-2480	78	24	102	0.08	85	0.16	3.80	3.8	16.9	1.3	CCW	23
JGA25-385-2480	103	24	77	0.08	64	0.15	5.00	3.8	22.2	1.3	CCW	23
JGA25-385-2480	171	24	46	0.08	38	0.15	6.70	3.8	30.0	1.3	CW	25
JGA25-385-2480	226	24	35	0.08	29	0.15	9.00	3.8	44.6	1.3	CW	25
JGA25-385-2480	377	24	21	0.08	17	0.16	9.00	3.8	70.0	1.3	CCW	27
JGA25-385-2480	500	24	16	0.08	13	0.16	9.00	3.8	89.0	1.3	CCW	27

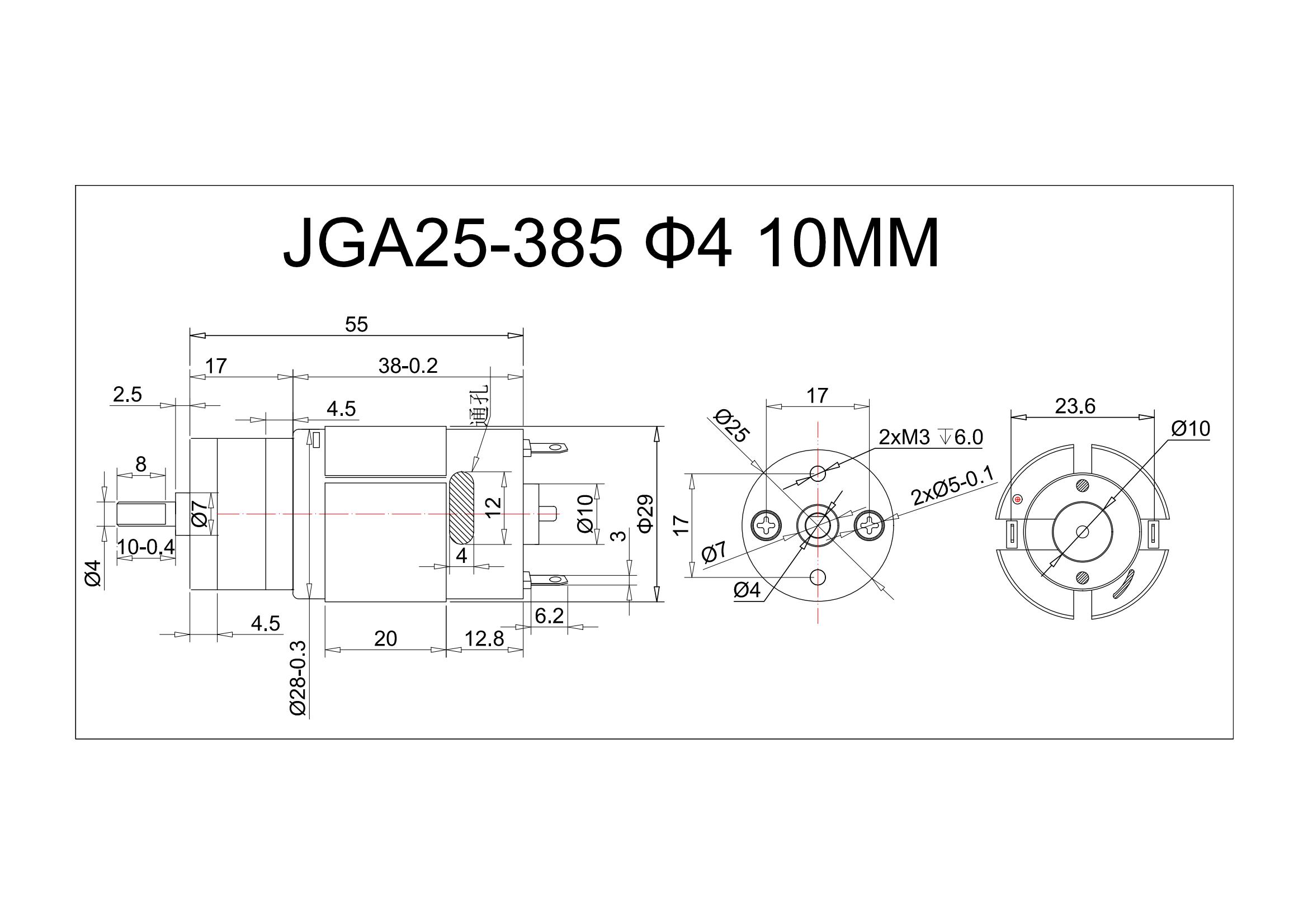

Outline Dimension

JGA25-385410MM

Applications

Household appliances

Electric curtains, integrated stoves, coffee machines, smart toilets, robot vacuums, dishwashers, range hoods, smart door locks, small air purifiers, mini humidifiers, bread makers, electric toothbrushes, smart trash cans, kitchen blenders

Personal care

Hair curlers, massage instruments (mini), electric hair clippers, hair dryers, electric shavers, facial cleansing brushes, handheld massagers, hair straighteners, epilators, electric nail grinders

Office equipment

Shredders, printers (portable), projectors, banknote counting machines, coin counting machines, paper cutters, binding machines, laminators, electric staplers, POS machines, small cash registers

Medical equipment

Massage chairs (accessories), electric carts (mini), medical pumps (portable), electric beds (adjustable), electric wheelchairs (lightweight), rehabilitation training devices (small), medical trolleys (compact)

Industrial equipment

Water and electrical valves (mini), air switches, small pumps, automatic door switches, automatic lubrication equipment, mini conveyor belts, electric actuators, solenoid valves, small packaging machinery

Commercial equipment

Vending machines (small), parking locks, ATM machines, smart lamps, commercial refrigerators (compact), ticket vending machines, automatic door openers, advertising light boxes, smart shelves (mini)

Robots

Manipulators (desktop), drones (mini), service robots (household/medical), educational robots, DIY robots, cleaning robots (window/floor), small delivery robots, AGV robots (lightweight)

Packing Details

Quantity: 120pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 16.2 kg/ctn

Net weight: 17.0 kg/ctn

Single weight: 135g

EPE Pearl Cotton Packaging

Standard carton packaging
