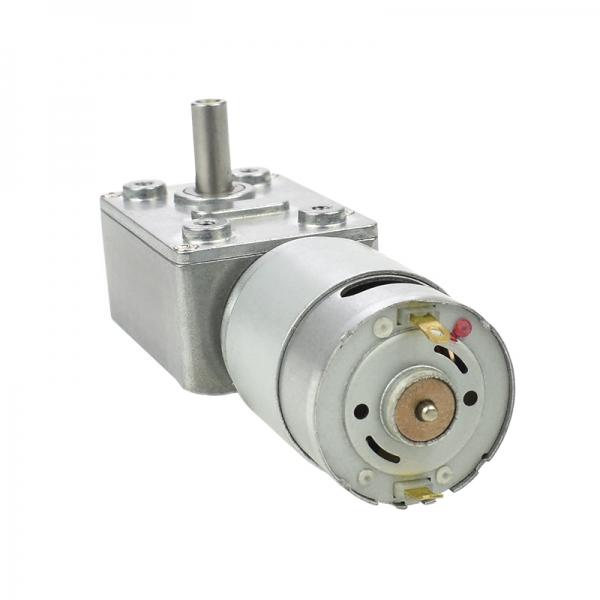

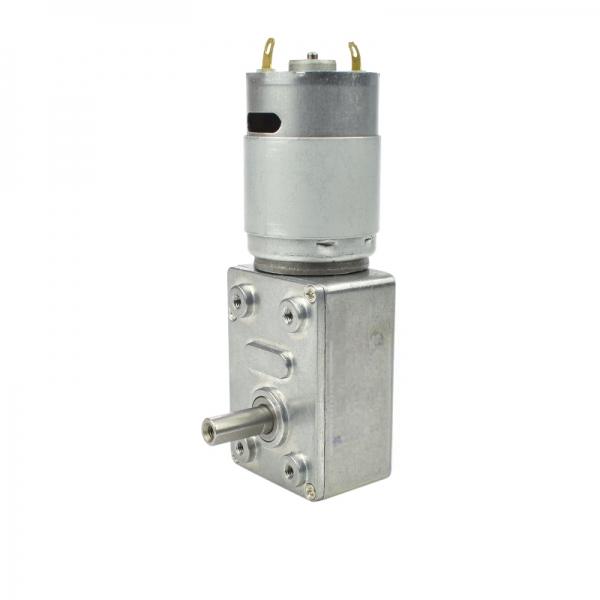

JGY-385
SHINE
20221145
Product Description
Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
JGY-385-2480 | 37.3 | 24 | 213 | 0.08 | 160 | 0.45 | 1.00 | 6.00 | 4 | 1.6 |
JGY-385-2480 | 65 | 24 | 123 | 0.08 | 100 | 0.45 | 2.50 | 6.00 | 8 | 1.6 |
JGY-385-2480 | 150 | 24 | 53 | 0.08 | 40 | 0.45 | 6.00 | 6.00 | 22 | 1.6 |
JGY-385-2480 | 200 | 24 | 40 | 0.08 | 30 | 0.45 | 8.00 | 6.00 | 25 | 1.6 |
JGY-385-2480 | 324 | 24 | 24 | 0.08 | 20 | 0.45 | 20.00 | 6.00 | 60 | 1.6 |
JGY-385-2480 | 600 | 24 | 13 | 0.08 | 10 | 0.45 | 24.00 | 6.00 | 72 | 1.6 |
JGY-385-2480 | 1000 | 24 | 8 | 0.08 | 6 | 0.45 | 30.00 | 6.00 | 90 | 1.6 |
Motor Model | 减速比Reduction ratio | 空载No-Load | 额定负载Rated Load | 堵转 Stall | ||||||
额定电压Rated Voltage (V) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转数Speed (RPM ±10%) | 电流 Current (A) | 转矩Torque (Kg,cm) | 功率 Power(W) | 转矩Torque (Kg.cm) | 电流 Current (A) | ||
JGY-385-1240 | 37.3 | 12 | 106 | 0.05 | 80 | 0.23 | 0.50 | 3.00 | 2 | 0.8 |
JGY-385-1240 | 65 | 12 | 61 | 0.05 | 50 | 0.23 | 1.25 | 3.00 | 4 | 0.8 |
JGY-385-1240 | 150 | 12 | 26 | 0.05 | 20 | 0.23 | 3.00 | 3.00 | 11 | 0.8 |
JGY-385-1240 | 200 | 12 | 20 | 0.05 | 15 | 0.23 | 4.00 | 3.00 | 12.5 | 0.8 |
JGY-385-1240 | 324 | 12 | 12 | 0.05 | 10 | 0.23 | 10.00 | 3.00 | 30 | 0.8 |
JGY-385-1240 | 600 | 12 | 6 | 0.05 | 5 | 0.23 | 12.00 | 3.00 | 36 | 0.8 |
JGY-385-1240 | 1000 | 12 | 4 | 0.05 | 3 | 0.23 | 15.00 | 3.00 | 45 | 0.8 |
工程师建议 The engineer recommends：30kg以上不支持堵转 Blocked(Stall) rotor is not supported above 30kg | ||||||||||

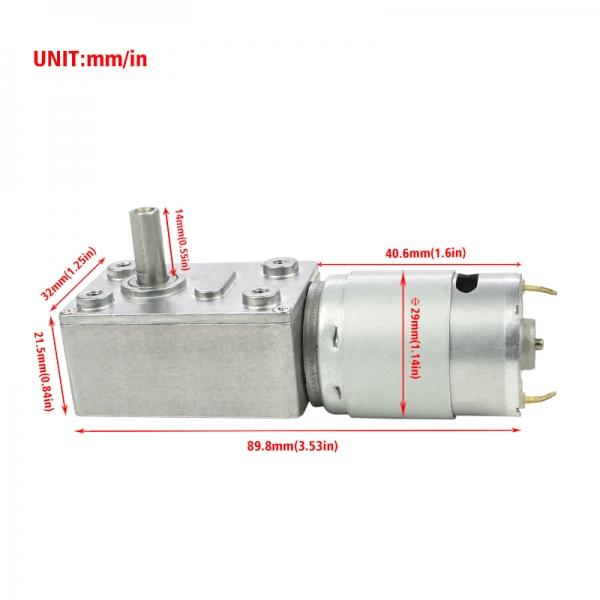

Outline Dimension
Applications
Packing Details
