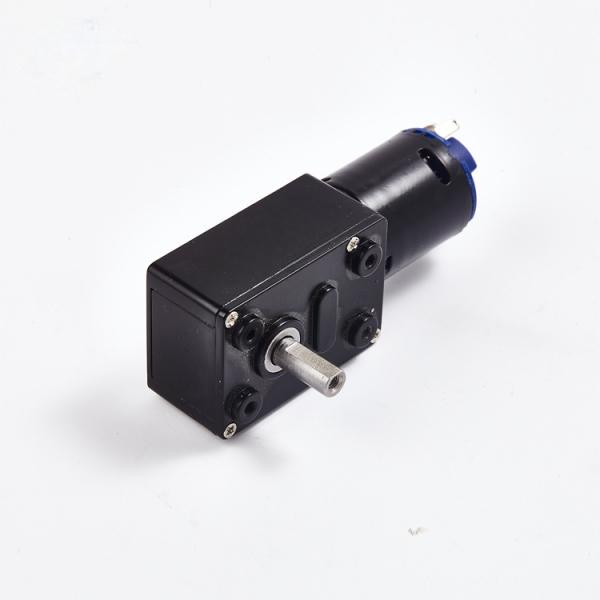

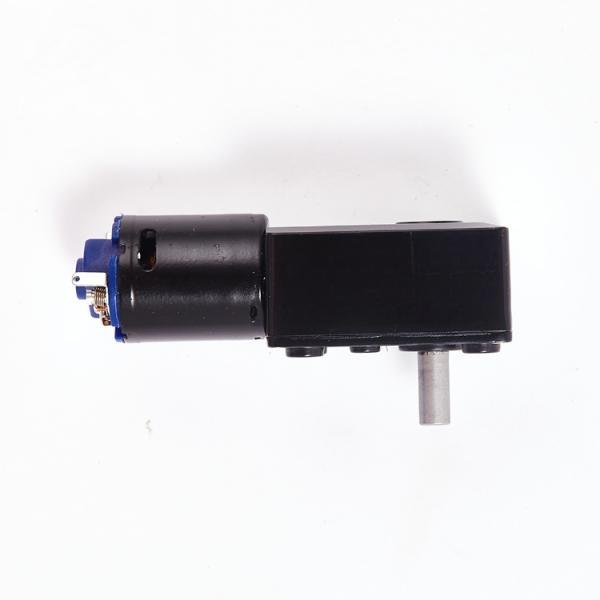

JGY-370 D6 M3 Black Case DC Gear Motor 6V/12V/24V - Single/Double Shaft High Torque

额定电压Rated Voltage (V)

转数Speed (RPM ±10%)

电流 Current  (A)

转数Speed (RPM ±10%)

电流 Current  (A)

转矩Torque (Kg,cm)

功率 Power(W)

转矩Torque (Kg.cm)

电流 Current  (A)

JGY-370-0660

40

6

150

0.10

100

0.6

1.20

1.26

2.5

1.8

65

6

90

0.10

70

0.6

2.00

1.47

4

1.8

150

6

40

0.10

30

0.6

4.50

1.41

9

1.8

200

6

30

0.10

22

0.6

6.00

1.38

12.5

1.8

260

6

23

0.10

17

0.6

8.00

1.42

16

1.8

340

6

18

0.10

13

0.6

12.00

1.63

25

1.8

600

6

10

0.10

7

0.6

17.00

1.25

25

1.8

1000

6

6

0.10

4

0.6

25.00

1.05

25

1.8

 Motor Model

减速比Reduction ratio

空载No-Load

额定负载Rated Load

堵转 Stall

额定电压Rated Voltage (V)

转数Speed (RPM ±10%)

电流 Current  (A)

转数Speed (RPM ±10%)

电流 Current  (A)

转矩Torque (Kg,cm)

功率 Power(W)

转矩Torque (Kg.cm)

电流 Current  (A)

JGY-370-1260

40

12

150

0.06

100

0.5

1.20

1.26

2.5

1.3

65

12

90

0.06

70

0.5

2.00

1.47

4

1.3

150

12

40

0.06

30

0.5

4.50

1.41

9

1.3

200

12

30

0.06

22

0.5

6.00

1.38

12.5

1.3

260

12

23

0.06

17

0.5

8.00

1.42

16

1.3

340

12

18

0.06

13

0.5

12.00

1.63

21

1.3

600

12

10

0.06

7

0.5

17.00

1.25

35

1.3

1000

12

6

0.06

4

0.5

25.00

1.05

35

1.3

 Motor Model

减速比Reduction ratio

空载No-Load

额定负载Rated Load

堵转 Stall

额定电压Rated Voltage (V)

转数Speed (RPM ±10%)

电流 Current  (A)

转数Speed (RPM ±10%)

电流 Current  (A)

转矩Torque (Kg,cm)

功率 Power(W)

转矩Torque (Kg.cm)

电流 Current  (A)

JGY-370-2460

40

24

150

0.04

100

0.2

1.20

1.26

2.5

0.6

65

24

90

0.04

70

0.2

2.00

1.47

4

0.6

150

24

40

0.04

30

0.2

4.50

1.41

9

0.6

200

24

30

0.04

22

0.2

6.00

1.38

12.5

0.6

260

24

23

0.04

17

0.2

8.00

1.42

16

0.6

340

24

18

0.04

13

0.2

12.00

1.63

21

0.6

600

24

10

0.04

7

0.2

17.00

1.25

35

0.6

1000

24

6

0.04

4

0.2

25.00

1.05

35

0.6
