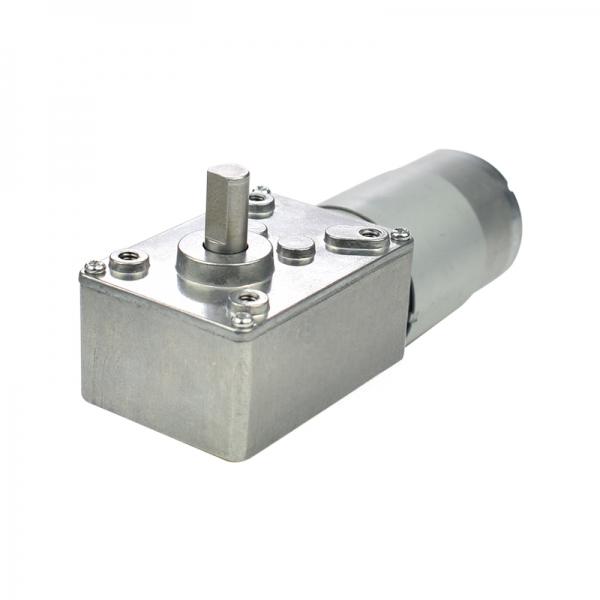

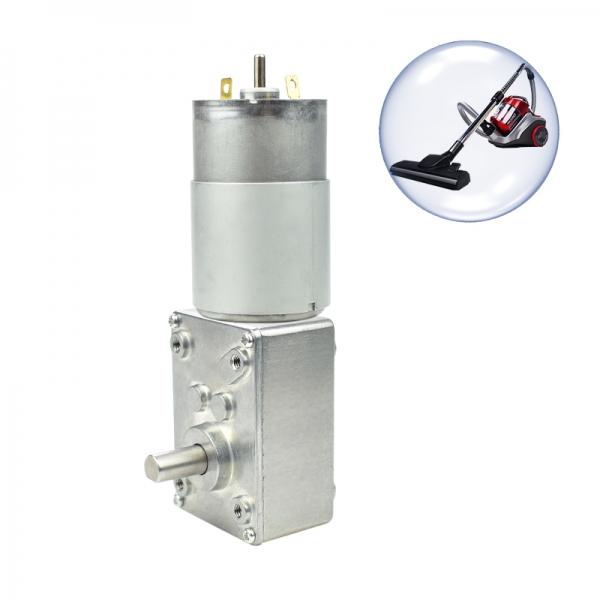

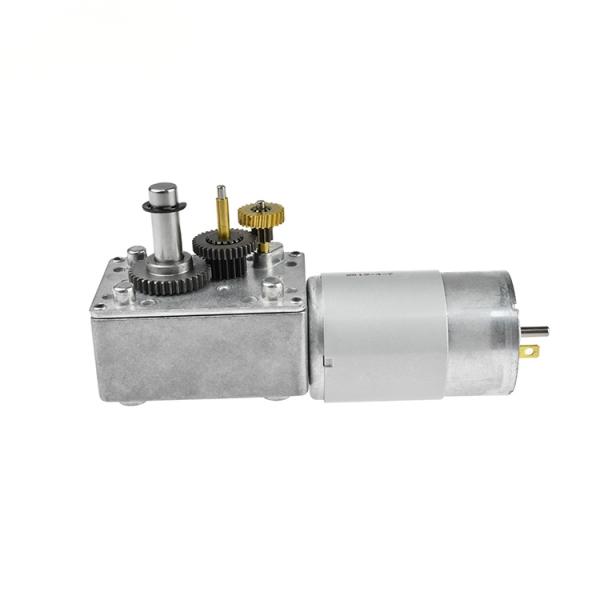

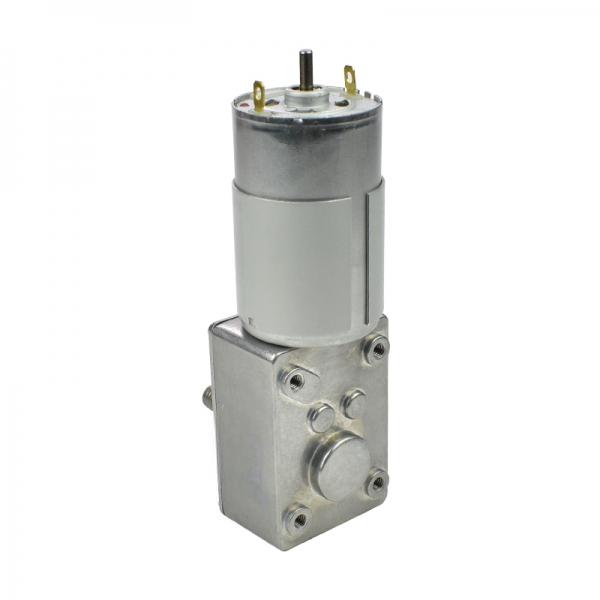

JGB37-555 5840-555 D8 15MM Worm Gear DC Motor 12V/24V High Torque

Model: JGB37-555 (5840-555 D8 15MM)

Voltage: 12V, 24V

Reduction Ratio: 6.25-810

No-Load Speed: 7-960RPM

No-Load Current: 0.1-0.13A

Rated Torque: 0.94-60Kg.cm

Power: 15W

Unit Weight: 315g

Packing: 100pcs/ctn (38.5×27.5×24cm, 32.2kg gross)

Note: Stall prohibited above 30Kg torque

Model:
JGB37-555
Brand:
SHINE
Code:
20221140


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGB37-555-1260	6.25	12	960	0.12	685	0.9	0.94	15.00	4	6.5
	10	12	600	0.12	428	0.9	1.50	15.00	4.8	6.5
	18.8	12	319	0.12	228	0.9	2.82	15.00	6	6.5
	30	12	200	0.12	142	0.9	4.50	15.00	18	6.5
	56	12	107	0.13	76	0.9	8.40	15.00	32	6.5
	90	12	66	0.13	50	0.9	13.50	15.00	52	6.5
	131	12	45	0.13	32	0.9	19.65	15.00	76	6.5
	169	12	35	0.13	25	0.9	25.35	15.00	87.5	6.5
	270	12	22	0.13	16	0.9	40.50	15.00	141	6.5
	506	12	11	0.13	9	0.9	60.00	15.00	180	6.5
	810	12	7	0.13	6	0.9	60.00	15.00	180	6.5
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGB37-555-2460	6.25	24	960	0.1	685	0.9	0.94	15.00	4	6.5
	10	24	600	0.1	428	0.9	1.50	15.00	4.8	6.5
	18.8	24	319	0.1	228	0.9	2.82	15.00	6	6.5
	30	24	200	0.1	142	0.9	4.50	15.00	18	6.5
	56	24	107	0.1	76	0.9	8.40	15.00	32	6.5
	90	24	66	0.1	50	0.9	13.50	15.00	52	6.5
	131	24	45	0.1	32	0.9	19.65	15.00	76	6.5
	169	24	35	0.1	25	0.9	25.35	15.00	87.5	6.5
	270	24	22	0.1	16	0.9	40.50	15.00	141	6.5
	506	24	11	0.1	9	0.9	60.00	15.00	180	6.5
	810	24	7	0.1	6	0.9	60.00	15.00	180	6.5
工程师建议 The engineer recommends：30kg以上不支持堵转 Blocked(Stall) rotor is not supported above 30kg

Outline Dimension

5840-31ZY-E5-B0-BA-E5-AF-B8-E5-9B-BE-287-29

Applications

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Packing Details

Quantity: 100pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 32.2 kg/ctn

Net weight: 31.5 kg/ctn

Unit weight: 315g
