JGY-2430 Series DC Worm Gear Motor - 12V/24V Rated Voltage, 40-1000 Reduction Ratio for Multiple Scenarios

JGY-2430 Series DC Worm Gear Motor - 12V/24V Rated Voltage, 40-1000 Reduction Ratio for Multiple Scenarios

JGY-2430 Series: 12V/24V

Rated Voltage: 40-1000 Reduction Ratio.
No-Load: 6-150 RPM (0.06A).
Rated Load: 4-100 RPM (0.2/0.6A), 1.5-25 Kg.cm Torque, 1.05-2.6W Power.
Stall: 6.4-49.2 Kg.cm Torque (0.6/1.3A);
600/1000 Ratio Models: Forbid Stall.

Model:
JGY-2430
Brand:
SHINE
Code:
20221146


Availability:



Inquiry

Product Description

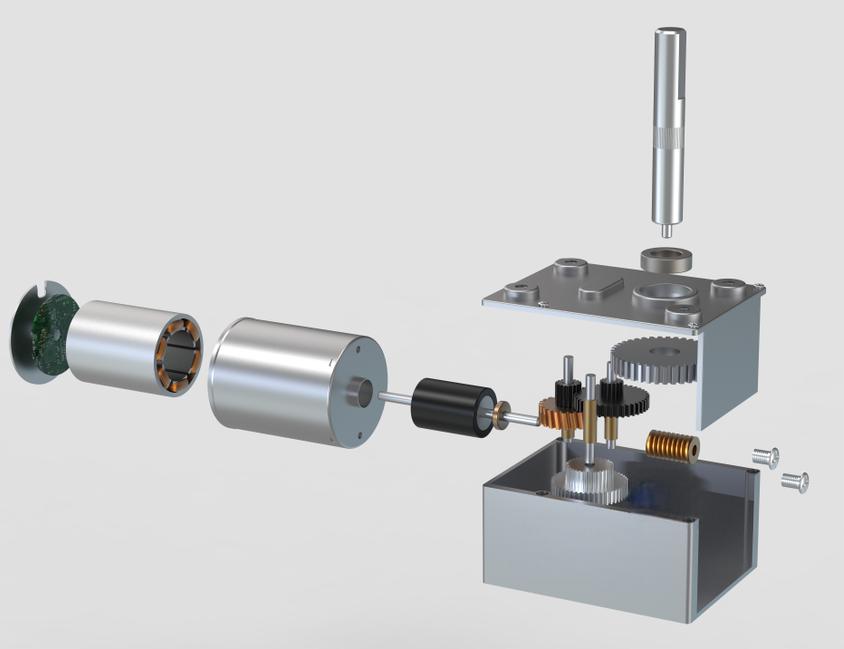

JGY-2430-4

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGY-2430-1260	40	12	150	0.06	100	0.6	1.50	1.57	6.4	1.3
JGY-2430-1260	65	12	90	0.06	70	0.6	2.40	1.76	10	1.3
JGY-2430-1260	150	12	40	0.06	30	0.6	5.60	1.76	24	1.3
JGY-2430-1260	200	12	30	0.06	22	0.6	7.40	1.70	30.3	1.3
JGY-2430-1260	260	12	23	0.06	17	0.6	10.00	1.78	41	1.3
JGY-2430-1260	340	12	18	0.06	13	0.6	12.00	1.63	49.2	1.3
JGY-2430-1260	600	12	10	0.06	7	0.6	22.50	1.65	禁止堵转Forbid Stall
JGY-2430-1260	1000	12	6	0.06	4	0.6	25.00	1.05	禁止堵转Forbid Stall
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGY-2430-2460	40	24	150	0.06	100	0.2	1.50	2.60	6.4	0.6
JGY-2430-2460	65	24	90	0.06	70	0.2	2.40	2.60	10	0.6
JGY-2430-2460	150	24	40	0.06	30	0.2	5.60	2.60	24	0.6
JGY-2430-2460	200	24	30	0.06	22	0.2	7.40	2.60	30.3	0.6
JGY-2430-2460	260	24	23	0.06	17	0.2	10.00	2.60	41	0.6
JGY-2430-2460	340	24	18	0.06	13	0.2	12.00	2.60	49.2	0.6
JGY-2430-2460	600	24	10	0.06	7	0.2	22.50	2.60	禁止堵转Forbid Stall
JGY-2430-2460	1000	24	6	0.06	4	0.2	25.00	2.60	禁止堵转Forbid Stall

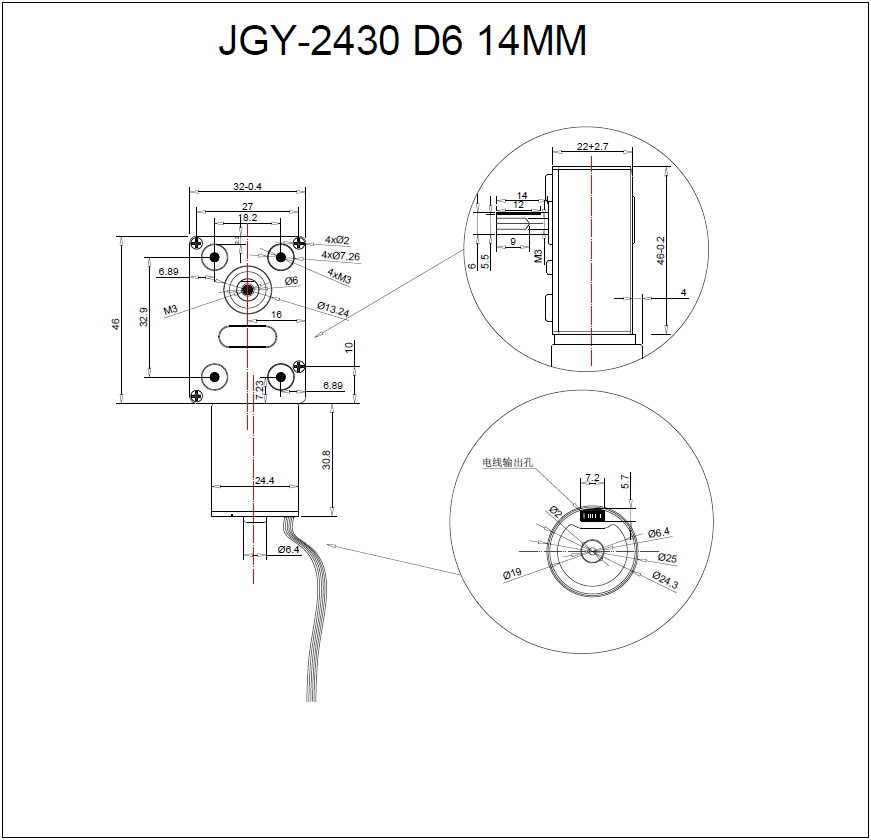

Outline Dimension

2430

Applications

Household & Personal Care

Ideal for household appliances like electric curtains (stable speed control), coffee machines (precise torque), smart toilets, and sweeping robots (reliable power). In personal care, it fits massage equipment (steady operation) and electric hair clippers (smooth rotation), enhancing daily convenience.

Office & Medical Fields

Suitable for office equipment: paper shredders (consistent performance), printers, projectors, and money counters (accurate speed). In medical settings, it powers electric wheelchairs, electric beds, medical pumps, and massage chairs, ensuring safe, efficient operation for patient care.

Industrial & Commercial Use

For industrial equipment: water/electricity valves, air switches, pumps, and automatic lubrication devices (durable under heavy use). In commercial scenarios, it works with vending machines, parking locks, ATM machines, and smart lamps, supporting stable business operations.

Robot & Special Scenarios

Perfect for robots: manipulators (precise movement), drones (reliable power), and service robots. Also adapts to automatic door switches, electric carts, and automatic door opening devices, meeting diverse professional power requirements with its versatile performance.

Packing Details

Quantity: 120pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 19.2 kg/ctn

Net weight: 18.4 kg/ctn

Unit weight: 153g
