5840-31ZY D8 15MM Worm Gear DC Motor 12V/24V High Torque Industrial Grade/Dual Axis

5840-31ZY D8 15MM Worm Gear DC Motor 12V/24V High Torque Industrial Grade/Dual Axis

5840-31ZY D8 15MM Worm Gear DC Motor: 12V/24V options, reduction ratio 17-670, torque up to 70Kg.cm, ideal for heavy-duty industrial use. Features high power (20-35W), stable performance, and 355g unit weight. Suitable for industrial valves, heavy machinery, and high-load automation. Note: Stall forbidden for ratios ≥100.

Model:
5840-31ZY D8
Brand:
SHINE
Code:
20221139


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
5840-31ZY-1280	17	12	470	0.3	380	1.6	2.7	20.00	13.5	6.5
5840-31ZY-1280	31	12	260	0.3	200	1.6	5	20.00	25	6.5
5840-31ZY-1280	49	12	160	0.3	130	1.6	8	20.00	40	6.5
5840-31ZY-1280	100	12	80	0.3	60	1.6	16	20.00	Forbid Stall
5840-31ZY-1280	200	12	40	0.3	30	1.6	32	20.00
5840-31ZY-1280	290	12	27	0.3	20	1.6	46	20.00
5840-31ZY-1280	500	12	16	0.3	12	1.6	70	20.00
5840-31ZY-1280	670	12	12	0.3	9	1.6	70	20.00
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
5840-31ZY-2480	17	24	470	0.2	380	1.2	2.7	35.00	13.5	4.4
5840-31ZY-2480	31	24	260	0.2	200	1.2	5	35.00	25	4.4
5840-31ZY-2480	49	24	160	0.2	130	1.2	8	35.00	40	4.4
5840-31ZY-2480	100	24	80	0.2	60	1.2	16	35.00	Forbid Stall
5840-31ZY-2480	200	24	40	0.2	30	1.2	32	35.00
5840-31ZY-2480	290	24	27	0.2	20	1.2	46	35.00
5840-31ZY-2480	500	24	16	0.2	12	1.2	70	35.00
5840-31ZY-2480	670	24	12	0.2	9	1.2	70	35.00
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
5840-31ZY-2450	17	24	290	0.09	230	0.6	2.7	22.00	13.5	2
5840-31ZY-2450	31	24	160	0.09	130	0.6	5	22.00	25	2
5840-31ZY-2450	49	24	100	0.09	80	0.6	8	22.00	40	2
5840-31ZY-2450	100	24	50	0.09	40	0.6	16	22.00	Forbid Stall
5840-31ZY-2450	200	24	25	0.09	20	0.6	32	22.00
5840-31ZY-2450	290	24	17	0.09	14	0.6	46	22.00
5840-31ZY-2450	500	24	10	0.09	8	0.6	70	22.00
5840-31ZY-2450	670	24	7.5	0.09	5	0.6	70	22.00

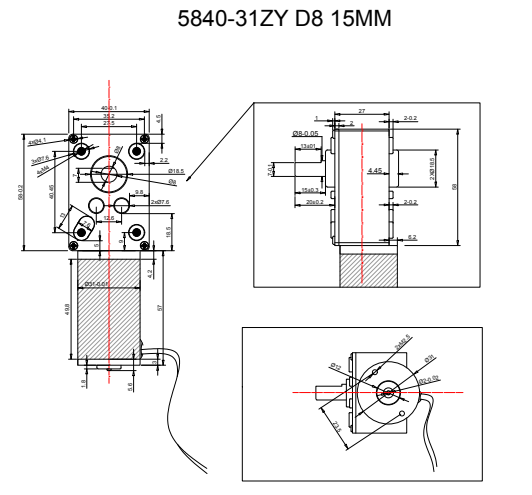

Outline Dimension

5840-31ZYD815MMSHAFTDIMENSION

Applications

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Packing Details

Quantity: 56pcs/ctn
Carton size: 38.5*27.5*24 cm
Gross weight: 20.8 kg/ctn
Net weight: 19.9 kg/ctn
Unit weight: 355g
