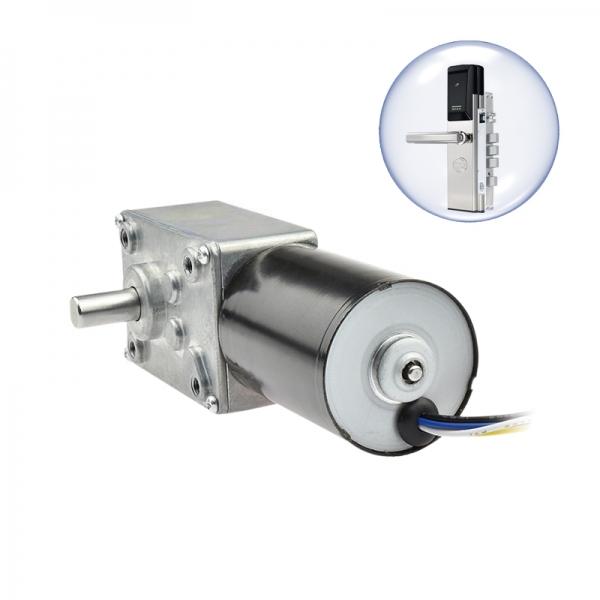

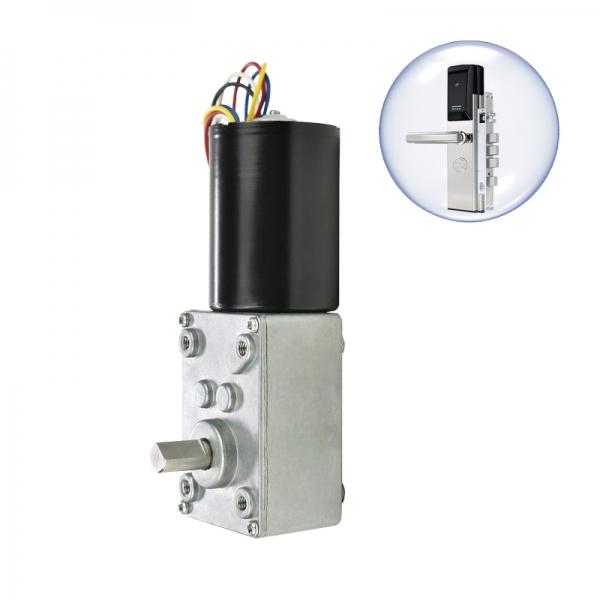

5840-3650 D8 15MM DC Worm Gear Motor 12V/24V Reliable Performance

Model: 5840-3650 D8 15MM

Voltage: 12V, 24V

Reduction Ratio: 17-670

No-Load Speed: 6-470R

PMNo-Load Current: 0.15-0.3A

Rated Torque: 1.3-70Kg.cm

Power: 2.09-10.89W

Unit Weight: 385g

Gearbox Size: 58×40×34mm

Packing: 56pcs/ctn (38.5×27.5×24cm, 22.3kg gross)

Note: Stall prohibited above 200 ratio

Model:
5840-3650
Brand:
SHINE
Code:
20221141


Availability:



Inquiry

Product Description

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall			减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)		电流 Current (A)	减速箱长度Gearbox Length (MM)
5840-3650-1240	17	12	235	0.15	180	0.4	1.3	2.45	4.3		1.2	584034mm
5840-3650-1240	31	12	130	0.15	100	0.4	2.4	2.51	8		1.2	584034mm
5840-3650-1240	50	12	80	0.15	60	0.4	4	2.51	12.5		1.2	584034mm
5840-3650-1240	100	12	40	0.15	30	0.4	8	2.51	25		1.2	584034mm
5840-3650-1240	200	12	20	0.15	15	0.4	16	2.51	51		1.2	584034mm
5840-3650-1240	290	12	14	0.15	10	0.4	23.2	2.43	70		1.2	584034mm
5840-3650-1240	500	12	8	0.15	6	0.4	37.5	2.36	70		1.2	584034mm
5840-3650-1240	670	12	6	0.15	4	0.4	50	2.09	70		1.2	584034mm
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall			减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)		电流 Current (A)	减速箱长度Gearbox Length (MM)
5840-3650-1280	17	12	470	0.3	380	1.6	2.7	10.74	8.5		4	584034mm
5840-3650-1280	31	12	260	0.3	200	1.6	4.9	10.26	15.5		4	584034mm
5840-3650-1280	50	12	160	0.3	130	1.6	8	10.89	25		4	584034mm
5840-3650-1280	100	12	80	0.3	60	1.6	16	10.05	50		4	584034mm
5840-3650-1280	200	12	40	0.3	30	1.6	32	10.05	70		4	584034mm
5840-3650-1280	290	12	27	0.3	20	1.6	46	9.63	70		4	584034mm
5840-3650-1280	500	12	16	0.3	12	1.6	70	8.80	70		4	584034mm
5840-3650-1280	670	12	12	0.3	9	1.6	70	6.60	70		4	584034mm
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall			减速箱长度Gearbox Length (MM)
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)		转矩Torque (Kg.cm)	电流 Current (A)	减速箱长度Gearbox Length (MM)
5840-3650-2480	17	24	470	0.3	380	0.8	2.7	10.74		8.5	2.4	584034mm
5840-3650-2480	31	24	260	0.3	200	0.8	4.9	10.26		15.5	2.4	584034mm
5840-3650-2480	50	24	160	0.3	130	0.8	8	10.89		25	2.4	584034mm
5840-3650-2480	100	24	80	0.3	60	0.8	16	10.05		50	2.4	584034mm
5840-3650-2480	200	24	40	0.3	30	0.8	32	10.05		70	2.4	584034mm
5840-3650-2480	290	24	27	0.3	20	0.8	46	9.63		70	2.4	584034mm
5840-3650-2480	500	24	16	0.3	12	0.8	70	8.80		70	2.4	584034mm
工程师建议 The engineer recommends：200减速比以上不支持堵转 Blocked(Stall) rotor is not supported above 200 ratio

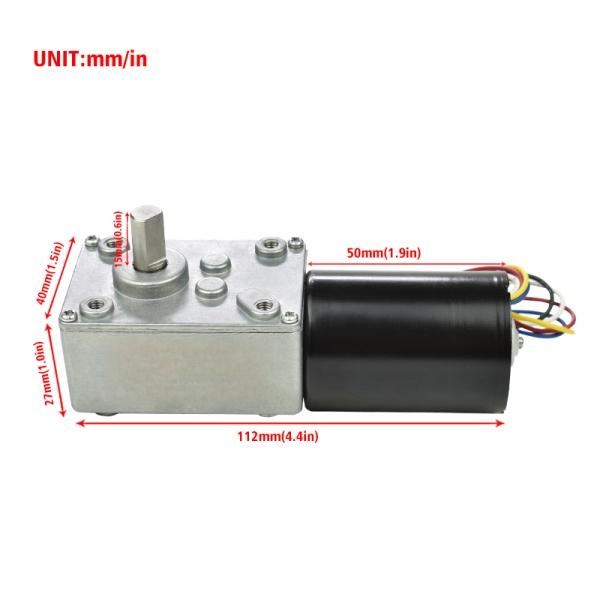

Outline Dimension

5840-3650-286-29

Applications

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Packing Details

Quantity: 56pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 22.3 kg/ctn

Net weight: 21.6 kg/ctn

Unit weight: 385g
