JGY-2838 Series DC Worm Gear Motor - 12V/24V, 40-1000 Reduction Ratio for Multi-Scenario Use

JGY-2838 Series DC Worm Gear Motor - 12V/24V, 40-1000 Reduction Ratio for Multi-Scenario Use

Model Series: JGY-2838 Series
Rated Voltage & Reduction Ratio: 12V/24V rated voltage; 40-1000 reduction ratio
No-Load Performance: 6-300 RPM speed (0.10A for 12V model, 0.20A for 24V model)
Rated Load Performance: 4-240 RPM speed (0.25A for 12V model, 0.5A for 24V model); 1.5-30 Kg.cm rated torque; 6W (12V model) - 12W (24V model) rated power
Stall Performance: 3.75-56 Kg.cm stall torque (0.75A for 12V model, 1.3A for 24V model)
Special Specification (260 Reduction Ratio Models): Maximum load 30kg; Stall operation forbidden

Model:
JGY-2838
Brand:
SHINE
Code:
20221147


Availability:



Inquiry

Product Description

JGY-2838-3

Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGY-2838-1260	40	12	150	0.10	100	0.25	1.50	6.00	3.75	0.75
JGY-2838-1260	65	12	90	0.10	70	0.25	2.60	6.00	5.5	0.75
JGY-2838-1260	150	12	40	0.10	30	0.25	6.00	6.00	15	0.75
JGY-2838-1260	200	12	30	0.10	22	0.25	8.00	6.00	18	0.75
JGY-2838-1260	260	12	23	0.10	17	0.25	10.00	6.00	Max load 30kg , Forbid Stall
JGY-2838-1260	340	12	17	0.10	13	0.25	13.50	6.00
JGY-2838-1260	600	12	10	0.10	7	0.25	15.00	6.00
JGY-2838-1260	1000	12	6	0.10	4	0.25	15.00	6.00
Motor Model	减速比Reduction ratio	空载No-Load			额定负载Rated Load				堵转 Stall
Motor Model	减速比Reduction ratio	额定电压Rated Voltage (V)	转数Speed (RPM ±10%)	电流 Current (A)	转数Speed (RPM ±10%)	电流 Current (A)	转矩Torque (Kg,cm)	功率 Power(W)	转矩Torque (Kg.cm)	电流 Current (A)
JGY-2838-24120	40	24	300	0.20	240	0.5	3.00	12.00	10.5	1.3
JGY-2838-24120	65	24	184	0.20	147	0.5	5.20	12.00	18.2	1.3
JGY-2838-24120	150	24	80	0.20	64	0.5	12.00	12.00	42	1.3
JGY-2838-24120	200	24	60	0.20	48	0.5	16.00	12.00	56	1.3
JGY-2838-24120	260	24	46	0.20	36	0.5	20.00	12.00	Max load 30kg , Forbid Stall
JGY-2838-24120	340	24	35	0.20	28	0.5	27.00	12.00
JGY-2838-24120	600	24	20	0.20	16	0.5	30.00	12.00
JGY-2838-24120	1000	24	12	0.20	9	0.5	30.00	12.00

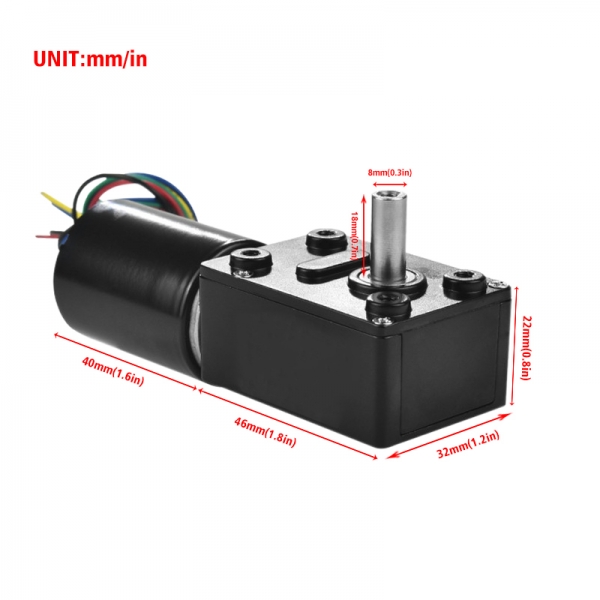

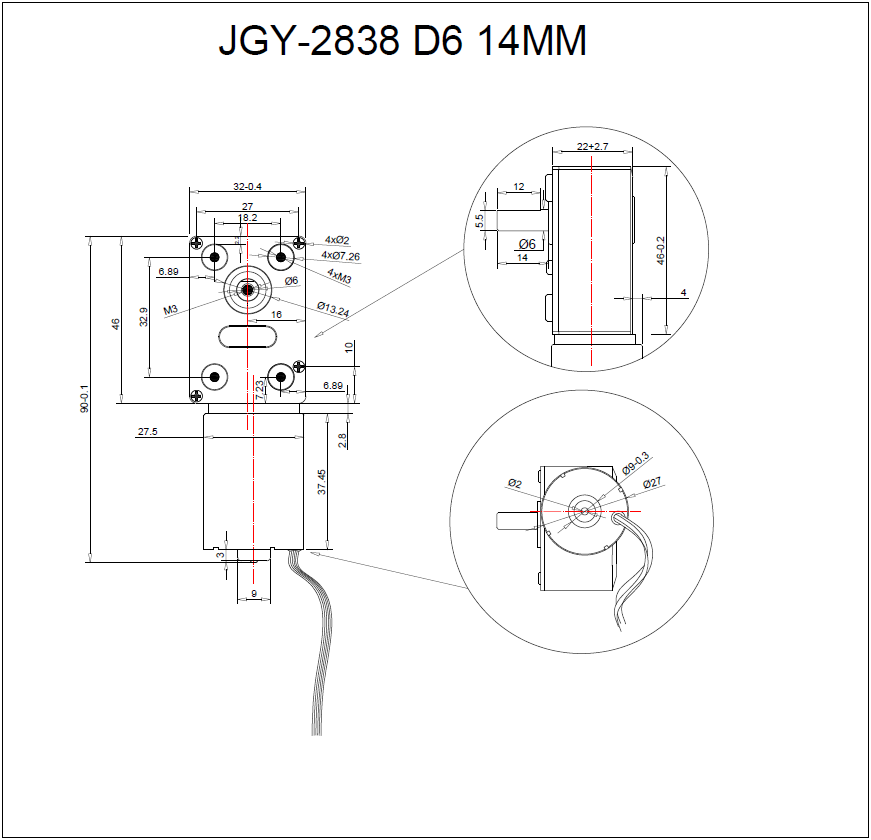

Outline Dimension

2838

Applications

Household & Personal Care

Fit electric curtains (smooth slide), coffee machines (precise brewing), smart toilets, sweeping robots, smart locks. Suits massage equipment (comfort) and hair clippers (smooth trim).

Office & Medical Fields

For paper shredders (efficient), printers, projectors (clear output), money counters (accurate). Powers massage chairs, electric carts, medical pumps, wheelchairs (safe).

Industrial & Commercial Use

Ideal for water/electric valves (durable), pumps, automatic doors. Works with vending machines (stable), parking locks, ATMs (uninterrupted business).

Robot & Special Scenarios

Matches manipulators (accurate move), drones (stable flight), service robots. Adapts to diverse professional power needs.

Packing Details

Quantity: 120pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 24.9 kg/ctn

Net weight: 24 kg/ctn

Unit weight: 200g
