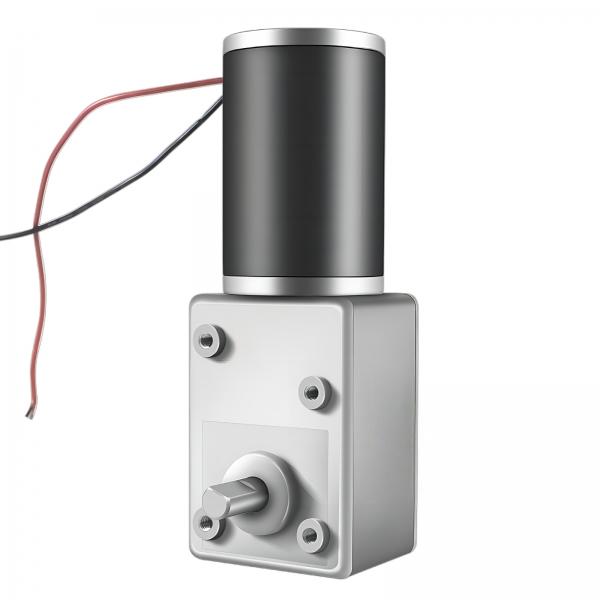

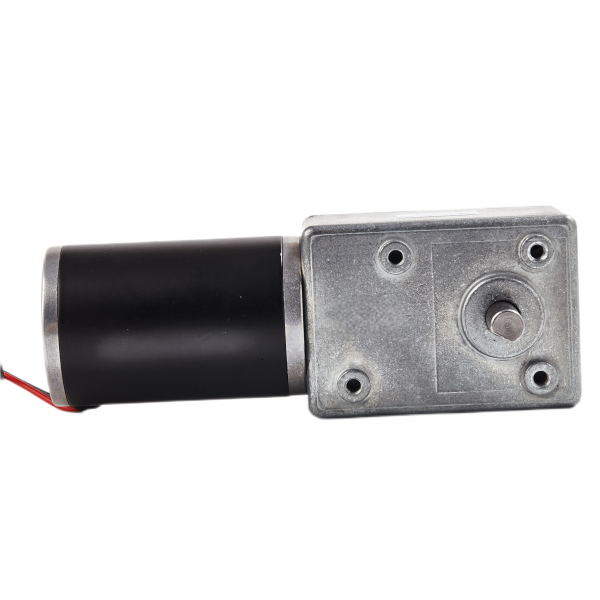

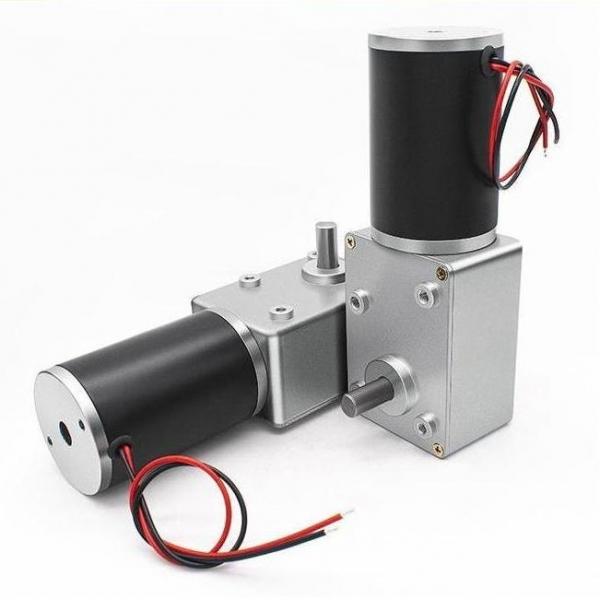

5882-50ZY D10 20MM Worm Gear DC Motor 12-24V High Torque Industrial Grade

Rated Voltage: 12-24V
Reduction Ratio: 16-1015I
No-Load Current mA(≤): 350-2000mA
No-load speed(RPM): 1.5~440rpm
Rated Torque(Kg,cm): 10-240kg,cm
Rated Speed(RPM):1.5-380rpm
Rated Current mA(≤): 900-8500mA
Stall/Maximum Torque (Kg,cm): 25-720kg,cm
Stall Current(A) : 2-19A
Shaft: 416 Steel, Φ10.0 Length 20mm ,
Gear: Steel gear . Dual ball bearingRated Voltage: 12-24V
Reduction Ratio: 16-1015I
No-Load Current mA(≤): 350-2000mA
No-load speed(RPM): 1.5~440rpm
Rated Torque(Kg,cm): 10-240kg,cm
Rated Speed(RPM):1.5-380rpm
Rated Current mA(≤): 900-8500mA
Stall/Maximum Torque (Kg,cm): 25-720kg,cm
Stall Current(A) : 2-19A
Shaft: 416 Steel, Φ10.0 Length 20mm ,
Gear: Steel gear . Dual ball bearing

Model:
5882-50ZY
Brand:
SHINE
Code:
20221142


Availability:



Inquiry

Product Description

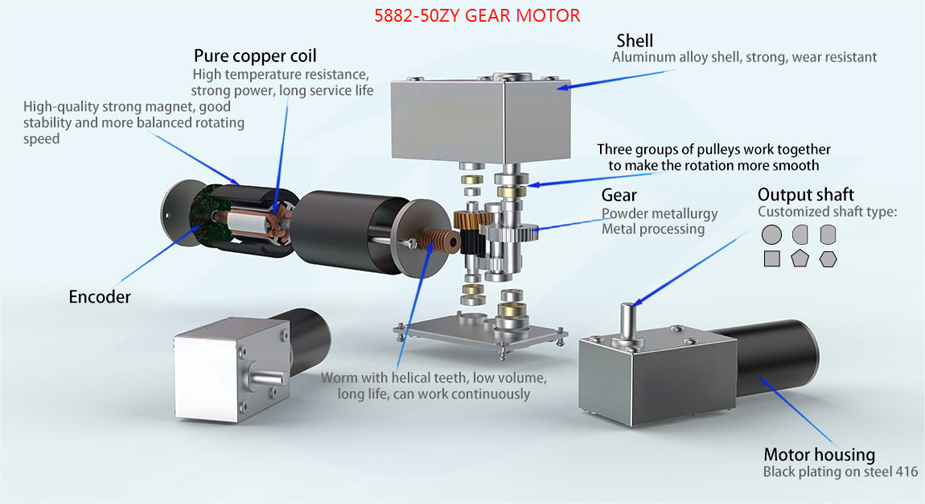

5882-50ZYWormgearmotor

Motor Model	Reduction ratio	No-Load			Rated Load				Stall
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)
5882-50ZY	16	12	440	2	280	8.5	10	102.00	25	16
5882-50ZY	16	12	310	1.2	185	6.3	10	75.60	20	12
5882-50ZY	32	12	190	2	126	6.5	20	78.00	40	16
5882-50ZY	48	12	150	2	99	6.4	35	76.80	60	14.5
5882-50ZY	48	12	120	1.5	83	5.5	30	66.00	50	13
5882-50ZY	89	12	80	2	58	6.5	60	78.00	110	15.5
5882-50ZY	89	12	68	1.8	45	5.8	50	69.60	100	19
5882-50ZY	169	12	42	1.7	30	5.3	80	63.60	180	16
5882-50ZY	169	12	35	1.5	26	5.2	70	62.40	160	15
5882-50ZY	225	12	24	1.5	18	6.2	120	74.40	Forbid Stall	17
5882-50ZY	392	12	18	2	14	6.5	180	78.00		16.5
5882-50ZY	510	12	12	1.7	8	6.2	200	74.40		17.5
5882-50ZY	694	12	9	2	6	5.8	200	69.60		17.5
5882-50ZY	1015	12	6	1.5	4	6	240	72.00		15.5
5882-50ZY	1015	12	3	0.3	2	1.5	200	18.00		5
5882-50ZY	1015	12	1.5	0.3	1	1	200	12		2
Motor Model	Reduction ratio	No-Load			Rated Load				Stall
Motor Model	Reduction ratio	Rated Voltage (V)	Speed (RPM ±10%)	Current (A)	Speed (RPM ±10%)	Current (A)	Torque (Kg,cm)	Power(W)	Torque (Kg.cm)	Current (A)
5882-50ZY	16	24	440	1.2	295	4.2	12	100.80	30	12
5882-50ZY	16	24	310	0.6	205	3	10	72.00	25	8
5882-50ZY	32	24	190	1	135	3.8	25	91.20	50	13
5882-50ZY	48	24	150	1.1	105	6	50	144.00	140	16
5882-50ZY	48	24	120	0.9	86	4.5	40	108.00	100	12
5882-50ZY	89	24	90	1.1	65	3.5	70	84.00	180	16
5882-50ZY	89	24	70	0.9	51	3.5	55	84.00	160	12
5882-50ZY	169	24	50	1.2	42	6.2	140	148.80	Forbid Stall	18.5
5882-50ZY	169	24	35	0.8	26	3.2	110	76.80		11
5882-50ZY	225	24	24	0.9	17	4	150	96.00		12.5
5882-50ZY	392	24	18	0.9	13	3.5	200	84.00		13
5882-50ZY	510	24	12	0.7	8	3.6	220	86.40		12
5882-50ZY	694	24	9	0.9	6	3	250	72.00		13.5
5882-50ZY	1015	24	6	0.7	4	3.5	250	84.00		11.5
5882-50ZY	1015	24	3	0.4	2	1.3	240	31.20		13.5
5882-50ZY	1015	24	1.5	0.35	1	0.9	200	21.6		2

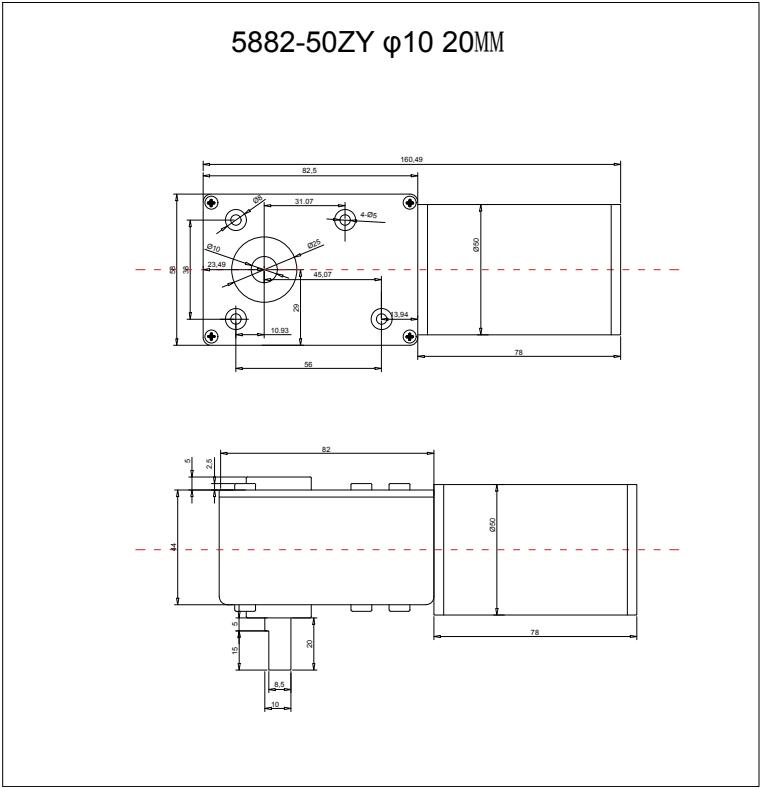

Outline Dimension

5882-50ZYDimension

Applications

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Household appliances: electric curtains, integrated stoves, coffee machines, smart toilets, sweeping robots, dishwashers, range hoods, smart door locks

Personal care: curling iron, massage equipment, electric hair clipper

Office equipment: paper shredders, printers, projectors, banknote counters, coin counters

Medical equipment: massage chairs, electric carts, medical pumps, electric beds, electric wheelchairs

Industrial equipment: water and electricity valves, air switches, pumps, automatic door switches, automatic lubrication equipment

Commercial equipment: vending machines, parking locks, ATM machines, smart lamps

Robots: manipulators, drones, service robots

Packing Details

Quantity: 56pcs/ctn

Carton size: 38.5*27.5*24 cm

Gross weight: 22.3 kg/ctn

Net weight: 21.6 kg/ctn

Unit weight: 385g
