Robust & Corrosion-Resistant Design

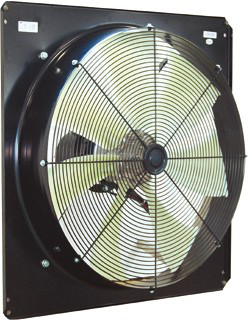

The ZF800 Series features rust-proof aluminum or plastic blades, ensuring long-term durability in harsh industrial environments. Cold-rolled steel guide plates optimize airflow efficiency, while motor housings and end caps are constructed from aluminum—powder-coated with pure polyester outdoor paint for superior corrosion resistance. Anodization options for blades and housings further enhance longevity.
High-Performance Ventilation

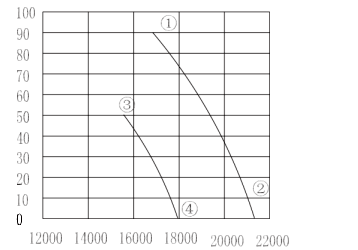

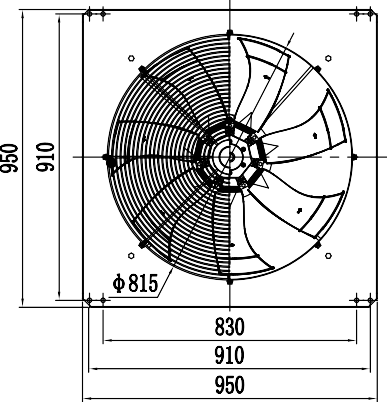

With an 800mm blade diameter and variable speeds (730-930rpm), these fans deliver 17000-22000m³/h airflow, effectively ventilating large spaces like manufacturing plants, warehouses, and logistics centers. The axial flow design ensures energy-efficient operation, reducing power consumption while maintaining consistent air circulation to remove heat, fumes, and pollutants.
Reliable & Low-Noise Operation
Equipped with high-quality motors and precision-balanced blades, the ZF800 Series operates at 65-72dB(A), making it suitable for industrial settings where noise control is essential. The modular design allows easy installation and maintenance, with compatibility with standard ventilation systems. Whether for exhaust or supply air, it adapts to diverse industrial needs.
Specification Table
| Model | Blade Diameter (mm) | Voltage (V) | Frequency (Hz) | Speed (rpm) | Power (kW) | Current (A) | Airflow (m³/h) | Noise (dB(A)) |
| ZFB800-7S-01 | 800 | 380 | 50 | 930 | 1.2 | 2.7 | 20500 | 72 |
| ZFB800-7S-02 | 800 | 380 | 50 | 740 | 0.75 | 2.5 | 17000 | 66 |
| ZFA800-7S-01 | 800 | 380 | 50 | 920 | 1.3 | 3 | 22000 | 71 |
| ZFA800-7S-02 | 800 | 380 | 50 | 730 | 0.75 | 2.7 | 18000 | 65 |
Application Scenarios (200 words)
