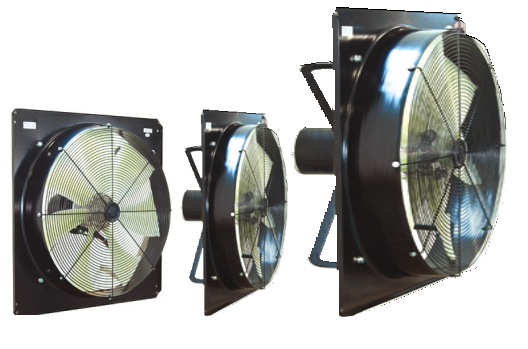

ZF Series Frequency Conversion Axial Flow Fans - Intelligent Ventilation Solutions

Product Details:

Structural features:

• Adopt the current common structure and installation method;

• Adopt positionless sensing design and unique communication function design, and can be used with the controller to achieve intelligent control;

• The whole machine has low vibration, low noise, and easy installation;

• Adopt pulse width control technology, stepless speed regulation range is extraordinarily wide;

• High efficiency, low energy consumption, in line with international and domestic environmental protection requirements and energy-saving policies

ZF800 series frequency conversion speed regulation axial flow fan

serial number	type	Wind blade diameter	voltage	rotate speed	Power rating	current	Air
1	ZFB800-7Z-01	800	338DC	930	1.2	4.5	21000
2	ZFB800-7Z-02	800	338DC	740	0.75	3	18000
3	ZFA800-7Z-01	800	338DC	920	1.3	4.5	22000
4	ZFA800-7Z-02	800	338DC	730	0.75	3	18000

ZF700 series frequency conversion speed regulation axial flow fan

serial number	type	Wind blade diameter	voltage	rotate speed	Power rating	current	Air
1	ZFA700-7Z-01	700	338DC	920	0.75	3.1	14800
2	ZFA700-6Z-01	700	338DC	930	1.1	4.5	15500
3	ZFA700-6Z-02	700	338DC	730	0.75	3.1	12800
4	ZFA700-4Z-01	700	338DC	930	0.55	2.3	15000
5	ZFA700-4Z-02	700	338DC	730	0.37	1.6	11800

ZF650 series frequency conversion speed regulation axial flow fan

serial number	type	Wind blade diameter	voltage	rotate speed	Power rating	current	Air
1	ZFA650-6Z-01	650	338DC	930	0.55	2.3	12450
2	ZFA650-6Z-02	650	338DC	720	0.25	1	9750
3	ZFA650-4Z-01	650	338DC	930	0.55	2.3	12200
4	ZFA650-4Z-02	650	338DC	720	0.25	1	9700

ZF500 SERIES AXIAL FAN

serial number	type	Wind blade diameter	voltage	rotate speed	Power rating	current	Air
1	ZFA500-3Z-01	500	338DC	930	0.1	0.3	5200
2	ZFA500-4Z-01	500	338DC	930	0.18	0.55	5800

The ZF Series is widely used in industrial workshops, warehouses, data centers, and commercial buildings. The ZF500 and ZF650 series are ideal for small-to-medium spaces like retail stores and offices, providing quiet, efficient airflow. The ZF700 and ZF800 series handle large-scale ventilation needs in factories, logistics centers, and exhibition halls, ensuring optimal air quality and temperature control.

In intelligent buildings, the fans integrate with building management systems for automated speed adjustment based on occupancy or air quality, reducing energy waste. Their durable design and low maintenance requirements make them suitable for continuous operation in demanding environments, from manufacturing plants to high-tech facilities.

Specifications are for reference only. Customized designs available. Contact our technical department for updates.
