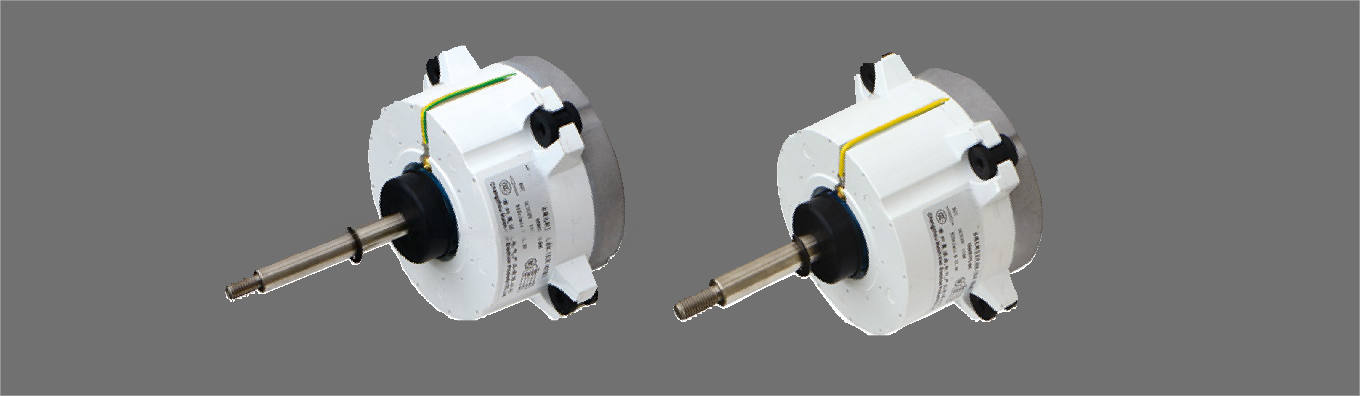

The MWS Series DC Motor (F Series)
SHINE
20221117
Product Description
Integrated Design for Convenience
The MWS (F Series) adopts a motor-drive integrated scheme, with the drive built into the motor. Customers only need to provide DC voltage to realize stepless speed regulation, simplifying installation and reducing external wiring. Compared with traditional iron shell motors, its more compact size saves space, easily fitting into outdoor unit enclosures.
Enhanced Durability for Outdoor Use
The stator winding is encapsulated by BMC, which boasts strong waterproof and moisture-resistant performance—critical for outdoor environments exposed to rain, dew, or humidity. This design extends the motor’s service life significantly. Additionally, the overall noise is 2-3 decibels lower, minimizing outdoor operational noise pollution.
Comprehensive Protection & Flexibility
Equipped with phase current protection, short circuit protection, and overheating protection, the motor avoids damage from abnormal working conditions, ensuring stable long-term operation. It supports customizable steering to match different outdoor unit fan rotation requirements. Ball/ball bearings enhance smooth operation, while B-class insulation and IP44 protection further boost safety and adaptability to harsh outdoor climates.

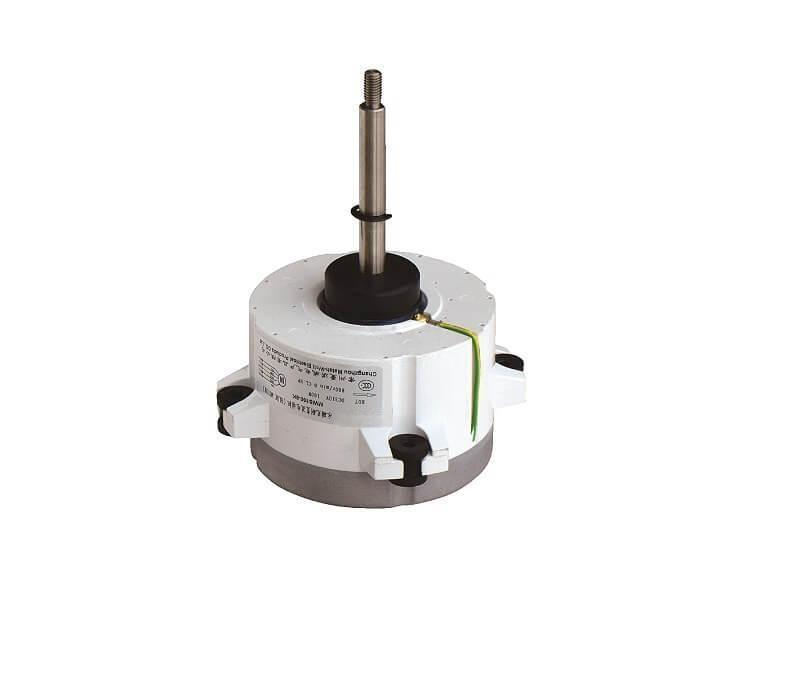

structure
• The drive is installed inside the motor, the customer brings its own power supply, provides DC voltage to the motor drive, to achieve stepless speed regulation, the scheme is the motor and drive integrated;
• The size of this model is more compact than the current conventional iron shell structure, the stator winding is encapsulated by BMC, which has strong waterproof and moisture resistance, the motor has a longer service life, and the overall noise can be reduced by 2-3 decibels compared with the current iron shell structure.
Main technical data
| 型号 TYPE | 电压 Voltage | 频率 Frequency | 电流 Current (A) | 输入 Input (W) | 输出 Output (W) | 转速 Speed (r/min) | 效率 Efficiency (%) | IP 防护等级 | 备注 |
|---|---|---|---|---|---|---|---|---|---|
| MWS100-8K | 280-380 VDC | / | 0.48/0.35 | 134 | 100 | 800 | 75 | 44 | 单轴 |
| MWS130-8K | 280-380 VDC | / | 0.62/0.46 | 173 | 130 | 800 | 75 | 44 | 单轴 |
| MWS150-8K | 280-380 VDC | / | 0.71/0.53 | 200 | 150 | 820 | 75 | 44 | 单轴 |
| MWS170-8K | 280-380 VDC | / | 0.81/0.6 | 226 | 170 | 820 | 75 | 44 | 单轴 |
| MWS190-8K | 280-380 VDC | / | 0.9/0.67 | 253 | 190 | 820 | 75 | 44 | 单轴 |
• Ambient temperature: -15~+50°C
• Storage temperature: -30~+60°C
• Degree of protection: IP44
• Power range: 100W~190W
• Insulation Class: B
• Steering: According to customer requirements
• Bearing/Mounting: Ball/ Ball bearing
• Phase current protection
• Short circuit protection
• Overheating protection
• No position sensing
• Sine wave 180° drive

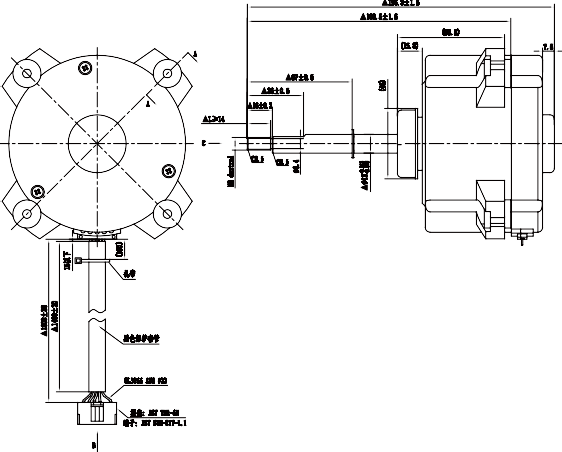

Drawing
