Integrated Design & Compact Structure

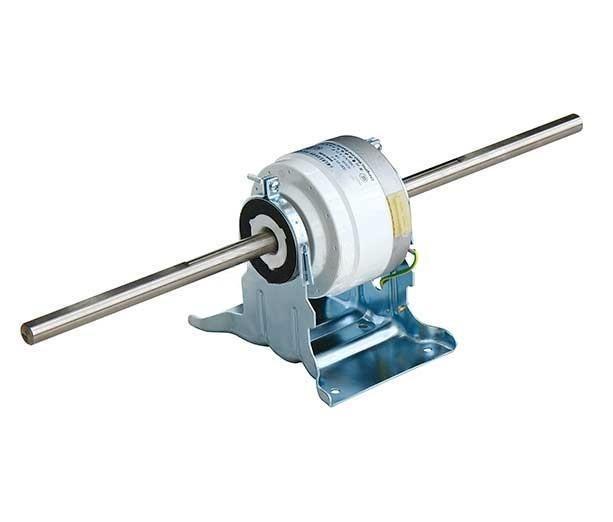

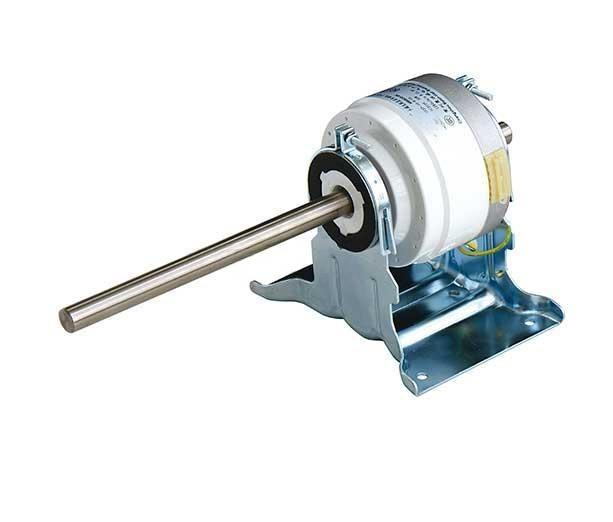

The MWS Series adopts a motor-driver integrated scheme, with the driver built into the motor. Customers only need to provide DC voltage for direct drive, enabling convenient stepless speed regulation. Compared with conventional iron shell motors, its structure is more compact, saving installation space and facilitating integration with fan coil units.
Superior Performance & Durability
The stator winding uses BMC molding technology, ensuring excellent waterproof and moisture-resistant performance. This design extends the motor’s service life and reduces overall noise by 2-3 decibels, creating quieter indoor environments. Equipped with ball bearings, it operates smoothly, while B-class insulation enhances safety and heat resistance.
Comprehensive Protection & Flexibility
The motor is equipped with multiple protection functions: phase current protection, short circuit protection, and overheating protection, ensuring stable operation in various conditions. It supports customization of single/dual axis and steering according to customer requirements. With a power range of 30W-125W and 75% high efficiency, it meets diverse fan coil operation needs.
Specification Table
| Model | Voltage | Frequency | Current (A) | Input (W) | Output (W) | Rotate Speed (rpm) | Efficiency (%) | IP Protection Level | Remark |
| MWS30-8K | 280-380 VDC | - | 0.14/0.10 | 40 | 30 | 1350 | 75 | 42 | Single/dual axis customizable |
| MWS50-8K | 280-380 VDC | - | 0.23/0.17 | 67 | 50 | 1350 | 75 | 42 | Single/dual axis customizable |
| MWS70-8K | 280-380 VDC | - | 0.32/0.25 | 93 | 70 | 1350 | 75 | 42 | Single/dual axis customizable |
| MWS90-8K | 280-380 VDC | - | 0.42/0.32 | 120 | 90 | 1350 | 75 | 42 | Single/dual axis customizable |
| MWS110-8K | 280-380 VDC | - | 0.52/0.38 | 146 | 110 | 1350 | 75 | 42 | Single/dual axis customizable |
| MWS125-8K | 280-380 VDC | - | 0.6/0.44 | 166 | 125 | 1350 | 75 | 42 | Single/dual axis customizable |
Ambient temperature: -15 to +50°C
Storage temperature: -30 to +60°C
Insulation Class: B
Steering: Customizable per customer requirements
Bearings/Mounting: Ball bearings
Protection functions: Phase current protection, short circuit protection, overheating protection
Drive type: Sine wave 180° drive, no position sensing
Note: The above are representative specifications for reference only. It can be optimized according to user requirements. If there are any changes without prior notice, please contact our company's technical department.
