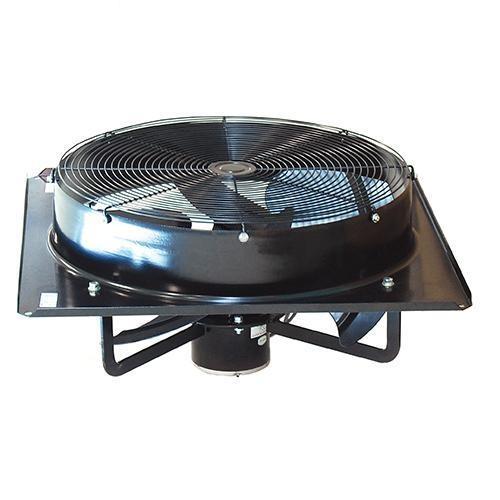

ZF650 Series Axial Flow Fan - Industrial Ventilation Solution

Product Details:

Structural features:

• Anti-rust aluminum alloy blades and plastic blades;

• Cold-rolled plate tensile deflector;

• The motor shell and end cap have two structures: aluminum alloy and steel plate;

• Impeller, air deflector, grille cover, motor sprayed pure polyester outdoor powder. The impeller and motor housing can also be anodized.

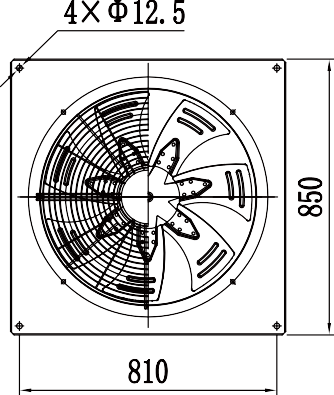

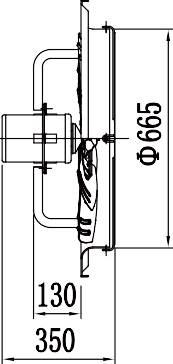

Typical form factor

Main technical data

serial number	type	Wind blade diameter	Voltage	Frequency	Rotational speed	Power rating	current	Capacitance	Air volume	Noise
1	ZFA650-6S-01	650	380~	50	932	0.55	1.82	/	12450	67
2	ZFA650-6S-02	650	380~	50	717	0.25	1.3	/	9750	61
3	ZFA650-4S-01	650	380~	50	942	0.55	1.83	/	12200	67
4	ZFA650-4S-02	650	380~	50	721	0.25	1.29	/	9700	62

Performance parameters

Project serial number	rotate speed	power	current	noises
	RPM	W	A	dB(A)
1	930	836	1.92	67
2	942	755	1.83	66

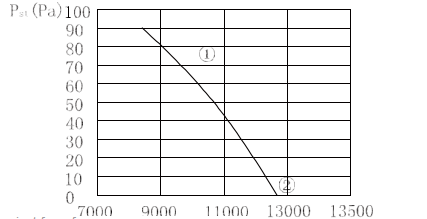

Performance curve

Note: The above are representative specifications and are for reference only. It can be optimized according to user requirements. If there are any changes without prior notice, you can contact the technical department of our company.

The ZF650 Series is widely used in manufacturing plants, workshops, and warehouses for exhaust and supply air ventilation. Its high airflow capacity (up to 12450m³/h) efficiently removes heat generated by machinery, improves air quality by eliminating dust and fumes, and maintains comfortable working conditions for employees.

In commercial buildings, such as shopping malls and logistics centers, the fan’s durable design and low noise operation make it suitable for large open spaces requiring consistent air circulation. The corrosion-resistant materials ensure reliable performance in outdoor or humid environments, such as rooftop ventilation systems or coastal industrial facilities.
