ZF450 Series Axial Flow Fan - Industrial Ventilation & Cooling Solution

Product Details:

Structural features:

• Anti-rust aluminum alloy blades and plastic blades;

• Cold-rolled plate tensile deflector;

• The motor shell and end cap have two structures: aluminum alloy and steel plate;

• Impeller, air deflector, grille cover, motor sprayed pure polyester outdoor powder. The impeller and motor housing can also be anodized.

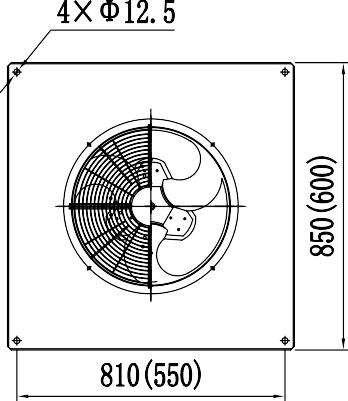

Typical form factor

Main technical data

serial number	type	Wind blade diameter	Voltage	Frequency	Rotational speed	Power rating	current	Capacitance	Air volume	Noise
1	ZFA450-3S-01	450	380~	50	1450	0.18	0.85	/	5300	58
2	ZFA450-3S-02	450	380~	50	1436	0.18	0.89	/	5800	58
3	ZFA450-3S-03	450	380~	50	1433	0.25	1.05	/	6300	60
4	ZFA450-4S-01	450	380~	50	1420	0.18	0.87	/	4800	58
5	ZFA450-4S-02	450	380~	50	1440	0.18	0.85	/	5700	58
6	ZFA450-4S-03	450	380~	50	1420	0.25	0.99	/	6300	60

Performance parameters

Project serial number	rotate speed	power	current	noises
	RPM	W	A	dB(A)
1	1411	478	1.04	55
2	1420	439	0.99	54

Performance curve

The ZF Series is widely used in industrial workshops, warehouses, data centers, and commercial buildings. The ZF500 and ZF650 series are ideal for small-to-medium spaces like retail stores and offices, providing quiet, efficient airflow. The ZF700 and ZF800 series handle large-scale ventilation needs in factories, logistics centers, and exhibition halls, ensuring optimal air quality and temperature control.

In intelligent buildings, the fans integrate with building management systems for automated speed adjustment based on occupancy or air quality, reducing energy waste. Their durable design and low maintenance requirements make them suitable for continuous operation in demanding environments, from manufacturing plants to high-tech facilities.

Specifications are for reference only. Customized designs available. Contact our technical department for updates.
