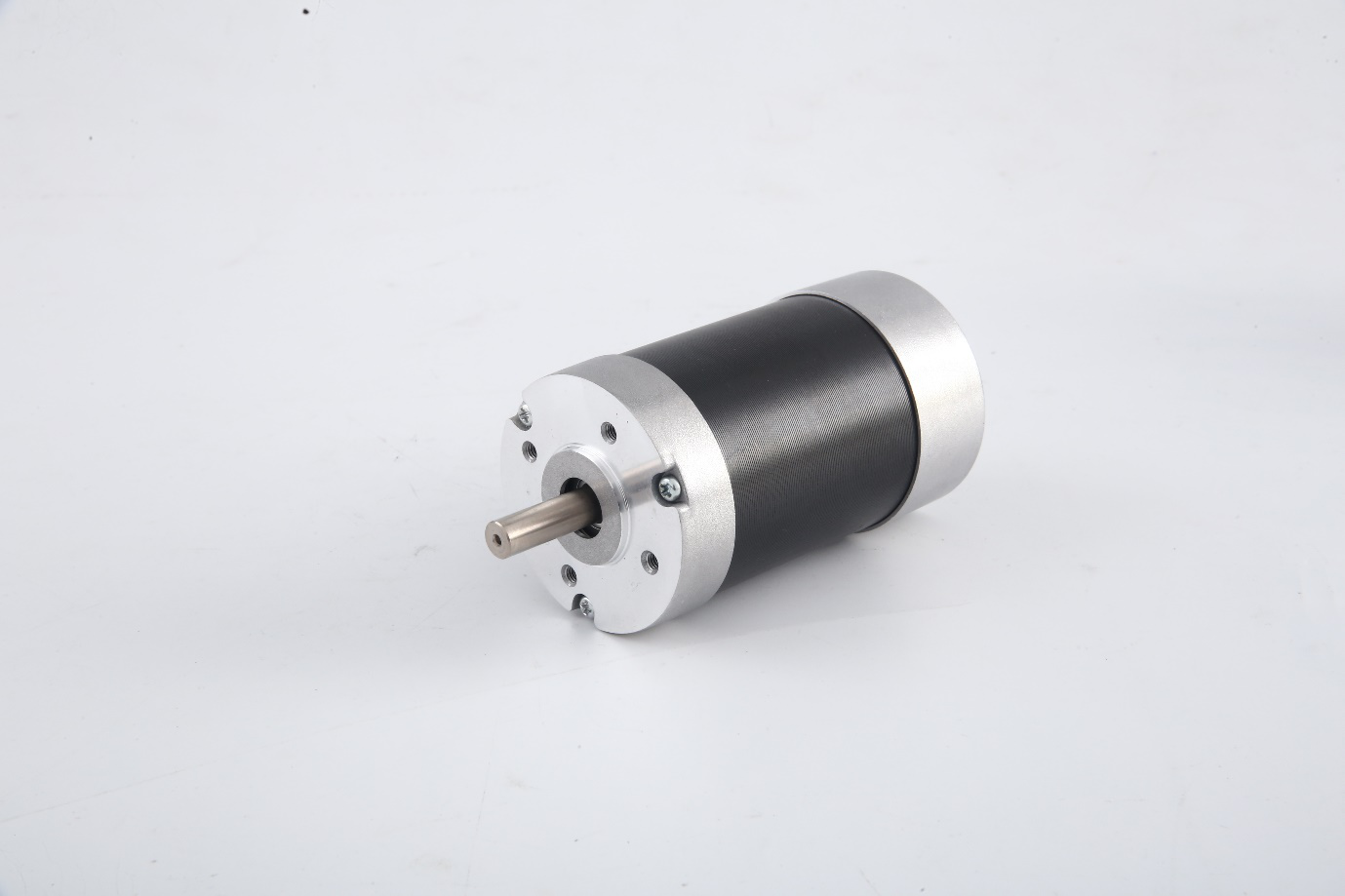

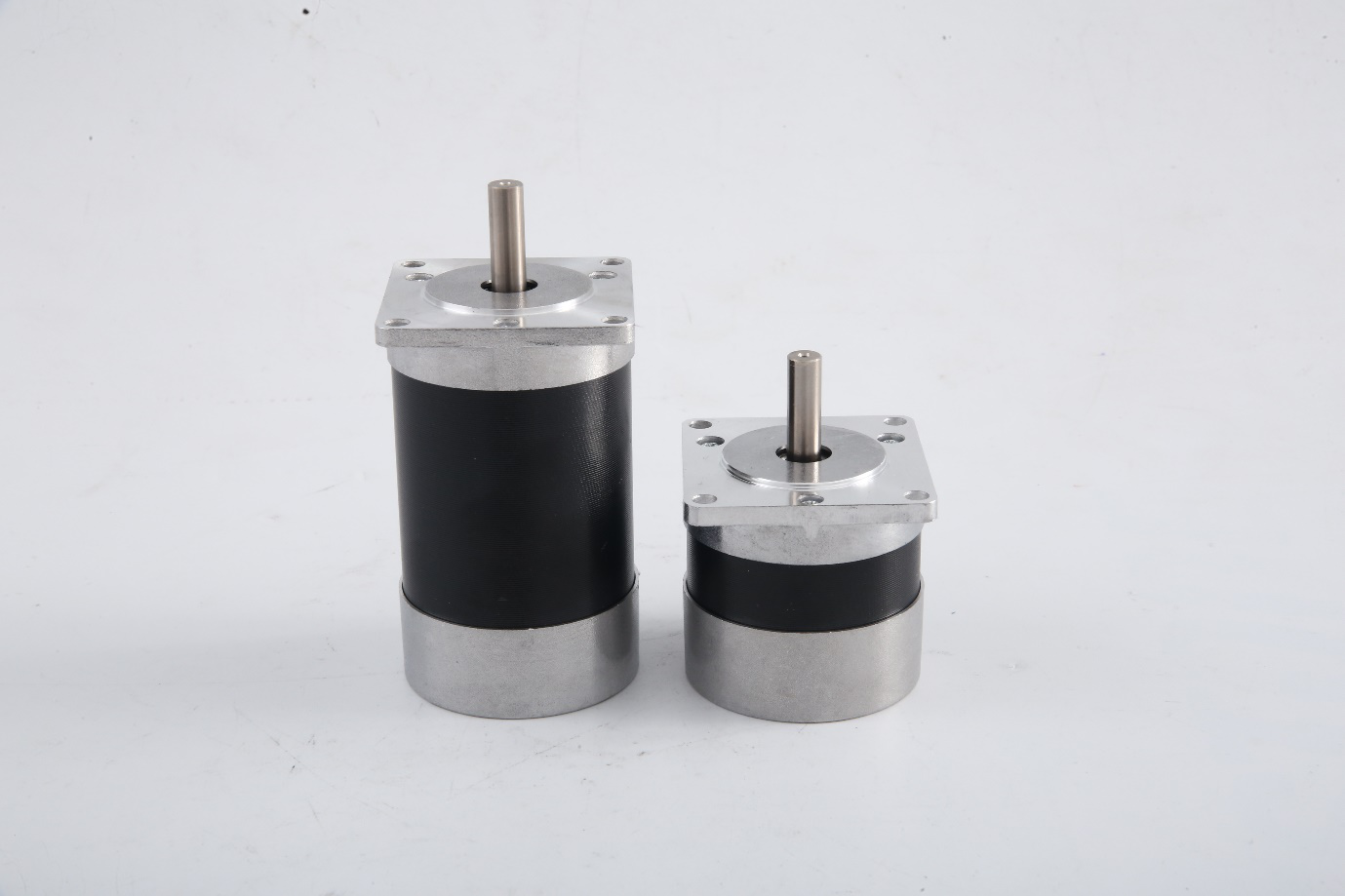

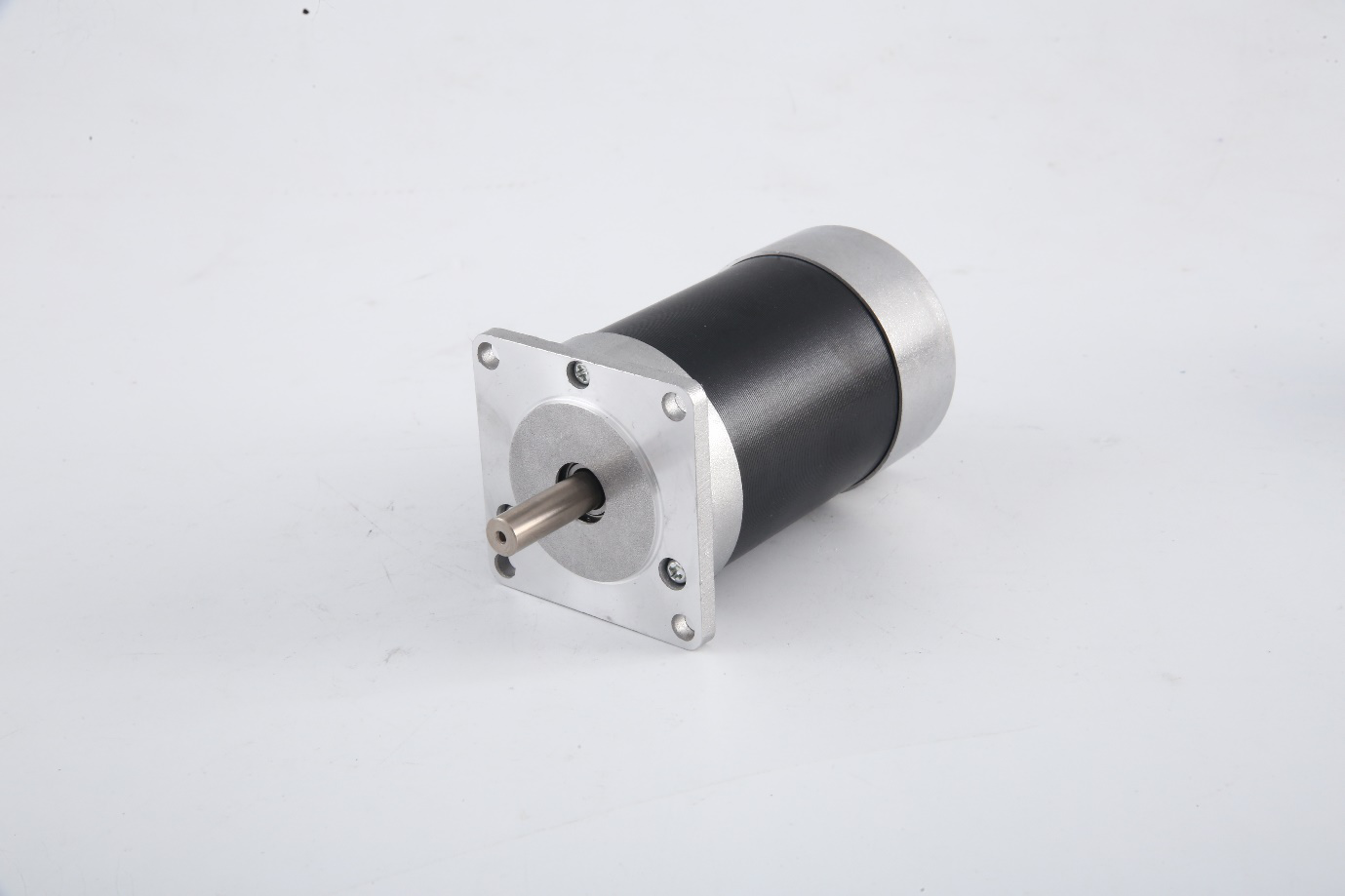

BLDC Motor 57 6p Series
SHINE
20221159
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Environment: -30°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Model | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG57DMW20HS | 24 | 4700 | 0.5 | 0.2 | 3500 | 4 | 70 |
| SG57DMW35HS | 24 | 4700 | 0.6 | 0.37 | 3500 | 7.5 | 135 |
| SG57DMW70HS | 24 | 4700 | 0.7 | 0.7 | 3500 | 14 | 255 |

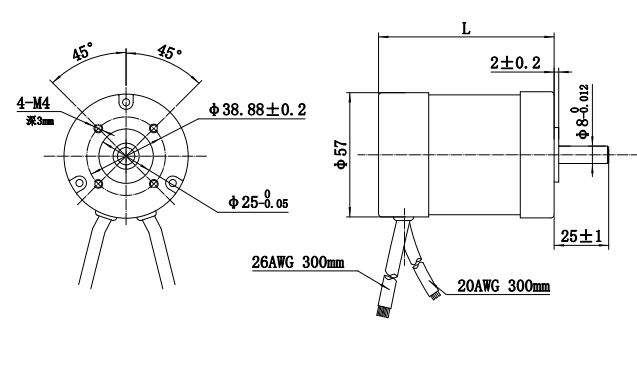

Two. Dimensions
| Model | L |
| G57DMW20HS | 54 |
| SG57DMW35HS | 69 |
| SG57DMW70HS | 110 |
Three. Remarks
1. The out-of-shaft can be customized, the diameter range is 6-12mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, can be equipped with various brakes/encoders/synchronous wheels, etc.
4. It can be combined with the drive
