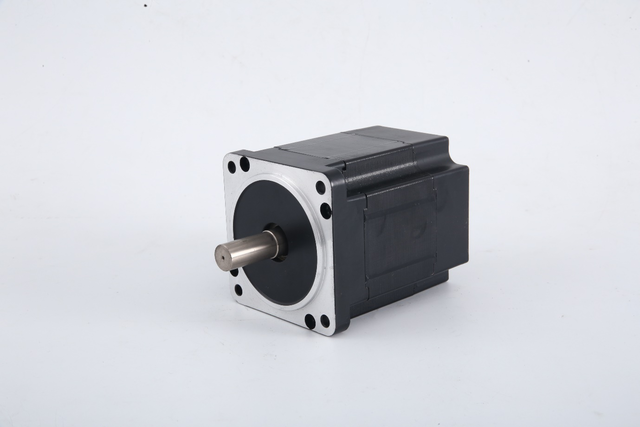

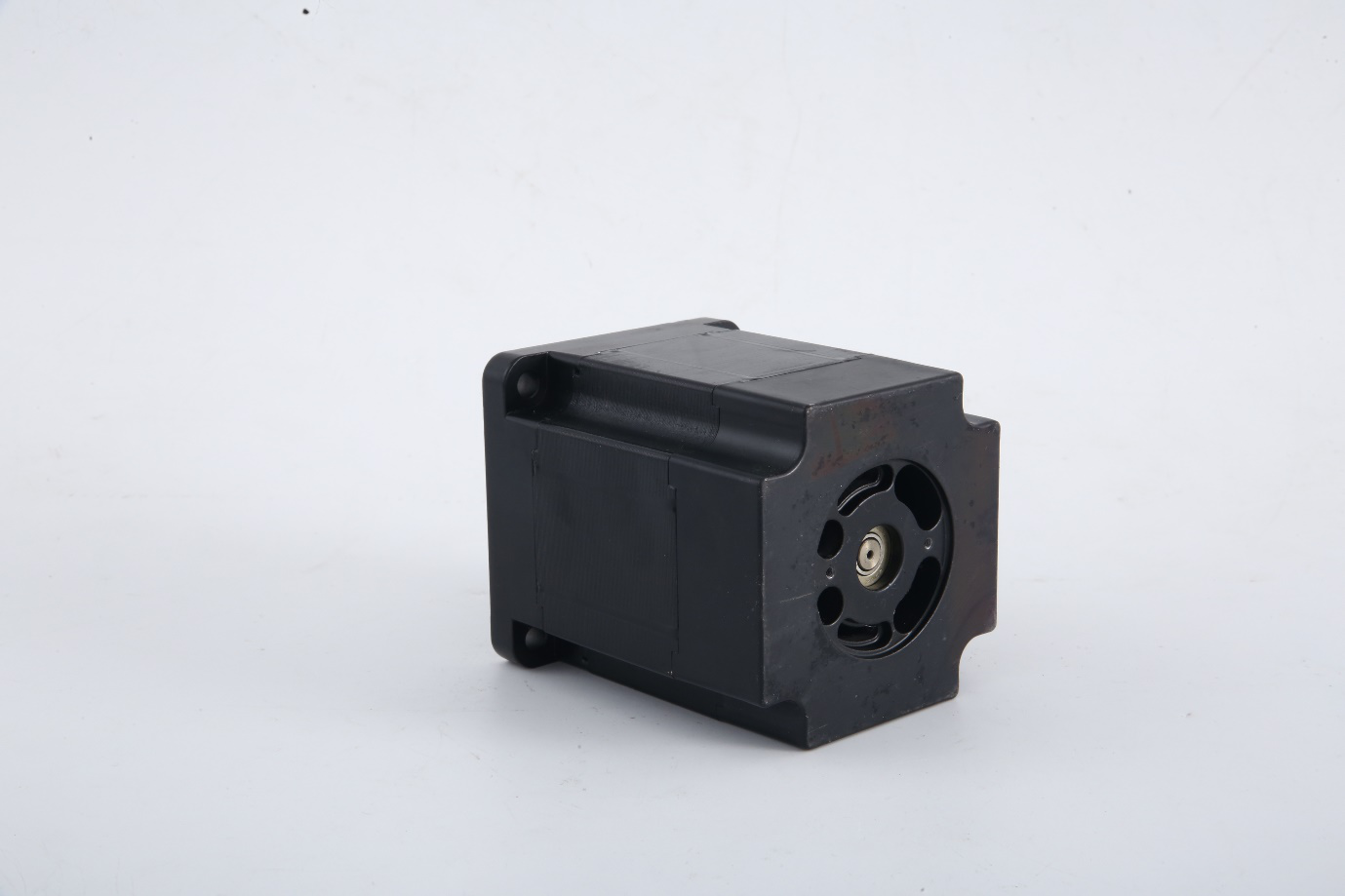

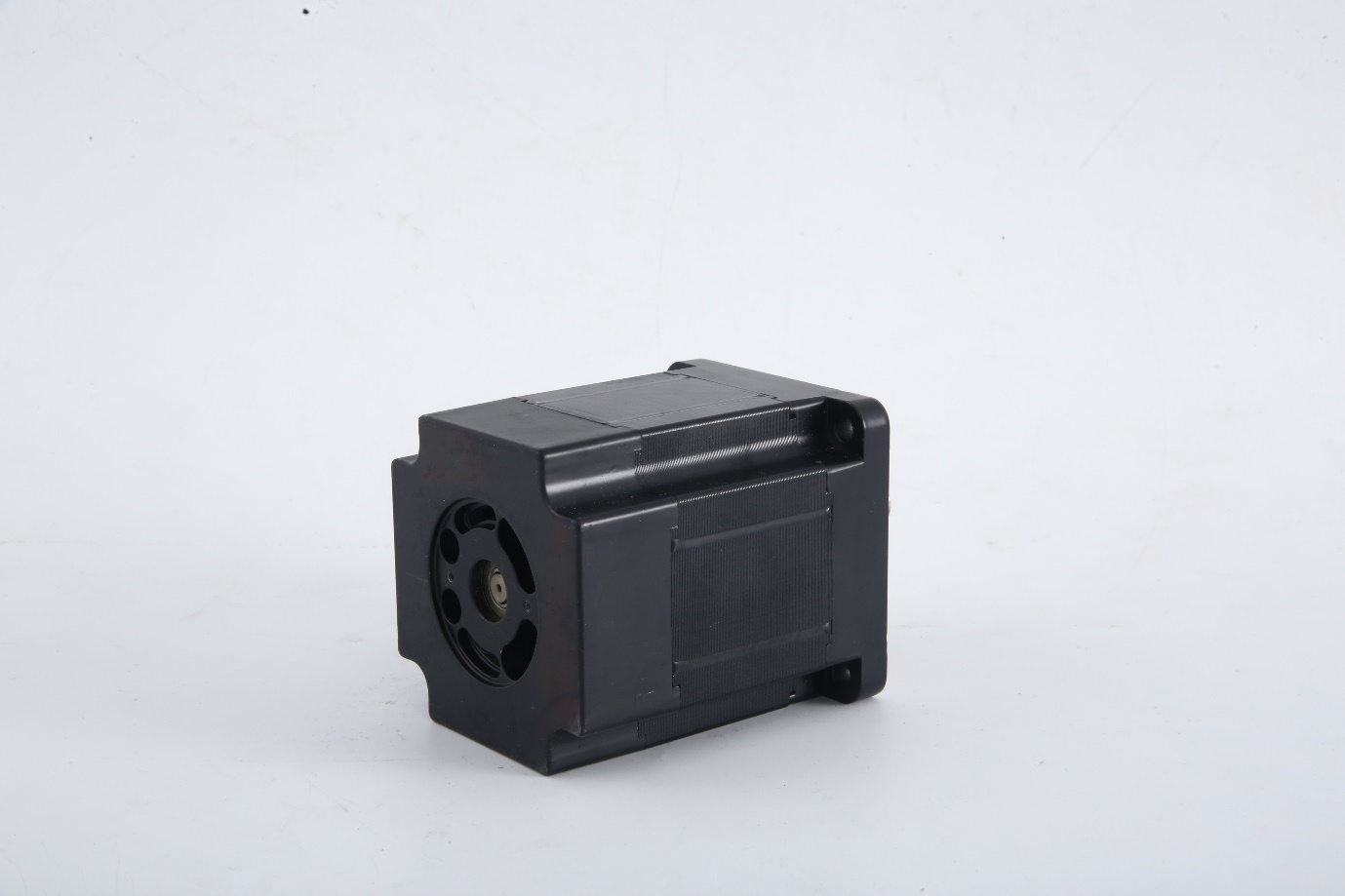

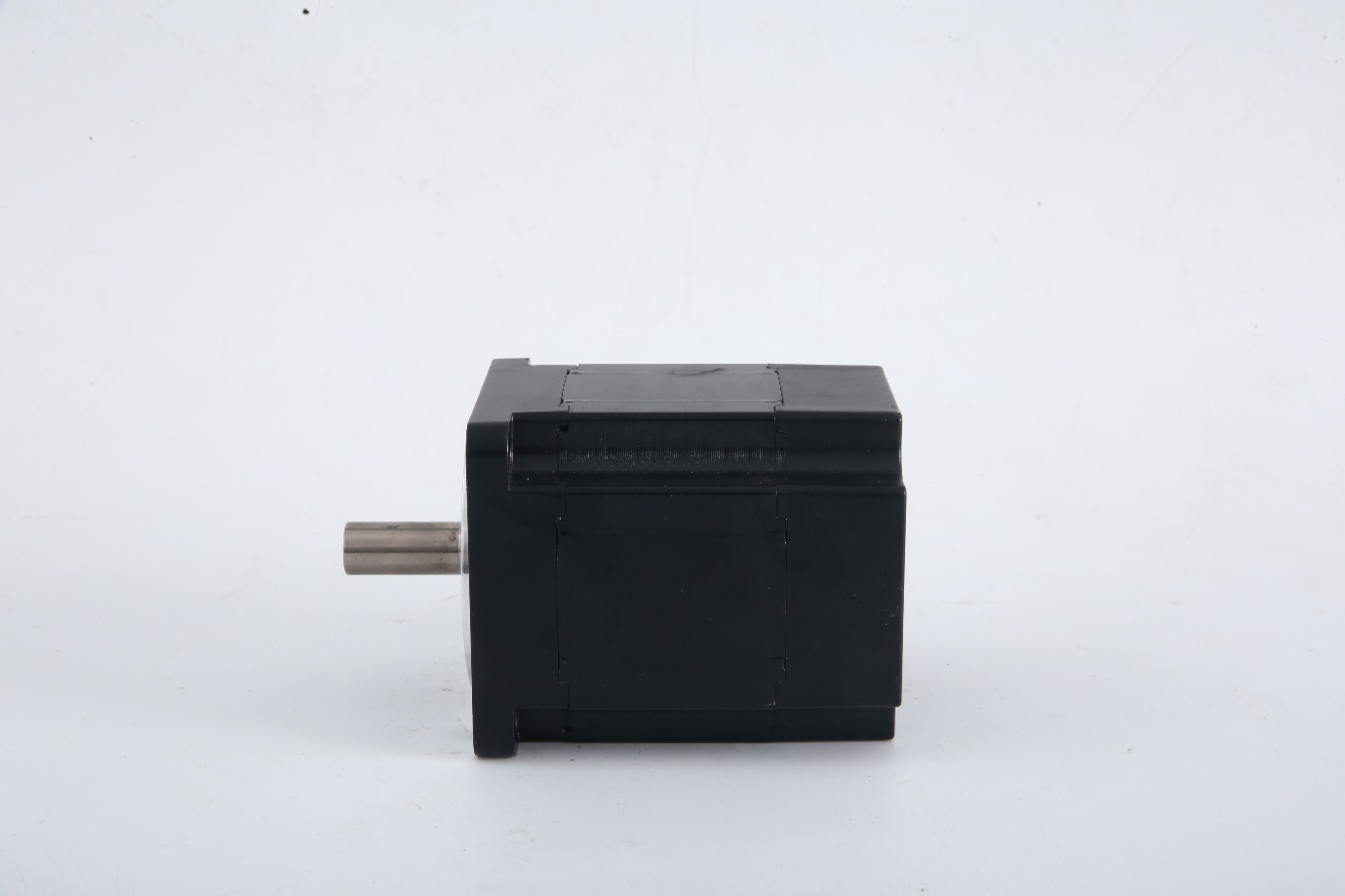

86 Series BLDC Motor
SHINE
20221163
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Usage environment: -10°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.

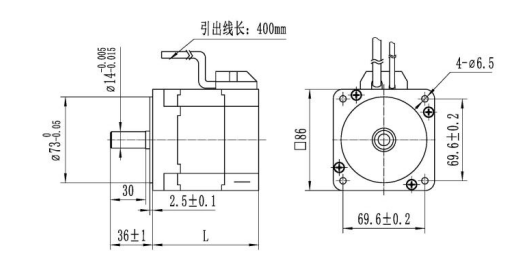

| Model | Voltage | No-Load Speed | No-Load Current | Rated Torque | Rated Speed | Rated Current | Power | Dimension L |
|---|---|---|---|---|---|---|---|---|
| SG86DMW10 | - | - | - | - | - | - | - | 60 |
| SG86DMW20 | 48 | 3500 | 0.6 | 0.7 | 3000 | 5.5 | 210 | 70 |
| SG86DMW30 | 48 | 3500 | 0.8 | 1.1 | 3000 | 9.2 | 350 | 80 |
| SG86DMW40 | 48 | 3500 | 0.9 | 1.5 | 3000 | 12 | 460 | 90 |
| SG86DMW55 | 48 | 3500 | 1.1 | 1.9 | 3000 | 15 | 580 | 105 |
| SG86DMW80 | 48 | 3500 | 1.6 | 2.5 | 3000 | 19.5 | 750 | 130 |
Three. Remarks
1. The out-of-shaft can be customized, with a diameter range of 8-15mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc
