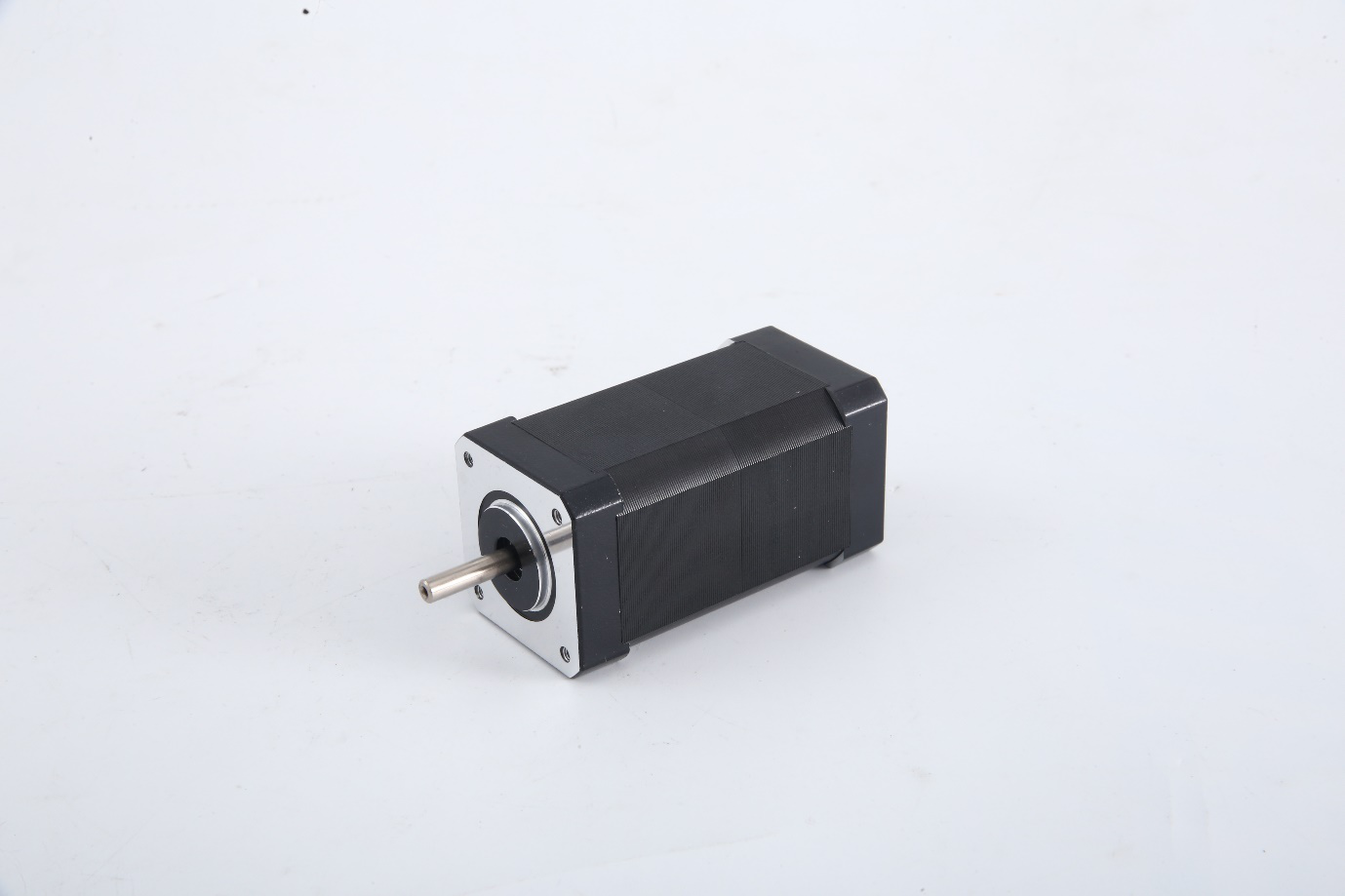

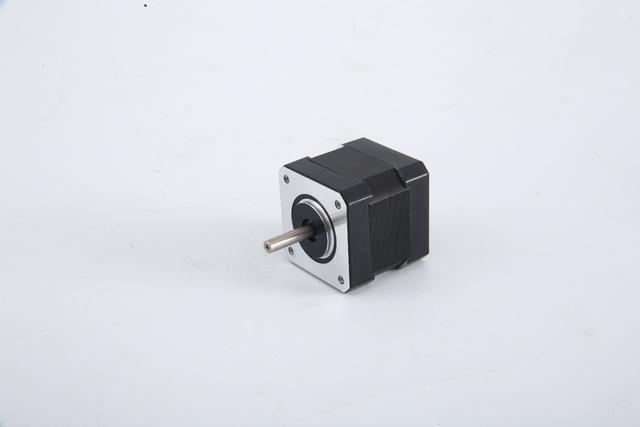

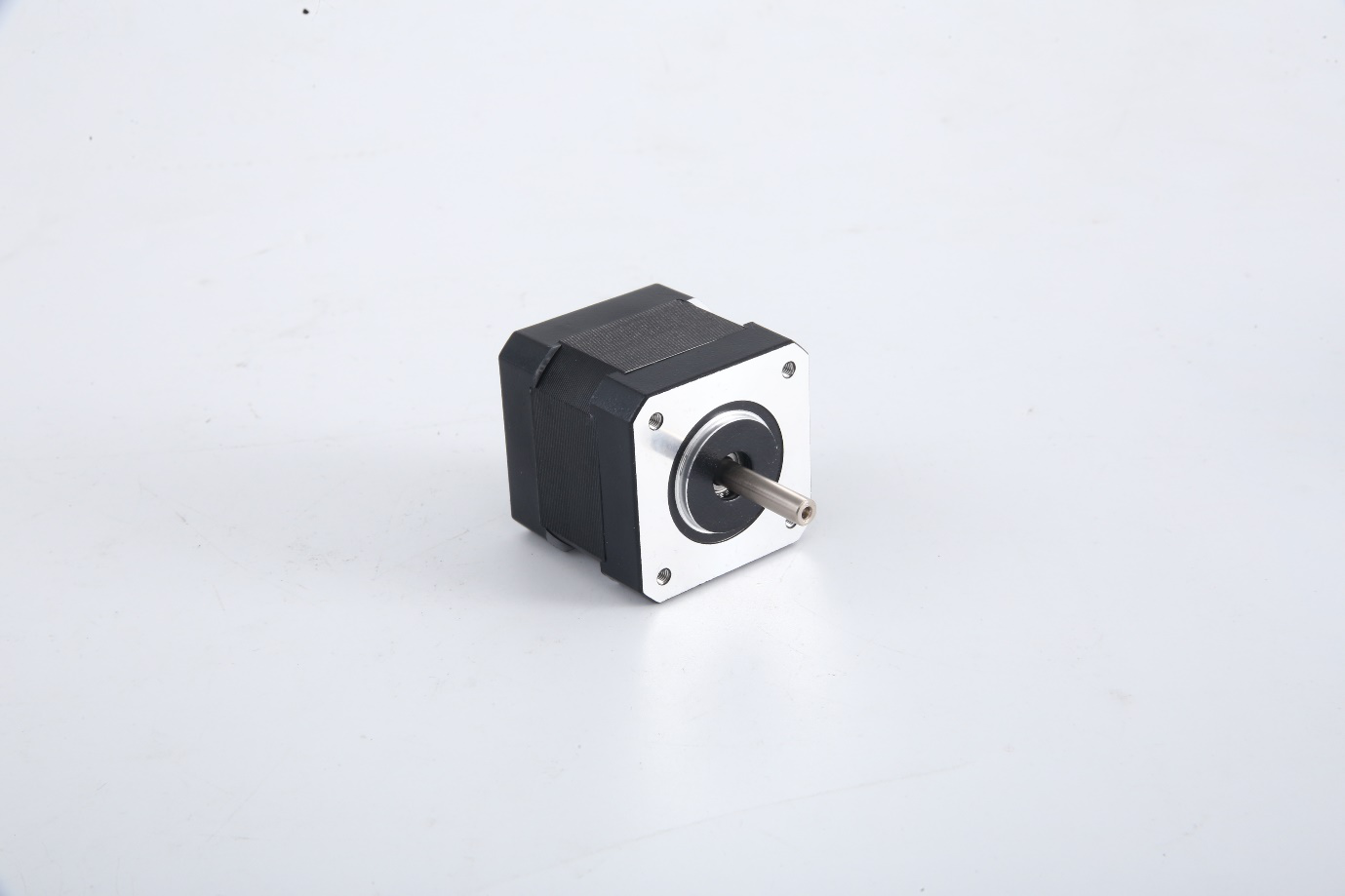

BLDC Motor 42 Series
SHINE
20221157
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Environment: -30°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Mode | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG42DMW20 | 24 | 5000 | 0.4 | 0.063 | 4000 | 1.4 | 25 |
| SG42DMW30 | 24 | 5000 | 0.5 | 0.096 | 4000 | 1.7 | 30 |
| SG42DMW40 | 24 | 5000 | 0.6 | 0.125 | 4000 | 2.8 | 50 |
| SG42DMW60 | 24 | 5000 | 0.7 | 0.18 | 4000 | 4.2 | 75 |
| SG42DMW80 | 24 | 5000 | 0.8 | 0.25 | 4000 | 5.6 | 100 |

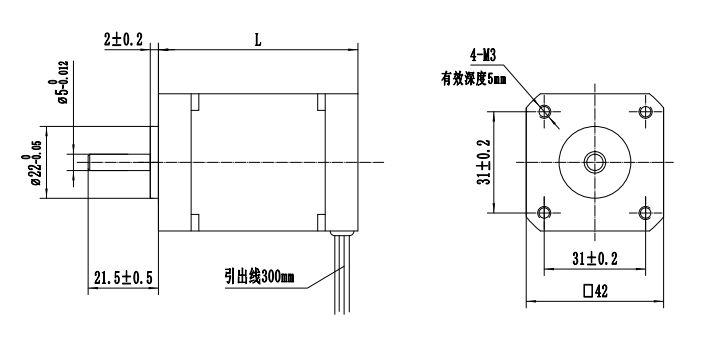

Two. Dimensions
| Model | L |
| SG42DMW20 | 41 |
| SG42DMW30 | 51 |
| SG42DMW40 | 61 |
| SG42DMW60 | 81 |
| SG42DMW80 | 101 |
Three. Remarks
1. The out-of-shaft can be customized, the rear out-of-shaft can be added, and the diameter range is 4-8mm
2. The voltage/speed can be customized according to the requirements
3. It can be equipped with various types of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc.
4. It can be combined with the drive
