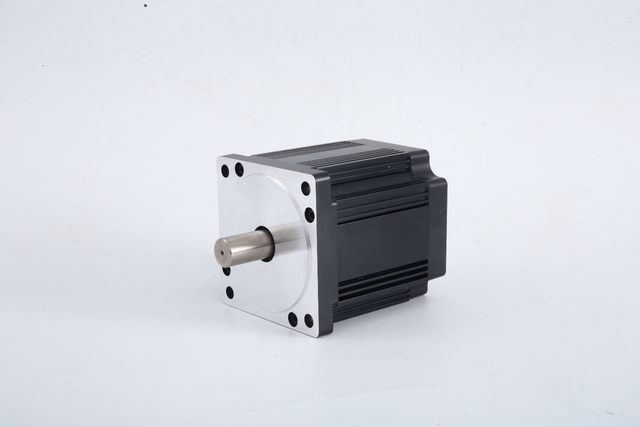

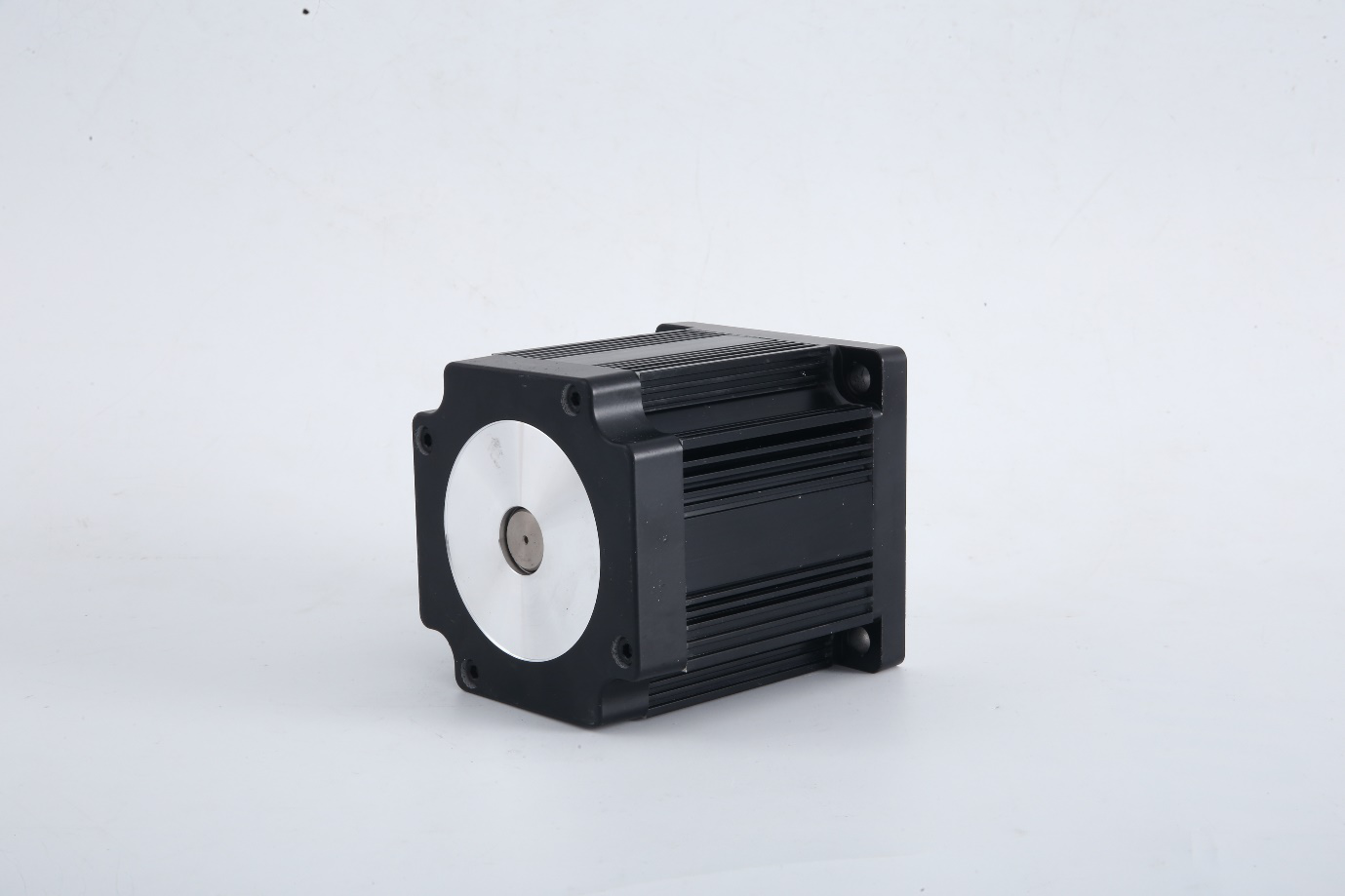

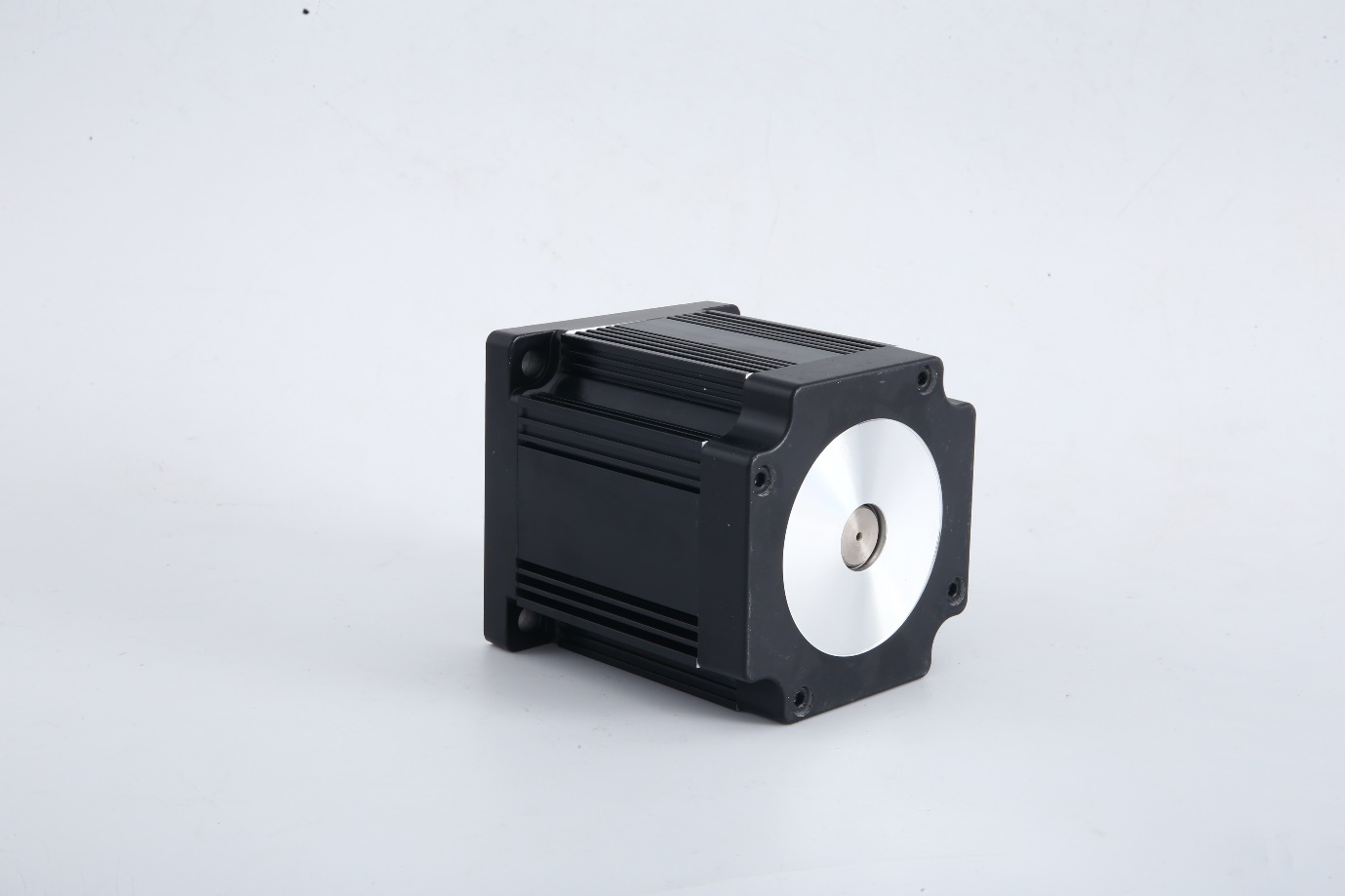

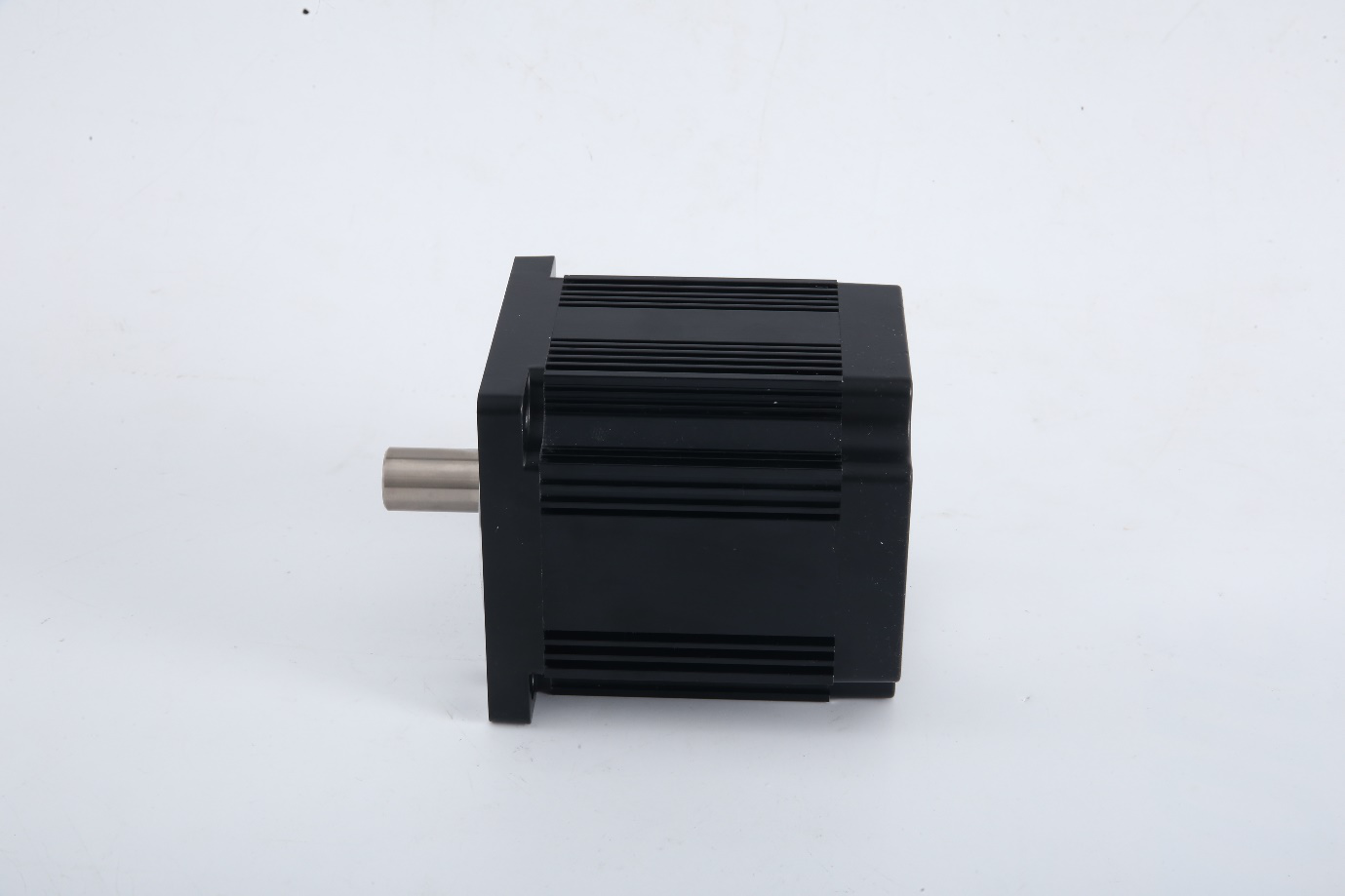

110 Series BLDC Motor
SHINE
20221164
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Usage environment: -10°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Model | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG110DMW30 | 48 | 3500 | 0.8 | 1.7 | 3000 | 13 | 550 |
| SG110DMW60 | 48 | 3500 | 1.3 | 3.3 | 3000 | 26 | 1000 |
| SG110DMW90 | 48 | 3500 | 2.5 | 5 | 3000 | 39 | 1500 |
| SG110DMW120 | 48 | 3500 | 3 | 6.6 | 3000 | 52 | 2000 |

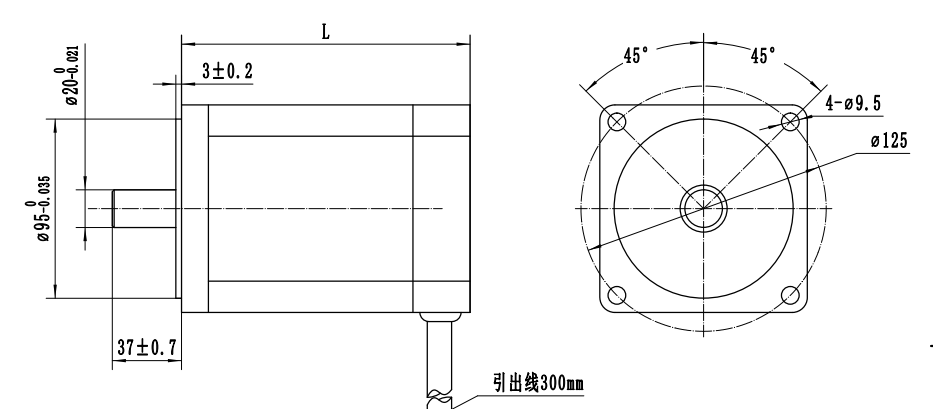

Two. Dimensions
| Model | L |
| SG110DMW30 | 93 |
| SG110DMW60 | 123 |
| SG110DMW90 | 153 |
| SG110DMW120 | 183 |
Three. Remarks
1. The out-of-shaft can be customized, with a diameter range of 8-15mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc
