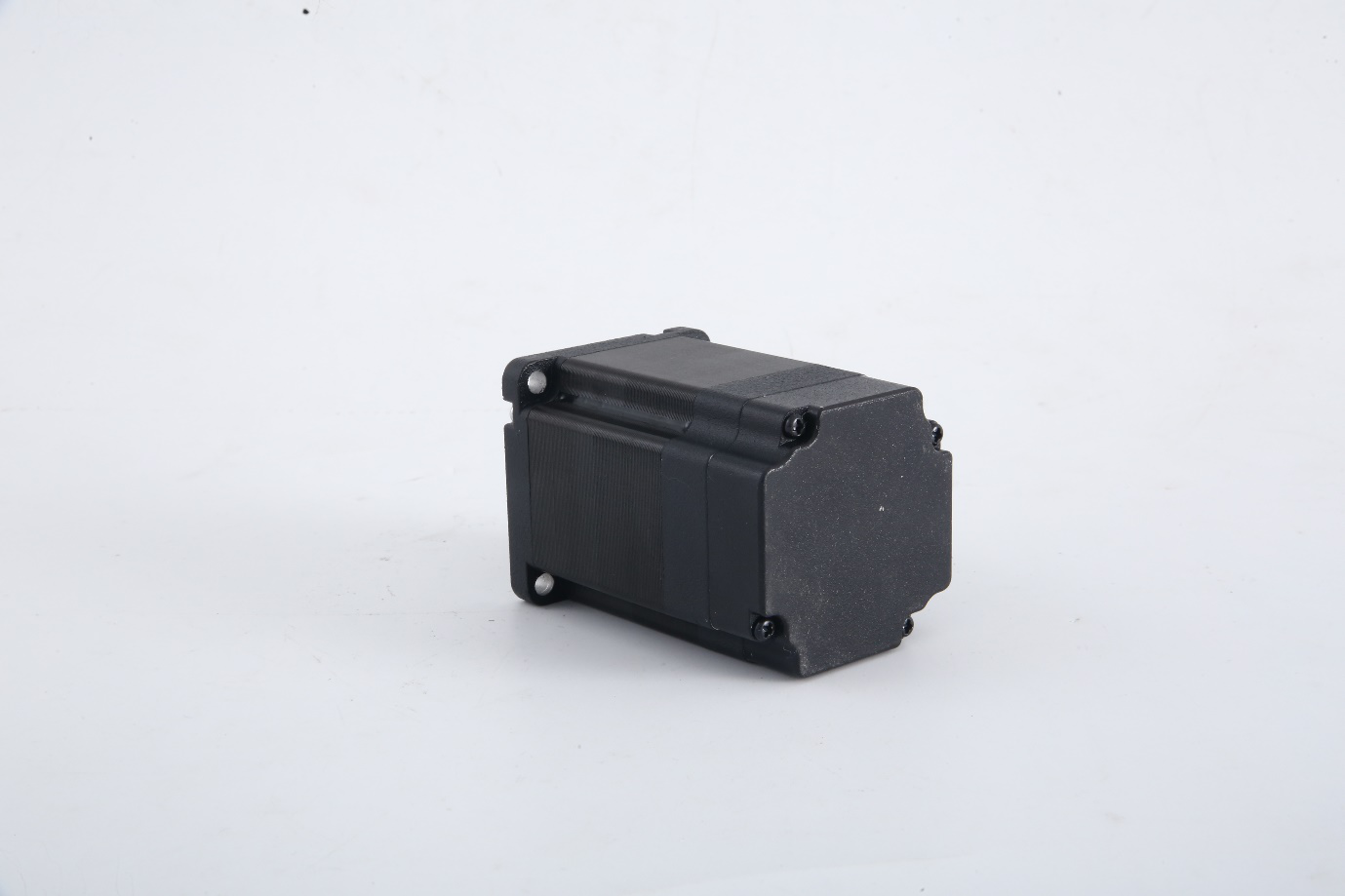

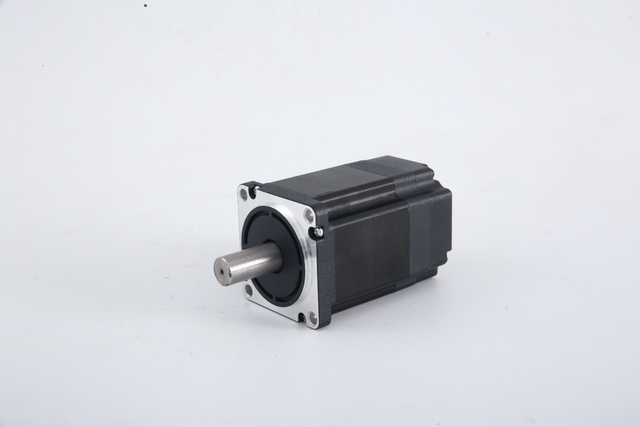

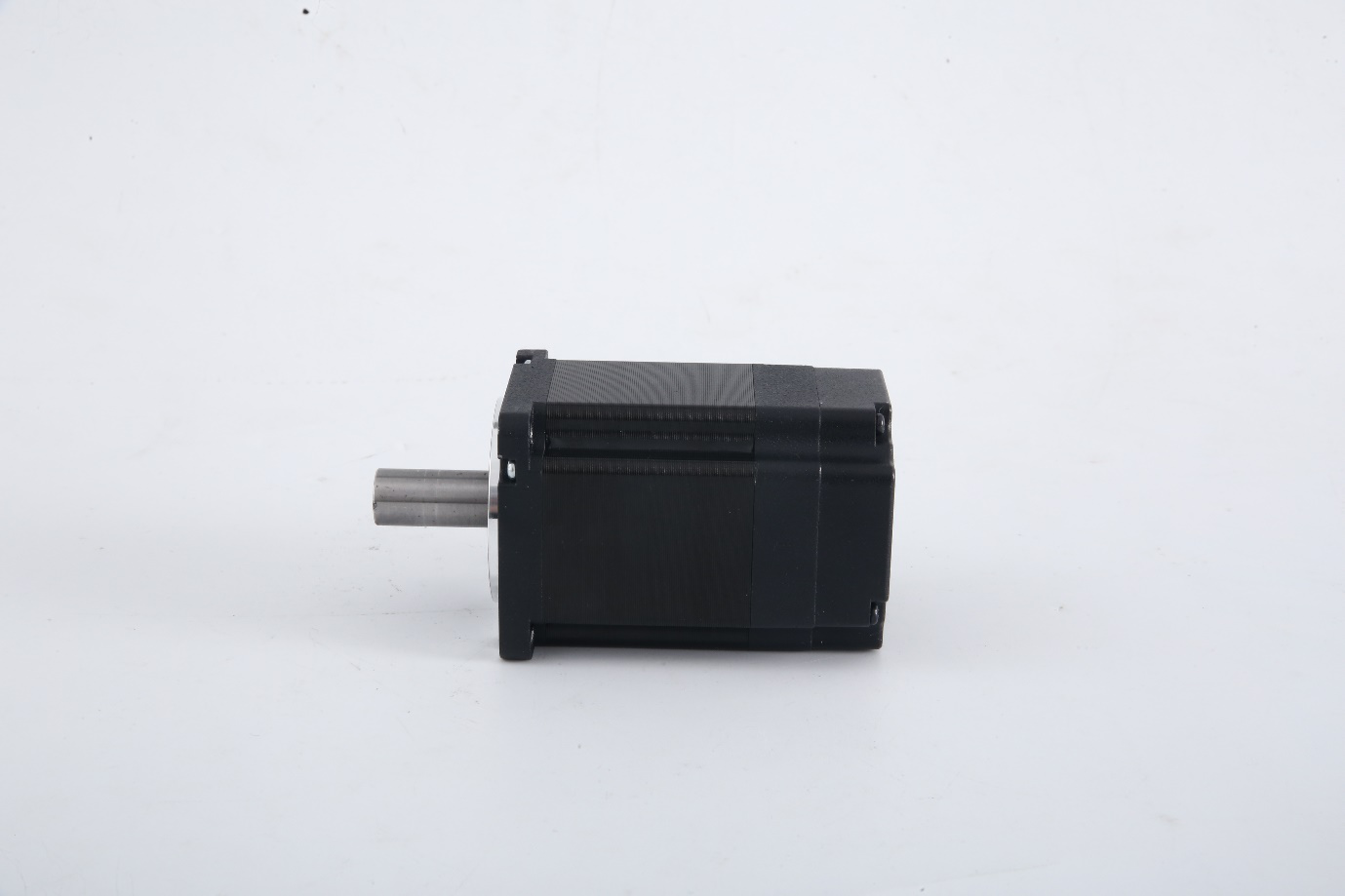

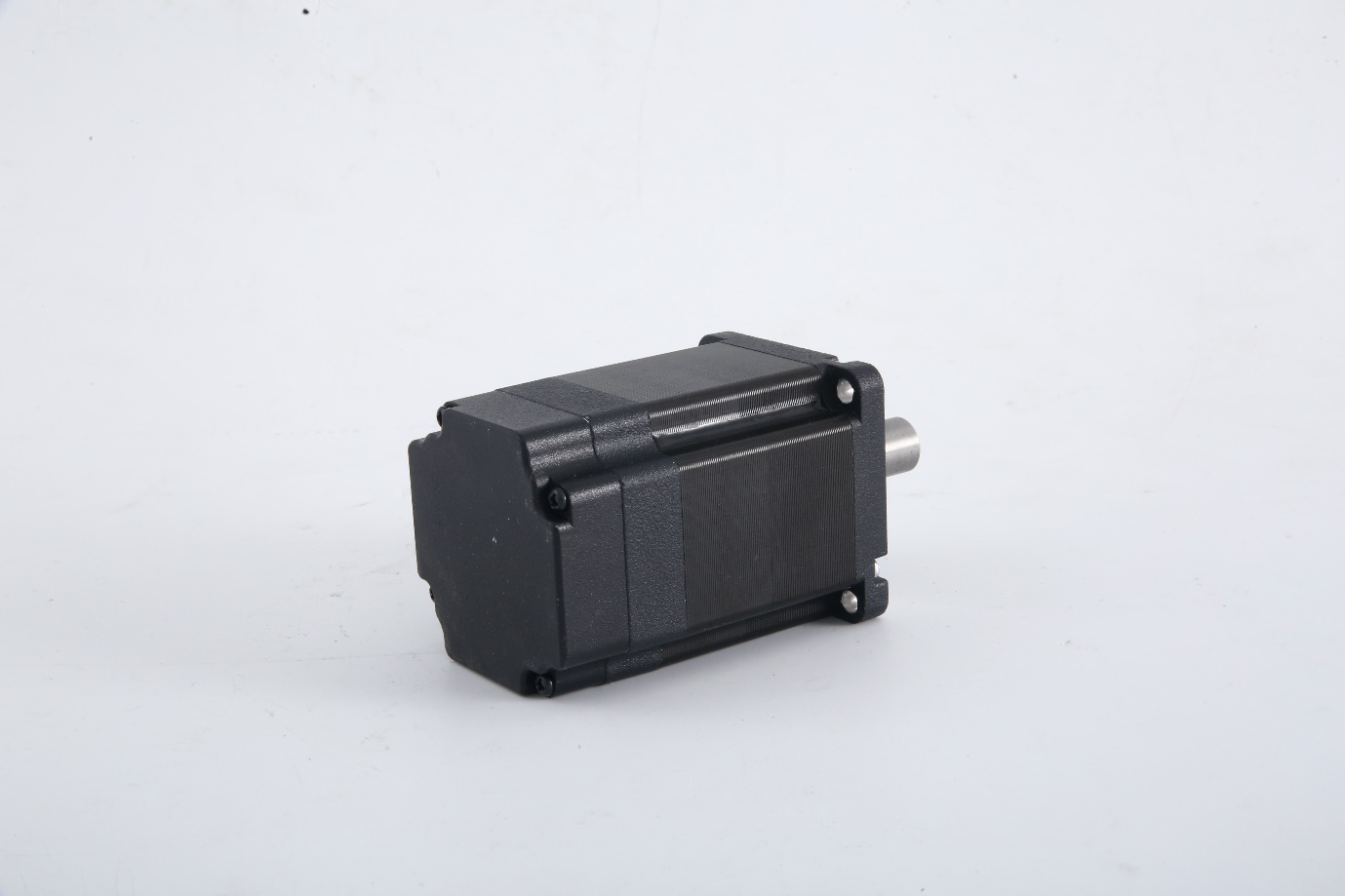

70 Series BLDC Motor
SHINE
20221161
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Environment: -30°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Model | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG70DMW22 | 36 | 4000 | 0.8 | 0.6 | 3000 | 7 | 190 |
| SG70DMW42 | 36 | 4000 | 1 | 1 | 3000 | 11 | 300 |
| SG70DMW62 | 36 | 4000 | 1.3 | 1.4 | 3000 | 15.5 | 430 |
| SG70DMW72 | 36 | 4000 | 1.3 | 1.6 | 3000 | 19 | 530 |

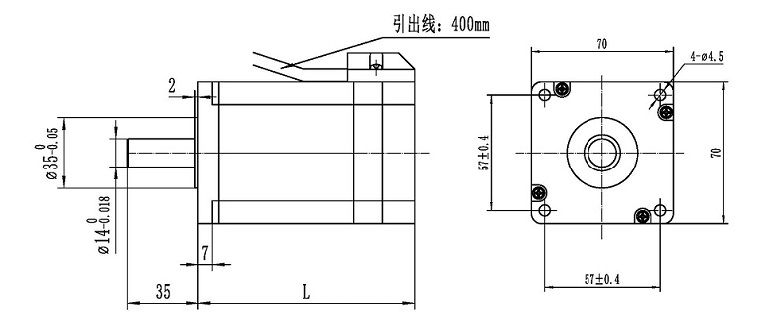

Two. Dimensions
| Model | L |
| SG70DMW22 | 70 |
| SG70DMW42 | 90 |
| SG70DMW62 | 110 |
| SG70DMW72 | 120 |
Three. Remarks
1. The out-of-shaft can be customized, with a diameter range of 8-15mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc
