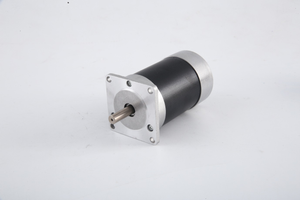

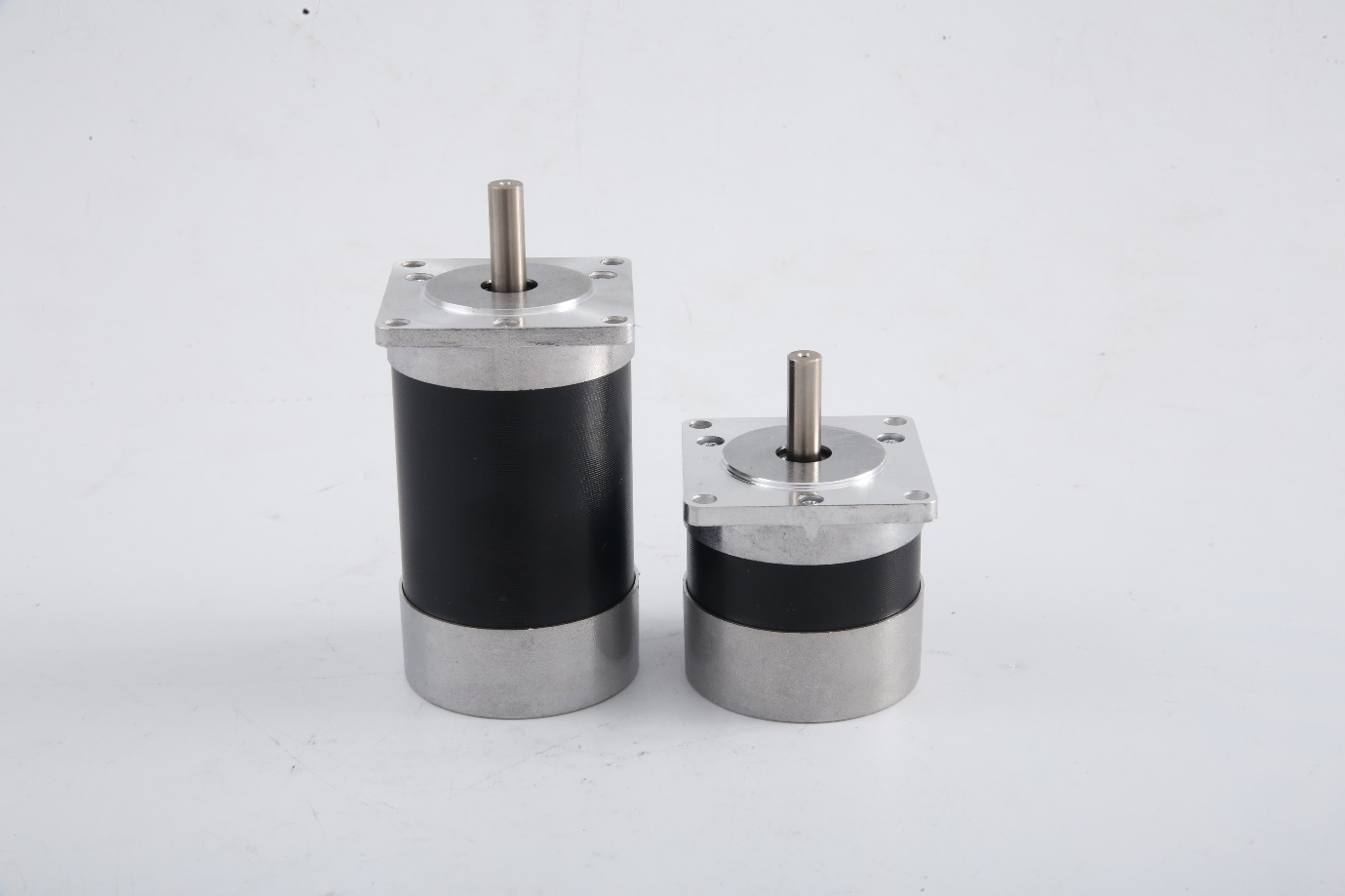

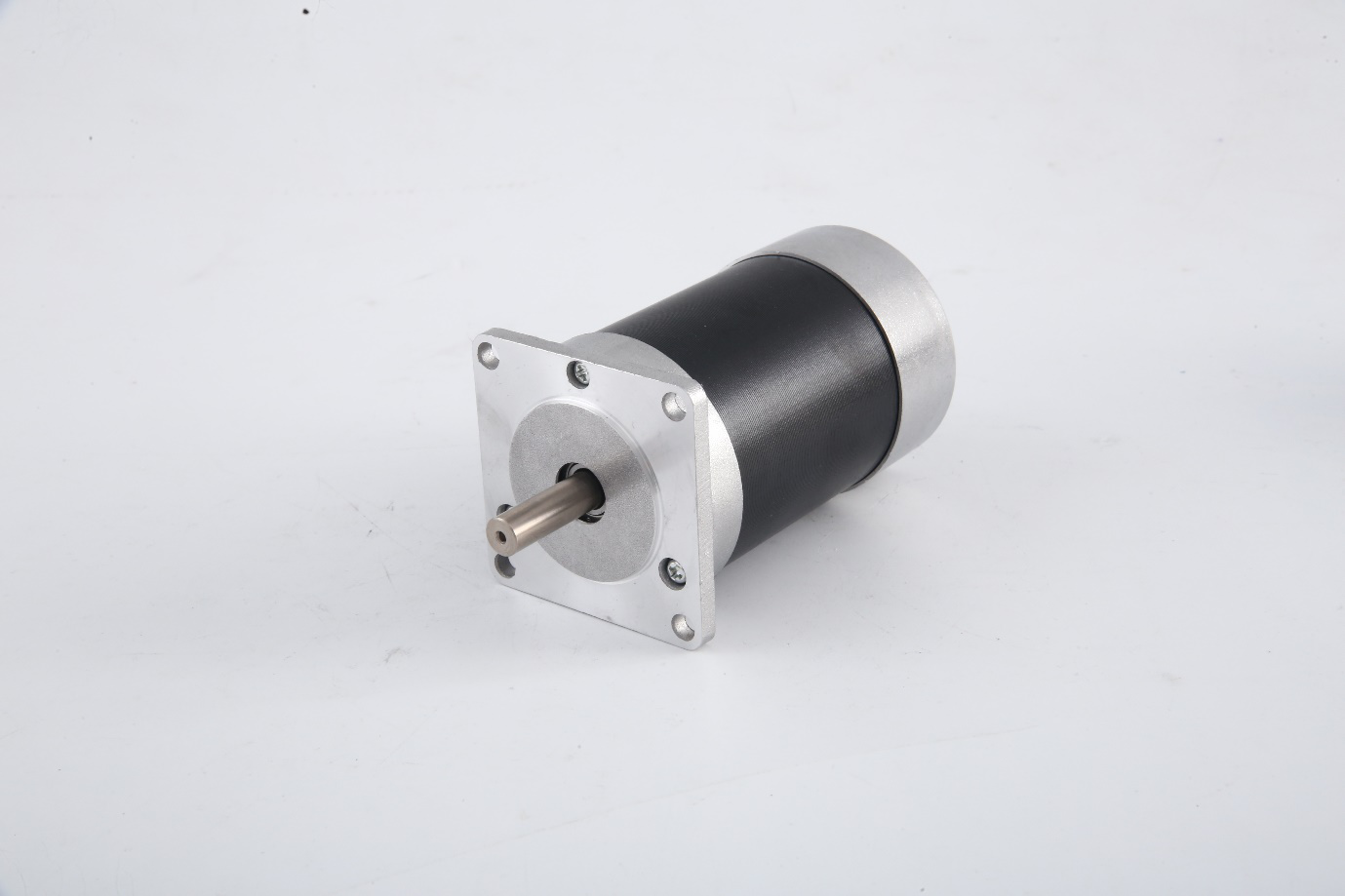

BLDC Motor 57 Series
SHINE
20221158
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Environment: -30°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Model | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG57DMW10 | 24 | 5000 | 0.4 | 0.055 | 4000 | 1.4 | 25 |
| SG57DMW20 | 24 | 5000 | 0.5 | 0.11 | 4000 | 2.5 | 45 |
| SG57DMW40 | 24 | 5000 | 0.6 | 0.22 | 4000 | 5 | 90 |
| SG57DMW60 | 24 | 5000 | 0.7 | 0.32 | 4000 | 7.2 | 130 |
| SG57DMW80 | 24 | 5000 | 0.8 | 0.43 | 4000 | 10 | 180 |

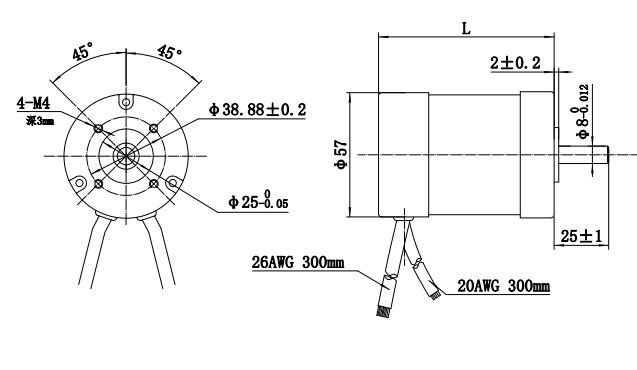

Two. Dimensions
| Model | L |
| 57DMW10 | 45 |
| 57DMW20 | 55 |
| 57DMW40 | 75 |
| 57DMW60 | 95 |
| 57DMW80 | 115 |
Three. Remarks
1. The shaft can be customized, with a diameter range of 4-8mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc.
4. It can be combined with the drive
