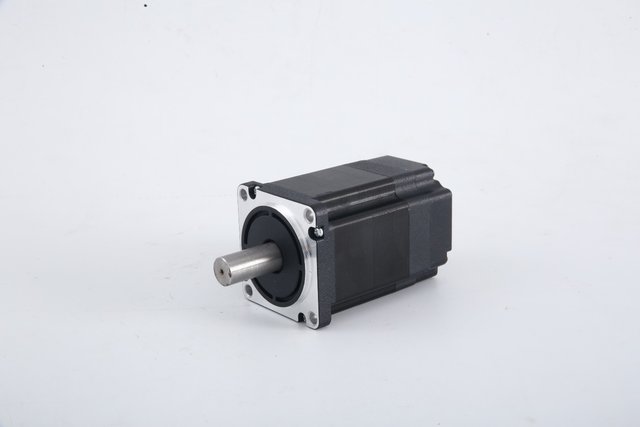

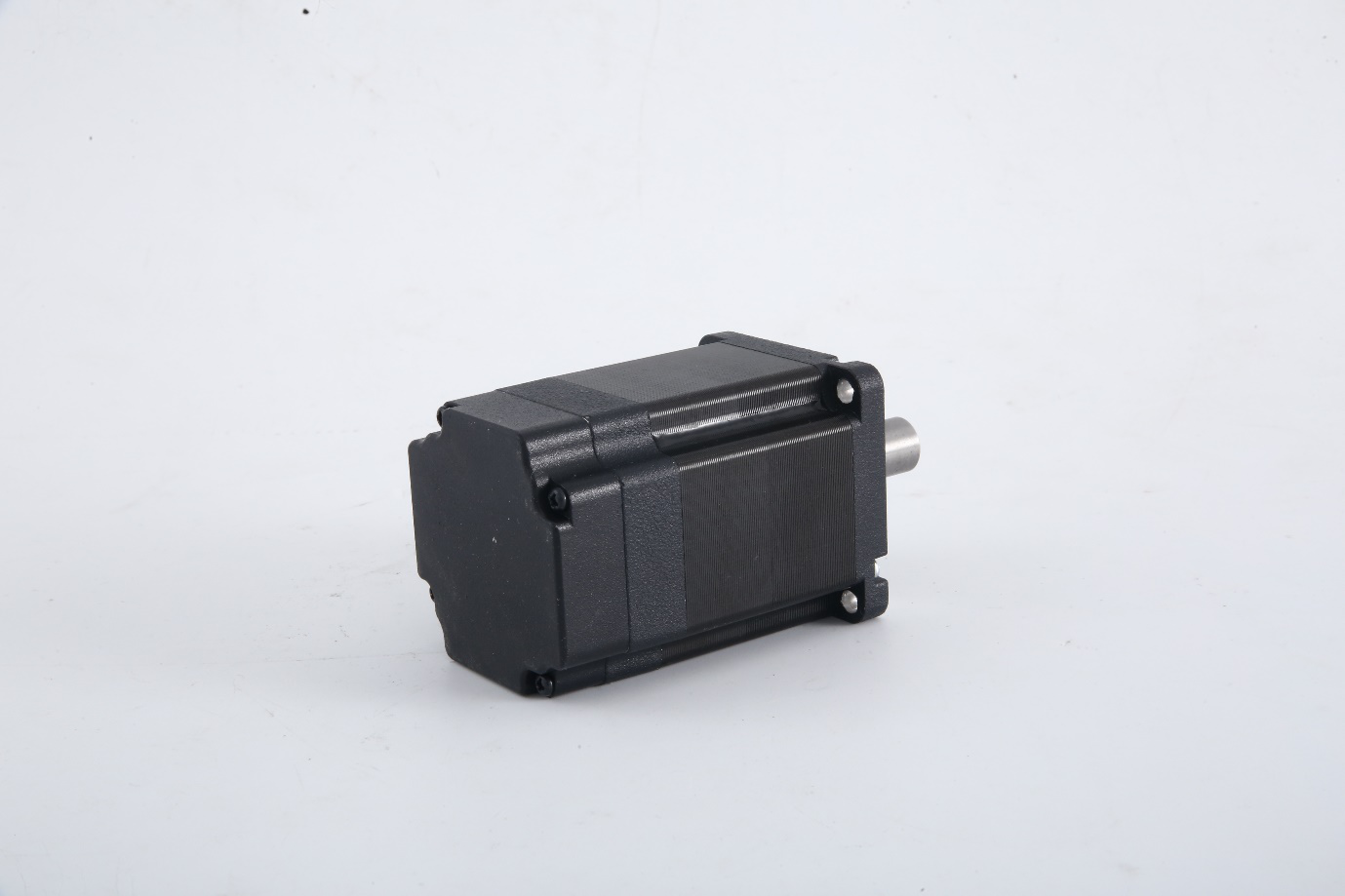

60 Series BLDC Motor
SHINE
20221160
Product Description
Technical Parameters
Winding Method: Y connection
Hall Distribution Angle: 120 degree electrical angle
Shaft Runout : 0.025mm
Insulation Grade : B
Dielectric Strength : 500VDC for
Environment: -30°C--40°C
It can provide special design such as voltage, performance, stop size and shaft, and can also be equipped with encoders, drives, brake devices, gearboxes and other devices.
One. Performance parameter table
| Model | voltage | No-load speed | No-load current | Rated torque | Rated speed | Rated current | power |
| SG60DMW22 | 24 | 5000 | 0.8 | 0.3 | 4000 | 7.2 | 130 |
| SG60DMW42 | 24 | 5000 | 1 | 0.6 | 4000 | 14 | 250 |
| SG60DMW62 | 24 | 5000 | 1.3 | 0.9 | 4000 | 22 | 370 |

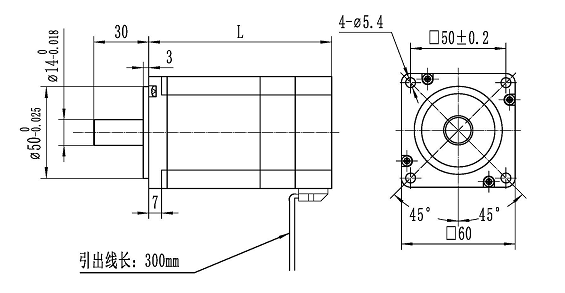

| Model | L |
| SG60DMW22 | 68 |
| SG60DMW42 | 88 |
| SG60DMW62 | 108 |
Three. Remarks
1. The out-of-shaft can be customized, with a diameter range of 8-15mm
2. The voltage speed can be customized according to requirements
3. It can be equipped with all kinds of reduction boxes, and can be equipped with various brakes/encoders/synchronous wheels, etc
