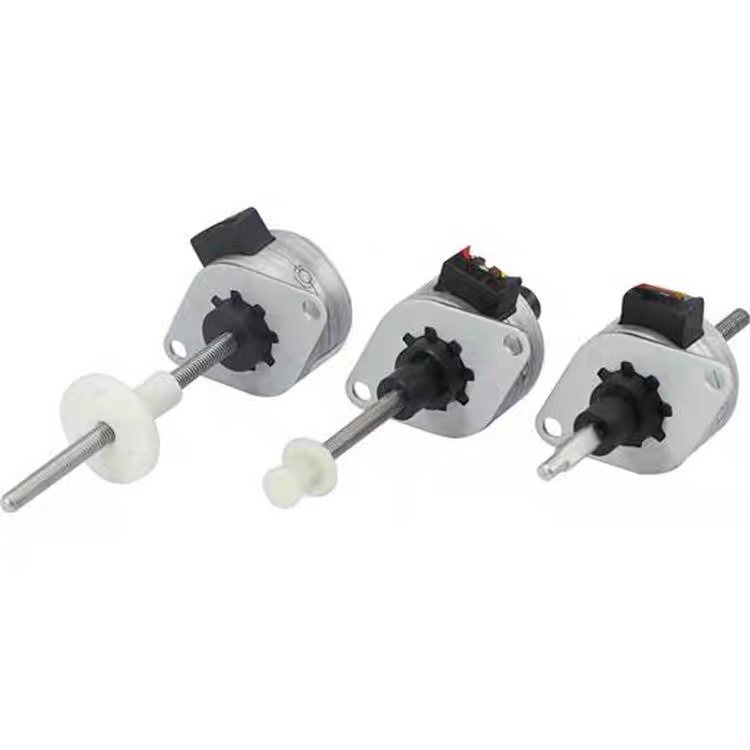

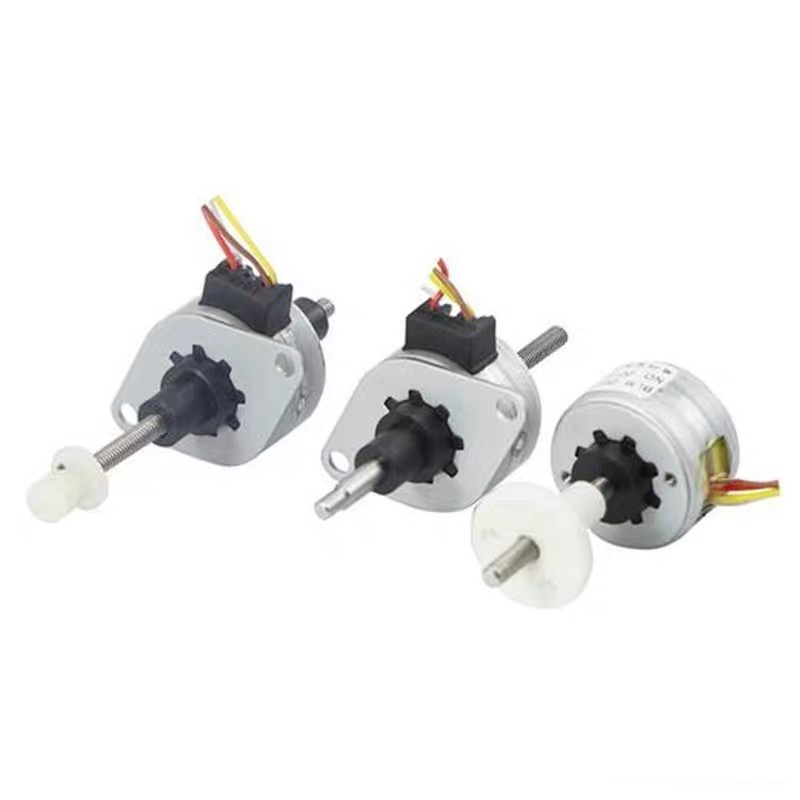

SHZX25BY24H HL Linear Stepper Motor - Precision for Medical/Stage Lighting/Valves

Motor Features & Technical Parameters

The SHZG/SHZW/SHZX25BY24H HL Linear Stepper Motor is designed for high-precision control in medical machines, stage illumination lamps and flow control valves. It ensures stable performance with -10℃—55℃ ambient temperature adaptability, Class E insulation, and 100MΩ MIN insulation resistance under 500V DC.

Notably, SHZG25BY24H01 (originally ZXG25BY24H01) is tested with constant current chopper driver BL-210. Detailed specifications of all models are shown in the table below:

In medical machines, SHZG/SHZW/SHZX25BY24H HL Linear Stepper Motor’s precise step control ensures reliable operation of diagnostic and therapeutic equipment, meeting strict medical precision demands. For stage illumination lamps, its 50.8μm step length and ≥15-30N push torque enable accurate light positioning, creating vivid stage effects.

In flow control valves, it accurately adjusts valve openings to maintain stable fluid flow, suitable for industrial fluid control systems. With -10℃—55℃ temperature adaptability and 40g lightweight design, it fits diverse working environments in target industries, providing consistent and efficient performance.
