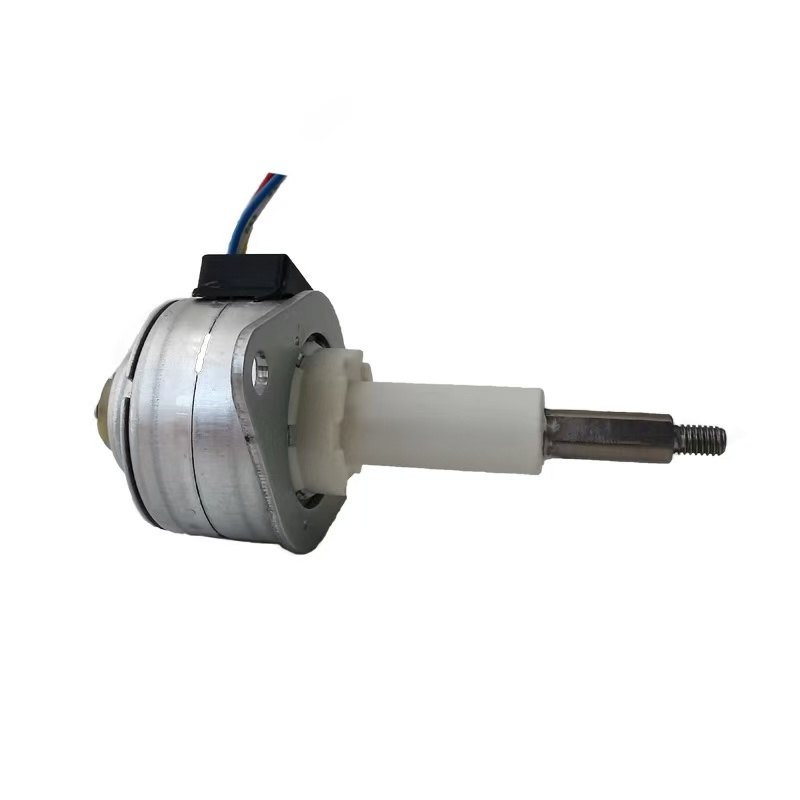

SH-ZXC25BY48H03-L0.6 & SH-ZXD25BY24H02 Stepper Motors - Specs & Applications

Specifications Introduction: SH-ZXC25BY48H03-L0.6 (7.5° step angle) and SH-ZXD25BY24H02 (15° step angle) are 2-phase stepper motors. Featuring different voltage, thrust and step length options, they boast E insulation class and excellent electrical stability, suitable for diverse precision control scenarios.

SH-ZXC25BY48H03-L0.6 and SH-ZXD25BY24H02 are high-performance precision stepper motors tailored for demanding industrial applications. Designed with compact structure and reliable operation, these motors provide accurate position control and consistent thrust output, meeting the strict requirements of automotive, medical, valve control and stage lighting fields. The following specifications table details all key electrical, mechanical and physical parameters for easy reference.

Model	Step Angle (Deg)	No. of Phase	Voltage (V)	Current (A)	Resistance (Ω)	Travel/step (μm)	Thrust (N)	Stroke (mm)	Wdg	Fig	Weight (g)
SH-ZXC25BY48H03-L0.6	7.5	2	24	0.5	15	12.7	≥50(800pps)	50	a	1	40
SH-ZXD25BY24H02	15	2	5	0.38	13	25.4	≥17(250pps)	13	b	2	40

*Note: SH-ZX35BY48H02 is tested with constant current chopper driver BL-210. For detailed technical documents including wiring diagrams (marked as Wdg) and outline drawings (marked as Fig), please contact our sales team to obtain the PDF download link.

SH-ZXC25BY48H03-L0.6 and SH-ZXD25BY24H02 stepper motors are engineered to adapt to a wide range of harsh and precise application environments. With an operating temperature range of -20℃ to +55℃, they can stably work in low-temperature automotive engine compartments and high-temperature medical equipment operation rooms. Equipped with 100MΩ minimum insulation resistance at 500V DC and E insulation class, they ensure safe and reliable operation in electrical systems with strict insulation requirements. Whether applied in vibration-prone automotive scenarios, sterile medical equipment, stable industrial valve control systems or frequently adjusted stage lighting equipment, these motors maintain excellent performance and provide accurate motion control to meet industry high standards.
