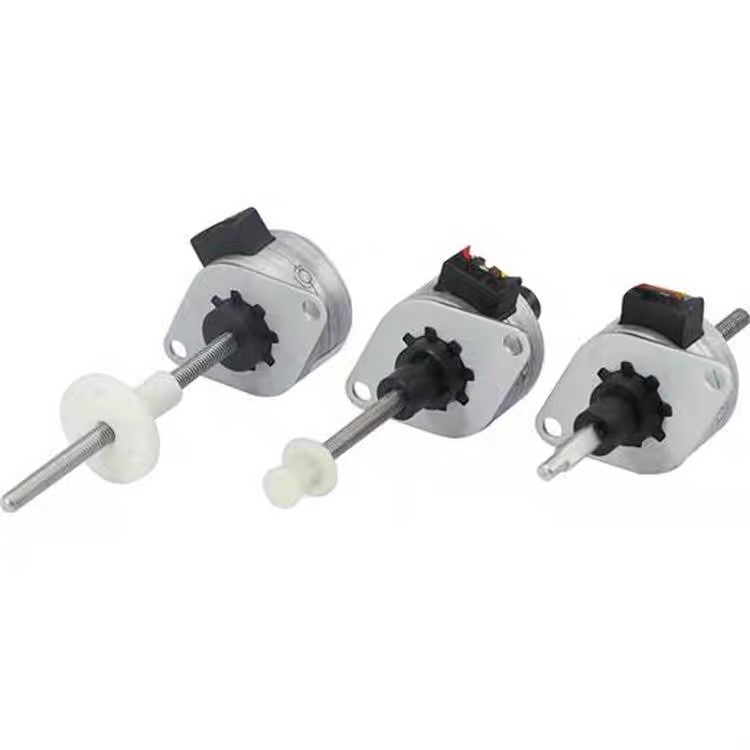

SH-ZG/ZW/ZX25BY48H Stepper Motor - Specifications, Applications & Details

SH-ZG/ZW/ZX25BY48H series stepper motors feature 7.5° step angle, 2-phase design, and excellent insulation performance. They offer different thrust and stroke options to meet diverse industrial needs, with stable operation under various working conditions.

Model:
SH-ZG/ZW/ZX25BY48H
Code:
20251220


Availability:



Inquiry

Product Description

Product Overview & Specifications

Specifications Introduction: SH-ZG/ZW/ZX25BY48H series stepper motors feature 7.5° step angle, 2-phase design, and excellent insulation performance. They offer different thrust and stroke options to meet diverse industrial needs, with stable operation under various working conditions.

The SH-ZG/ZW/ZX25BY48H series stepper motors are high-performance precision components designed for demanding industrial applications. Characterized by compact structure, reliable operation and excellent environmental adaptability, these motors provide accurate position control and stable thrust output. Below is the detailed specifications table of the series products, covering key parameters such as electrical performance, mechanical characteristics and physical dimensions.

20172915530987 201729155254818

Model	Step Angle (Deg)	No. of Phase	Volt. (V)	Current (A)	Resistance (Ω)	Lead (mm)	Travel/step (μm)	Thrust (N)	Stroke (mm)	Fig	Weight (g)
SH-ZG25BY48H01	7.5	2	4.15	0.5	8.3	1.2192	25.4	≥25(700pps)	41	1	40
SH-ZW25BY48H01	7.5	2	4.9	0.5	9.8	1.2192	25.4	≥25(700pps)	30	2	40
SH-ZX25BY48H03-L0.6	7.5	2	4.9	0.29	15	0.6096	12.7	≥14(200pps)	14	3	40
SH-ZX25BY48H11	7.5	2	4.4	0.45	53	1.2192	25.4	≥30(130pps)	14	4	40

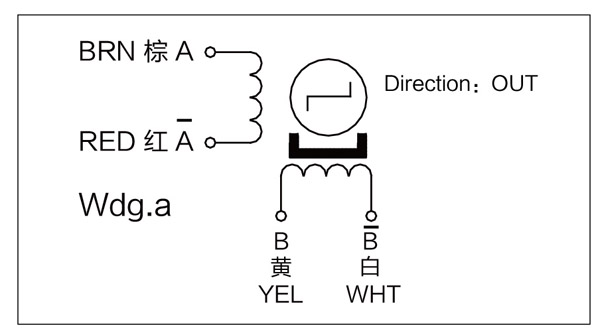

*Note: SH-ZG25BY48H01 and SH-ZW25BY48H01 are tested with constant current chopper driver BL-210. For detailed PDF documents including wiring diagrams and dimensional drawings, please contact our sales team for download.

Application

Application Scope Introduction

In medical machines, SHZG/SHZW/SHZX25BY24H HL Linear Stepper Motor’s precise step control ensures reliable operation of diagnostic and therapeutic equipment, meeting strict medical precision demands. For stage illumination lamps, its 50.8μm step length and ≥15-30N push torque enable accurate light positioning, creating vivid stage effects.

In flow control valves, it accurately adjusts valve openings to maintain stable fluid flow, suitable for industrial fluid control systems. With -10℃—55℃ temperature adaptability and 40g lightweight design, it fits diverse working environments in target industries, providing consistent and efficient performance.
