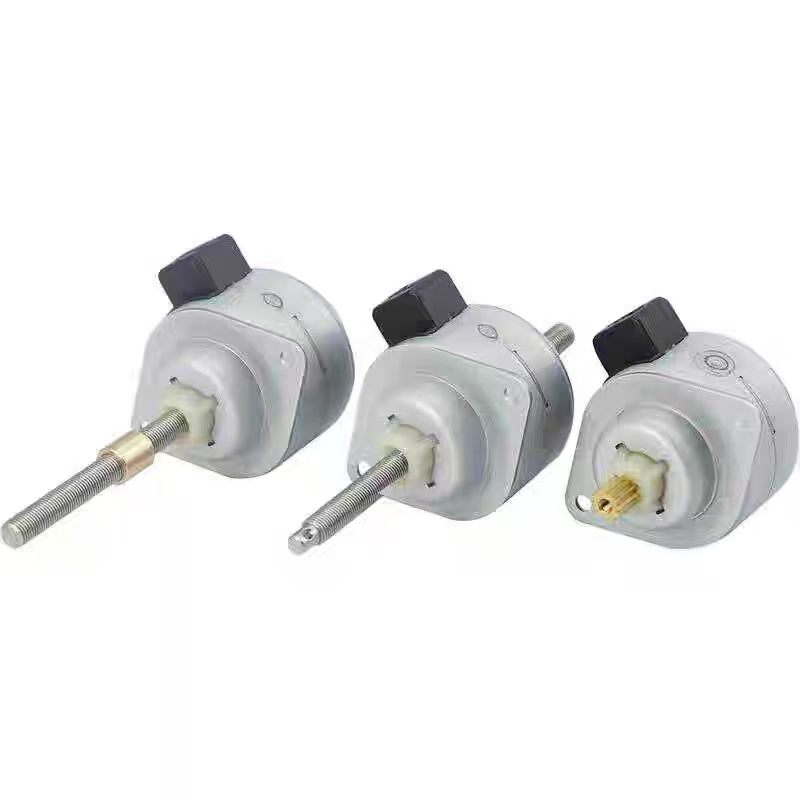

SH-ZXC25BY、SH-ZXD25BY & SH-ZX35BY48H Series Stepper Motors - Specs & Applications

Specifications Introduction: SH-ZXC25BY, SH-ZXD25BY and SH-ZX35BY48H series are 2-phase stepper motors with 7.5° or 15° step angle. Offering diverse voltage, lead, thrust and stroke options, they feature E insulation class and excellent electrical stability, suitable for various precision control scenarios.

SH-ZXC25BY48H03-L0.6, SH-ZXD25BY24H02 and SH-ZX35BY48H series are high-performance precision stepper motors tailored for demanding industrial applications. Designed with compact structure and reliable operation, these motors provide accurate position control and consistent thrust output, meeting the strict requirements of medical equipment, stage lighting and flow control valve fields. The following specifications table details all key electrical, mechanical and physical parameters for easy reference.

Model	Step Angle (Deg)	No. of Phase	Voltage (V)	Current (A)	Resistance (Ω)	Travel/step (μm)	Thrust (N)	Stroke (mm)	Wdg	Fig	Weight (g)
SH-ZXC25BY48H03-L0.6	7.5	2	24	0.5	15	12.7	≥50(800pps)	50	a	1	40
SH-ZXD25BY24H02	15	2	5	0.38	13	25.4	≥17(250pps)	13	b	2	40

*Notes: 1. SH-ZG35BY48H02-L0.6, SH-ZW35BY48H02-L0.6 and SH-ZX35BY48H02-L0.6 are tested with constant current chopper driver BL-210. 2. For detailed technical documents including wiring diagrams (marked as Wdg) and outline drawings (marked as Fig), please contact our sales team to obtain the PDF download link.

SH-ZXC25BY, SH-ZXD25BY and SH-ZX35BY48H series stepper motors are engineered to adapt to a wide range of harsh and precise application environments. With an operating temperature range of -10℃ to 55℃, they can stably work in various conditions from general industrial sites to medical equipment operation rooms. Equipped with 100MΩ minimum insulation resistance at 500V DC and E insulation class, they ensure safe and reliable operation in electrical systems with strict insulation requirements. Whether applied in sterile medical equipment, dynamically adjusted stage lighting or stable industrial flow control valves, these motors maintain excellent performance and provide accurate motion control to meet industry high standards.
